Trending Clicking this link takes you to the Trending feature for this system.
Manager automatically trends each monitored system’s total rectifier
capacity and system load. A linear trend approximation for the plant
capacity and load are also provided. Figure 3-6 shows a sample screen.

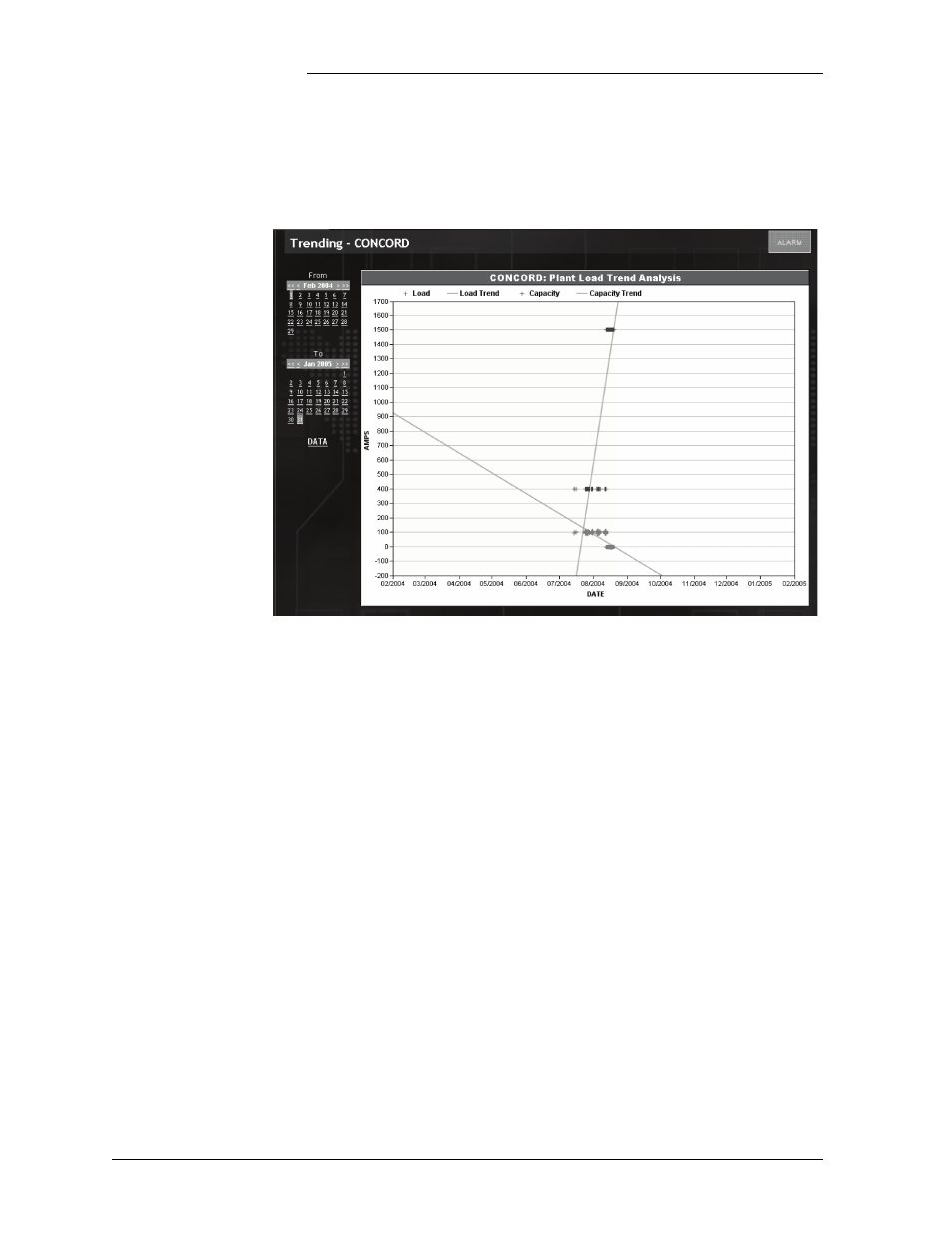

Figure 3-6: Galaxy Manager Trend Data
Manager trending supports filtering based on dates. The displayed trend
plot may be selected by clicking on the calendars at the left of the graph
to select a start date and an end date. The data in the trend plots may be
printed using the DATA button. This data can be exported to a
comma-delineated file for post processing, by right-clicking anywhere
in the data and choosing Export to Microsoft Excel, if your local
computer has Microsoft Excel.
The trend analysis includes an extrapolation of the data by showing a
trend line for both loads and capacities. Note that the portion of the
graph in yellow indicates time that has already passed; the white portion
of the graph indicates time in the future.
