Galaxy Manager
3 - 6 User Screens Issue 4.3 Preliminary January 2004
Site List Screen
Link
Clicking this link shows a list of all managed sites in alphabetical order.
Clicking a site link in the list displays the site’s information page. For
sites with more than one managed system, the sites’ individual
descriptions are displayed. The appropriate site symbol dot is shown for
each site listed. Those actively monitored will provide the alarm status
for the system.
System Information Page

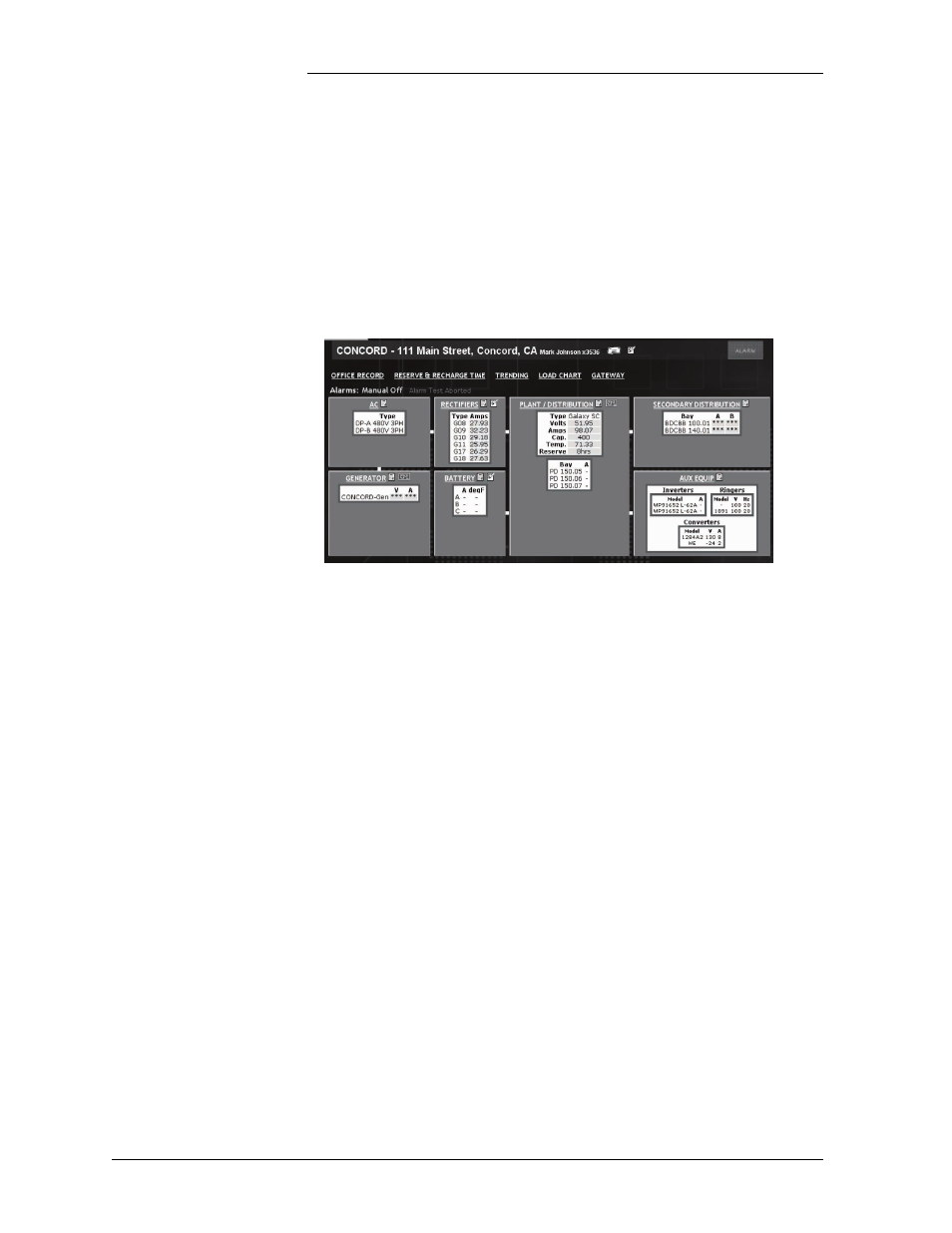

Figure 3-5: Concord System Data
The System Information screen provides a block-level view of the
managed power system. Each block shows its key parameters. Clicking
on a link in any block shows a screen displaying specific information
about the system component.
Converters, inverters and ringers are considered auxiliary equipment. If
there is no data for these components, the header will show “No
Auxiliary Equipment” and nothing will be shown in the box. This is the
same for all other system components.
Data inside gray boxes indicates “live” data, or data coming from the
Galaxy Gateway.
Note: To set up floorplans for individual systems, you must create a
Floorplans directory in the same directory where the Galaxy Manager
code exists (e.g., /var/www/html on UNIX systems and c:\sokkit\site\ on
Windows systems.) In this directory, you should place .jpg files of the
floorplans with the site name, underscore, floor number. For example,
for the CONCORD site on Floor 1, this file would be named
CONCORD_1.jpg. The floor must be set in the power_system table for
CONCORD. For a generator for a site, the name will be
CONCORD_G.jpg.
