3 INSTALLATION
3.1 TRANSPORT
Transport UPS only in upright position!
The UPS is packaged on a pallet suitable for handling with
a forklift.
Pay attention to the center of gravity.
The UPS must be moved in upright position.
Do not tilt cabinets more than +/- 10° during handling.
Move the UPS in it’s original package to the final
destination site.
Do not stack other packages on top: This could damage
the UPS.
If the UPS must be lifted by crane, use suitable lifting straps
and spreader bars.
Note of the center of gravity marked on the package.
Take all necessary precautions to avoid damage to the
cabinet while hoisting the UPS.
Forklift
Crane
NOTE !

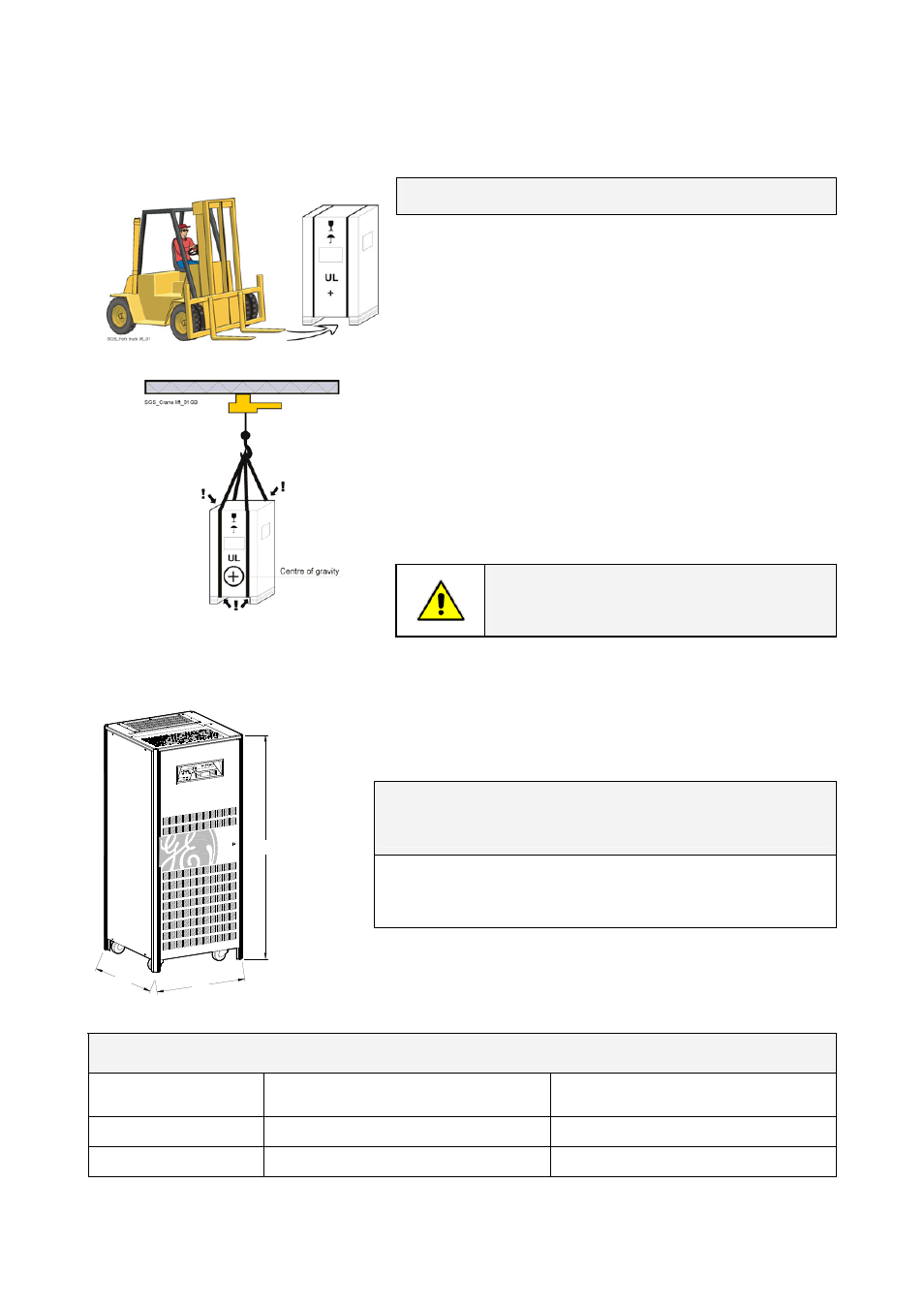

Fig. 3.1-1 UPS cabinets moving
Check for sufficient floor and elevator
loading capacity.
3.1.1 Dimensions and weight
Dimensions SG Series 50 & 80 kVA
(W x D x H)
31.50 x 31.50 x 70.90 inches
800 x 800 x 1,800 mm
S G
T 5000_0
50-
080_
U P S dim
ens
ions
_G
E _0
1US
H
D
W
Fig. 3.1.1-1 UPS cabinet dimensions
Weight SG Series 50 & 80 kVA
UPS rating
Weight Floor loading
lbs/sq.ft / kg/m 2 lbs / kg
SG Series 50 kVA 1,306 / 592 190 / 925
SG Series 80 kVA 1,491 / 676 217 / 1,057
P.S.: Weight including the 5th harmonic filter and EMI filters.
