20A Analog MicroDLynx TM : Non-Isolated DC-DC Power Modules
3Vdc –14.4Vdc input; 0.45Vdc to 5.5Vdc output; 20A Output Current
April 24, 2013 ©2012 General Electric Company. All rights reserved. Page 19

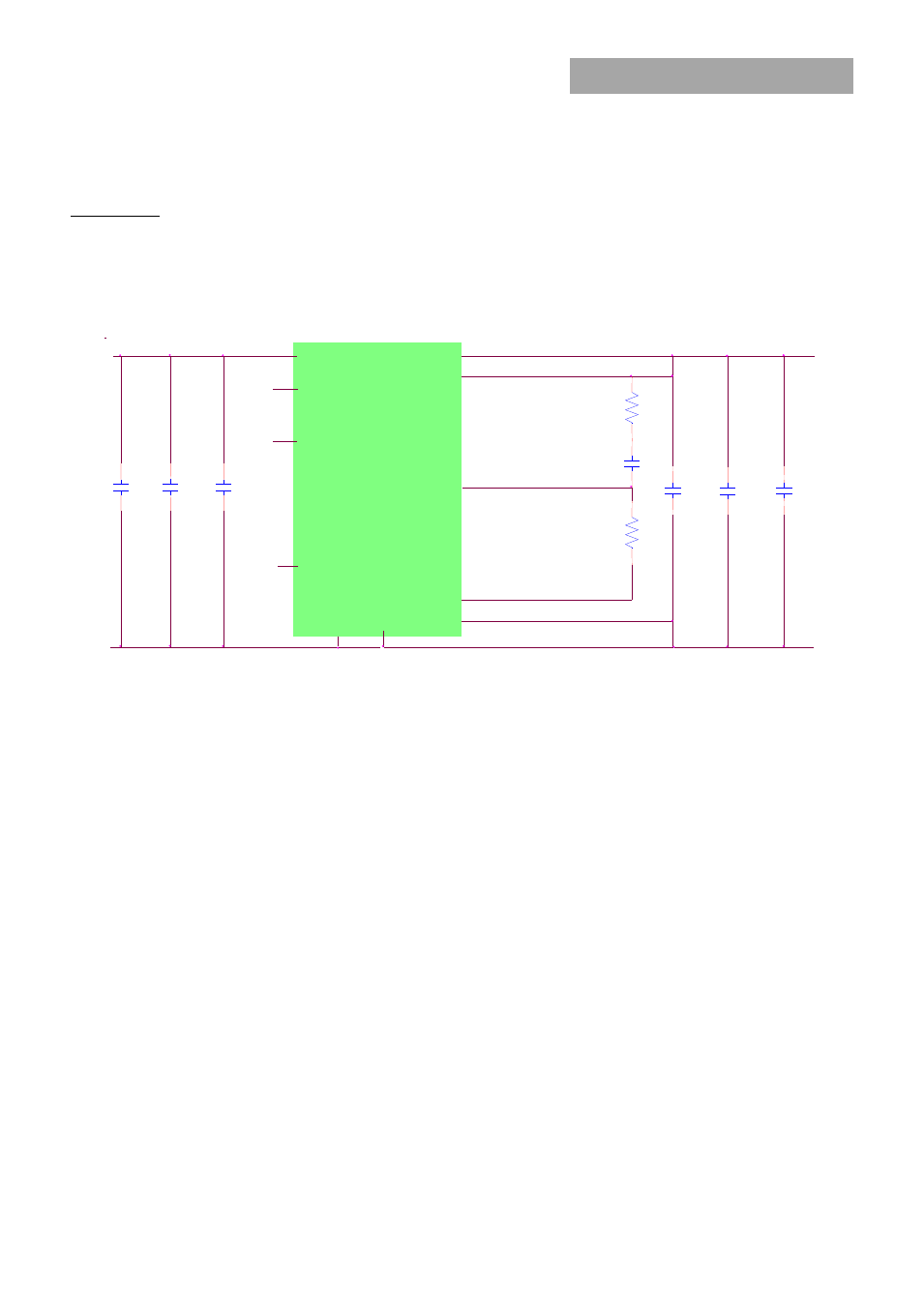

Example Application Circuit
Requirements:
Vin:
12V
Vout: 1.8V
Iout: 15A max., worst case load transient is from 10A to 15A
 Vout: 1.5% of Vout (27mV) for worst case load transient
Vin, ripple 1.5% of Vin (180mV, p-p)
CI1 Decoupling cap - 1x0.047  F/16V ceramic capacitor (e.g. Murata LLL185R71C473MA01)
CI2 3x22  F/16V ceramic capacitor (e.g. Murata GRM32ER61C226KE20)
CI3 47  F/16V bulk electrolytic
CO1 Decoupling cap - 1x0.047  F/16V ceramic capacitor (e.g. Murata LLL185R71C473MA01)
CO2 N.A.
CO3
3 x 330  F/6.3V Polymer (e.g. Sanyo Poscap)
CTune 4700pF ceramic capacitor (can be 1206, 0805 or 0603 size)
RTune 330 ohms SMT resistor (can be 1206, 0805 or 0603 size)
RTrim 10k  SMT resistor (can be 1206, 0805 or 0603 size, recommended tolerance of 0.1%)
VS-
GND
Vin+
CI3 CO3
VOUT
VS+
GND
TRIM
CTUNE
RTUNE
RTrim
VIN
CO1
CI1
Vout+
ON/OFF
SEQ
MODULE
PGOOD
SIG_GND
SYNC
CI2
CO2
