GE Industrial Solutions CLP0212 User Manual

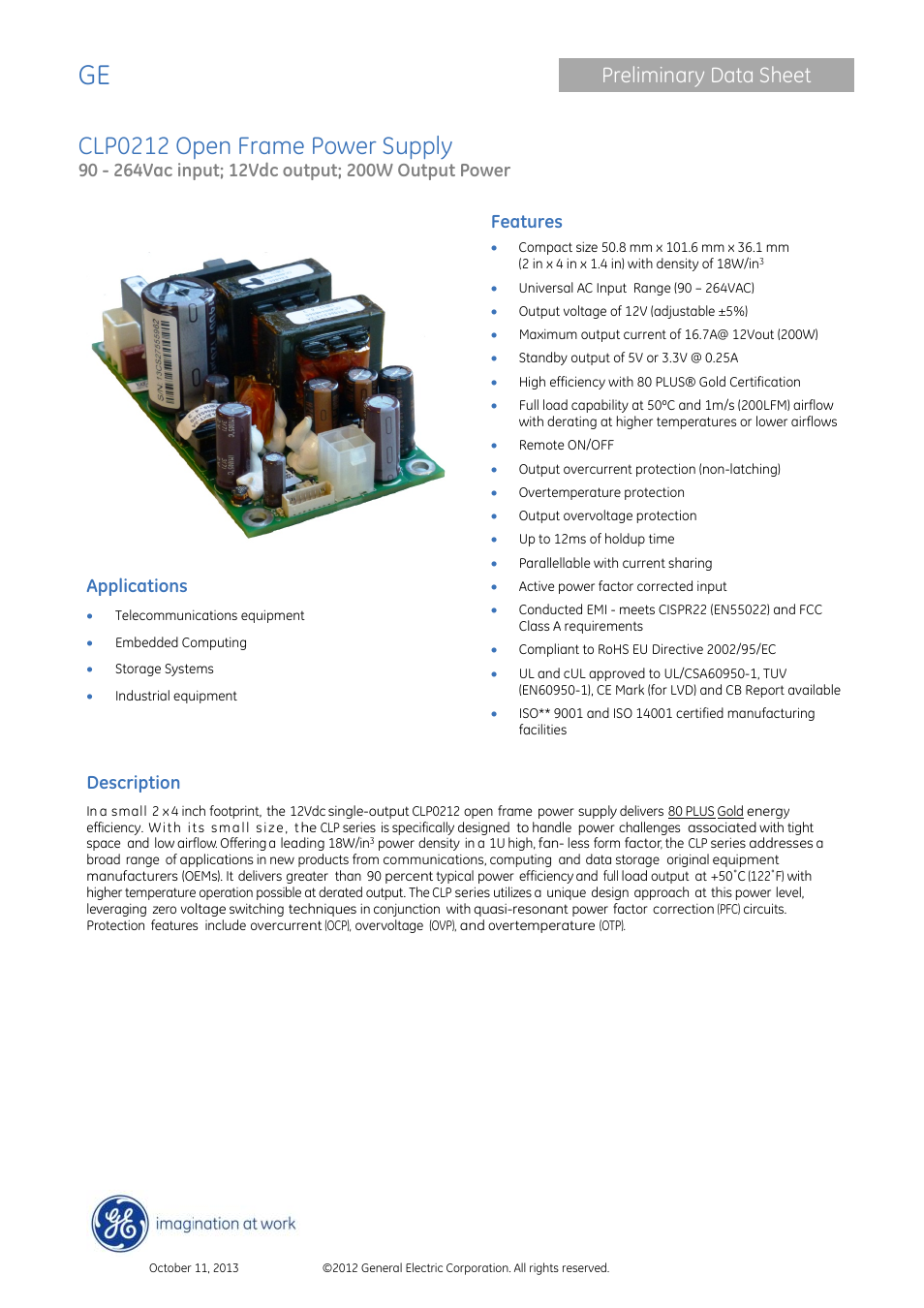

Clp0212 open frame power supply, Preliminary data sheet, Features
Table of contents
Document Outline
- Features
- Applications
- Description
- Absolute Maximum Ratings
- Electrical Specifications
- Electrical Specifications (cont.)
- General Specifications
- Feature Specifications
- Feature Specifications (cont.)
- Environmental Specifications
- * Radiated immunity is met when the power supply is tested in a suitable enclosure.
- Characteristic Curves
- Characteristic Curves (cont.)
- Standby Power Supply
- Remote On/Off
- Output Voltage Adjustment
- The output voltage can be adjusted between 11.4V and 12.6V using a potentiometer on the power supply. See Fig. 10 for a diagram showing location of the potentiometer.
- Remote Sense
- Overcurrent Protection
- To provide protection in a fault condition (output overload), the power supply is equipped with internal current-limiting circuitry and can endure current limiting continuously. At the point of current-limit inception, the unit enters hiccup mode. The...
- Overvoltage Protection
- Overvoltage protection is a feature of the CLP0212 power supply that protects both the load and the power supply from an output overvoltage condition. When an overvoltage occurs, the power supply shuts down and goes into hiccup mode until the overvolt...
- Overtemperature Protection
- The CLP0212 also features overtemperature protection in order to provide additional protection in a fault condition. The power supply is equipped with a thermal shutdown circuit which detects excessive internal temperatures and shuts the unit down. On...
- Input Undervoltage Lockout
- At input voltages below the input undervoltage lockout limit, power supply operation is disabled. The power supply will begin to operate at an input voltage above the undervoltage lockout turn-on threshold. Note that the undervoltage lockout limits ar...
- DC OK
- Power Good LED
- A green LED (located next to HDR3) illuminates when the main output voltage is above 10V.
- Paralleling/Load Share
- All CLP0212 power supplies are specified to meet conducted Class A EMI requirements per CISPR 22 (EN55022) with at least 3dB of margin. Results of tests conducted without any external filtering are shown below. These indicate 10dB or better of margin ...
- CLP0212FPXX5Z01A (120VAC in, 12V @ 180W out, Negative of Output Grounded)
- CLP0212FPXX5Z01A (208VAC in, 12V @ 180W out, Negative of Output Grounded)
- CLP0212FPEX5Z03A (120VAC in, 12V @ 180W out, Negative of Output Grounded)
- CLP0212FPEX5Z03A (208VAC in, 12V @ 180W out, Negative of Output Grounded)
