Clp0212 open frame power supply, Preliminary data sheet, Features

GE
Preliminary Data Sheet
October 11, 2013
©2012 General Electric Corporation. All rights reserved.

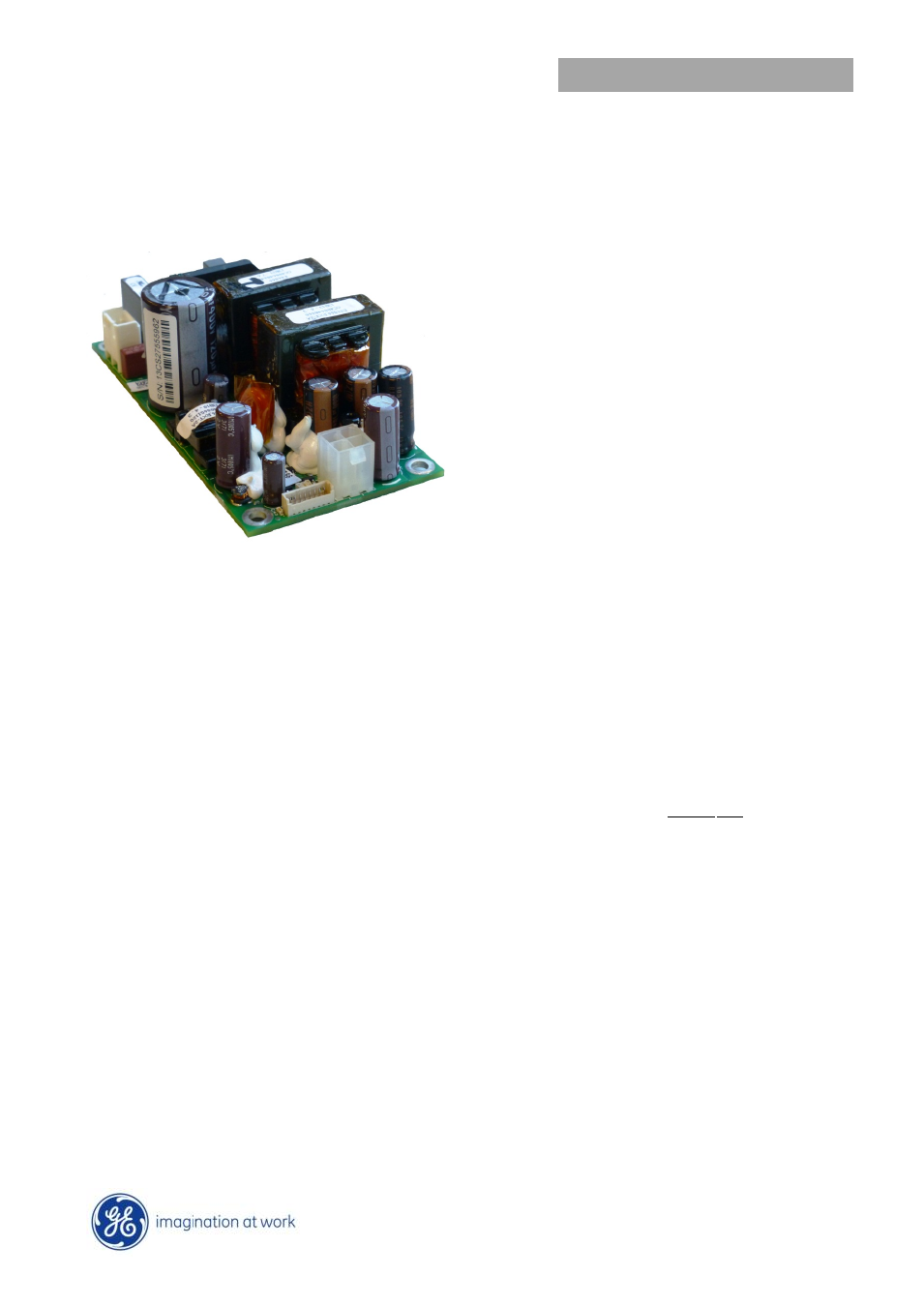

CLP0212 Open Frame Power Supply
90 - 264Vac input; 12Vdc output; 200W Output Power
Features
•
Compact size 50.8 mm x 101.6 mm x 36.1 mm
(2 in x 4 in x 1.4 in) with density of 18W/in
3
•
Universal AC Input Range (90 – 264VAC)
•
Output voltage of 12V (adjustable ±5%)
•
Maximum output current of 16.7A@ 12Vout (200W)
•
Standby output of 5V or 3.3V @ 0.25A
•
High efficiency with 80 PLUS® Gold Certification
•
Full load capability at 50ºC and 1m/s (200LFM) airflow
with derating at higher temperatures or lower airflows
•
Remote ON/OFF
•
Output overcurrent protection (non-latching)
•
Overtemperature protection
•
Output overvoltage protection
•
Up to 12ms of holdup time
•
Parallellable with current sharing
•
Active power factor corrected input
•
Conducted EMI - meets CISPR22 (EN55022) and FCC
Class A requirements
•
Compliant to RoHS EU Directive 2002/95/EC
•
UL and cUL approved to UL/CSA60950-1, TUV
(EN60950-1), CE Mark (for LVD) and CB Report available
•
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
•
Telecommunications equipment
•
Embedded Computing
•
Storage Systems
•
Industrial equipment
Description
In a small 2 x 4 inch footprint, the 12Vdc single-output CLP0212 open frame power supply deliver
efficiency. With its small siz e, t he CLP series is specifically designed to handle power challenges associated with tight
space and low airflow. Offering a leading 18W/in
3
power density in a 1U high, fan- less form factor, the CLP series addresses a
broad range of applications in new products from communications, computing and data storage original equipment
manufacturers (OEMs). It delivers greater than 90 percent typical power efficiency and full load output at +50˚C (122˚F) with
higher temperature operation possible at derated output. The CLP series utilizes a unique design approach at this power level,
leveraging zero voltage switching techniques in conjunction with quasi-resonant power factor correction (PFC) circuits.
Protection features include overcurrent (OCP), overvoltage (OVP), and overtemperature (OTP).
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document Outline
- Features
- Applications
- Description
- Absolute Maximum Ratings
- Electrical Specifications
- Electrical Specifications (cont.)
- General Specifications
- Feature Specifications
- Feature Specifications (cont.)
- Environmental Specifications
- * Radiated immunity is met when the power supply is tested in a suitable enclosure.
- Characteristic Curves
- Characteristic Curves (cont.)
- Standby Power Supply
- Remote On/Off
- Output Voltage Adjustment
- The output voltage can be adjusted between 11.4V and 12.6V using a potentiometer on the power supply. See Fig. 10 for a diagram showing location of the potentiometer.
- Remote Sense
- Overcurrent Protection
- To provide protection in a fault condition (output overload), the power supply is equipped with internal current-limiting circuitry and can endure current limiting continuously. At the point of current-limit inception, the unit enters hiccup mode. The...
- Overvoltage Protection
- Overvoltage protection is a feature of the CLP0212 power supply that protects both the load and the power supply from an output overvoltage condition. When an overvoltage occurs, the power supply shuts down and goes into hiccup mode until the overvolt...
- Overtemperature Protection
- The CLP0212 also features overtemperature protection in order to provide additional protection in a fault condition. The power supply is equipped with a thermal shutdown circuit which detects excessive internal temperatures and shuts the unit down. On...
- Input Undervoltage Lockout
- At input voltages below the input undervoltage lockout limit, power supply operation is disabled. The power supply will begin to operate at an input voltage above the undervoltage lockout turn-on threshold. Note that the undervoltage lockout limits ar...
- DC OK
- Power Good LED
- A green LED (located next to HDR3) illuminates when the main output voltage is above 10V.
- Paralleling/Load Share
- All CLP0212 power supplies are specified to meet conducted Class A EMI requirements per CISPR 22 (EN55022) with at least 3dB of margin. Results of tests conducted without any external filtering are shown below. These indicate 10dB or better of margin ...
- CLP0212FPXX5Z01A (120VAC in, 12V @ 180W out, Negative of Output Grounded)
- CLP0212FPXX5Z01A (208VAC in, 12V @ 180W out, Negative of Output Grounded)
- CLP0212FPEX5Z03A (120VAC in, 12V @ 180W out, Negative of Output Grounded)
- CLP0212FPEX5Z03A (208VAC in, 12V @ 180W out, Negative of Output Grounded)
