GE Industrial Solutions MicroVersaTrip PM User Manual
Page 21

MicroVersaTrip Plus™ and MicroVersaTrip PM™ Trip Units
Chapter 2. Setup Mode
11
T
T
T
Trrrriiiip
p
p
p U
U
U
Un
n
n
niiiitttt O
O
O
Op
p
p
peee
errrraa
a
attttiiiin
n
n
ng
g
g
g M
M
M
Mo
o
o
od
d
d
deee
e
K
K
K
Keee
eyyyy
SS
S
Syyyym
m
m
mb
b
b
bo
o
o
ollll
SS
S
Seee
ettttu
u
u
up
p
p
p
M
M
M
Meee
etttteee
errrriiiin
n
n
ng
g
g
g
SS
S
Sttttaa
a
attttu
u
u
ussss
FUNCTION
F
Select one of three modes: Setup, Metering, Status
SELECT
S
Select next programming
display
Select next metering display
Select next status display
VALUE
V
Display next set point or time-
delay value
Display next phase value
No effect
ENTER
E
Store set point or time-delay
value into memory
No effect
No effect

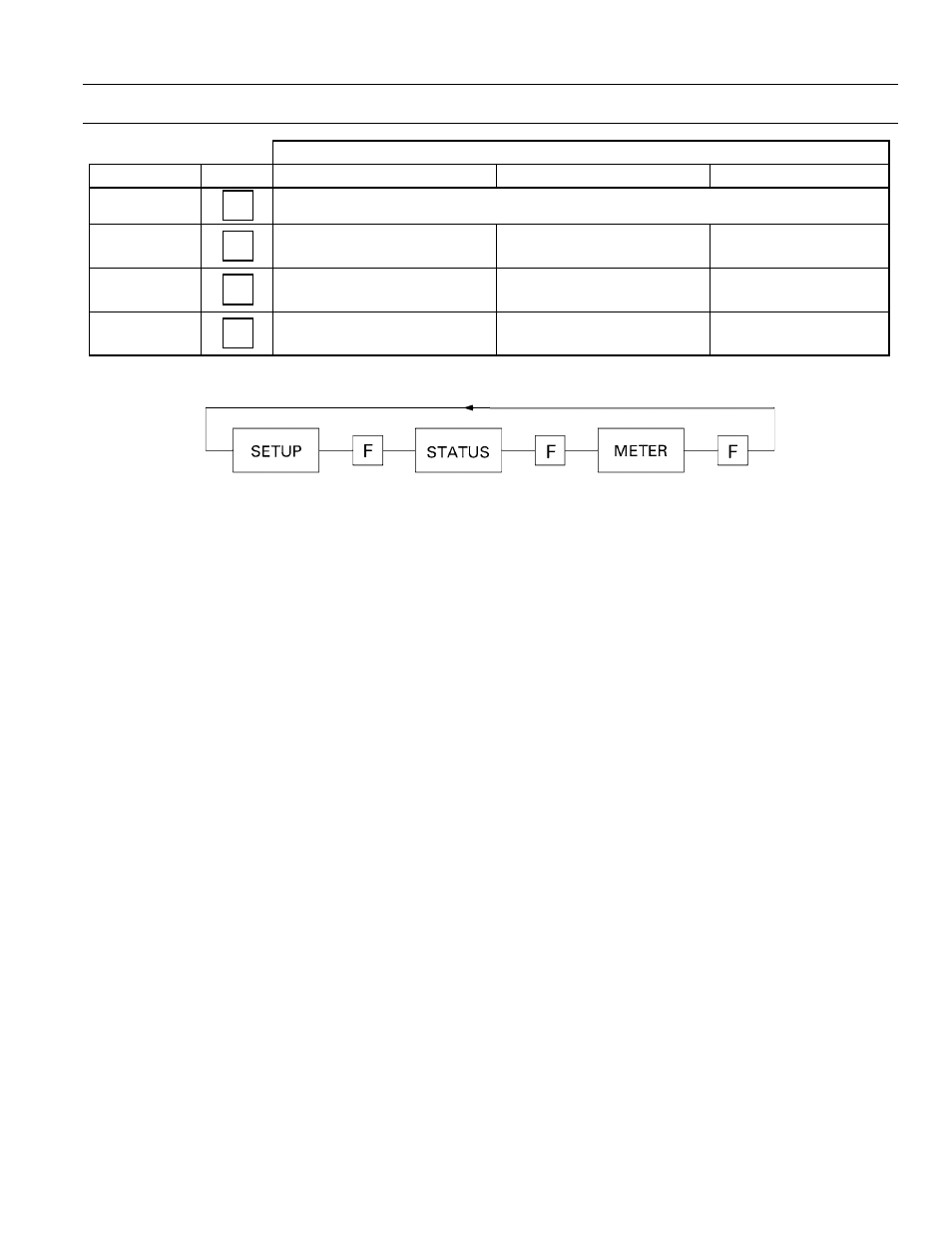

Table 10. Actions of function keys in Trip Unit operating modes.
Figure 8. Operation of FUNCTION key, showing progression among Trip Unit operating modes.
Set points are entered into memory in three steps:
display, select, and activate, as described below:
1
1
1
1.... Press the
VALUE
key until the desired set point
is displayed flashing on the LCD.
2
2
2
2.... Press the
ENTER
key to select this set point. The
displayed value stops flashing and the
SETUP
icon flashes on the LCD. This indicates that
the value has been stored in memory but is not
yet active. If a new set point is displayed but not
selected by pressing the
ENTER
key (set point
value still flashing), then the displayed set
point is not entered into memory and the
original value is maintained. Multiple set point
changes can be made in this fashion without
changing the active settings. For each of these
changes, the
SETUP
icon continues to flash.
3
3
3
3.... Press the
F U N C T I O N
key to activate these
settings in the Trip Unit. The
SETUP
icon no
longer flashes, which indicates that any
selected settings are also currently active. The
F U N C T I O N
key should always be pressed
following set point changes to ensure that the
active settings match the stored settings.
The set point change steps are summarized as
follows:
• Display set point – Press the
VALUE
key until the
desired setting is flashing.
• Select set point – Press the
ENTER
key; the setting
stops flashing and the
S E T U P
icon starts
flashing.
• Activate set points – Press the
FUNCTION
key to
activate the settings; the
SETUP
icon stops
flashing.
Always confirm settings on the Trip Unit after
making changes by exiting and re-entering Setup
mode and rechecking each changed setting.
