41 EntelliGuard R Circuit Breaker Retrofill AKD-5 Installation Manual DEH-41547 02/12

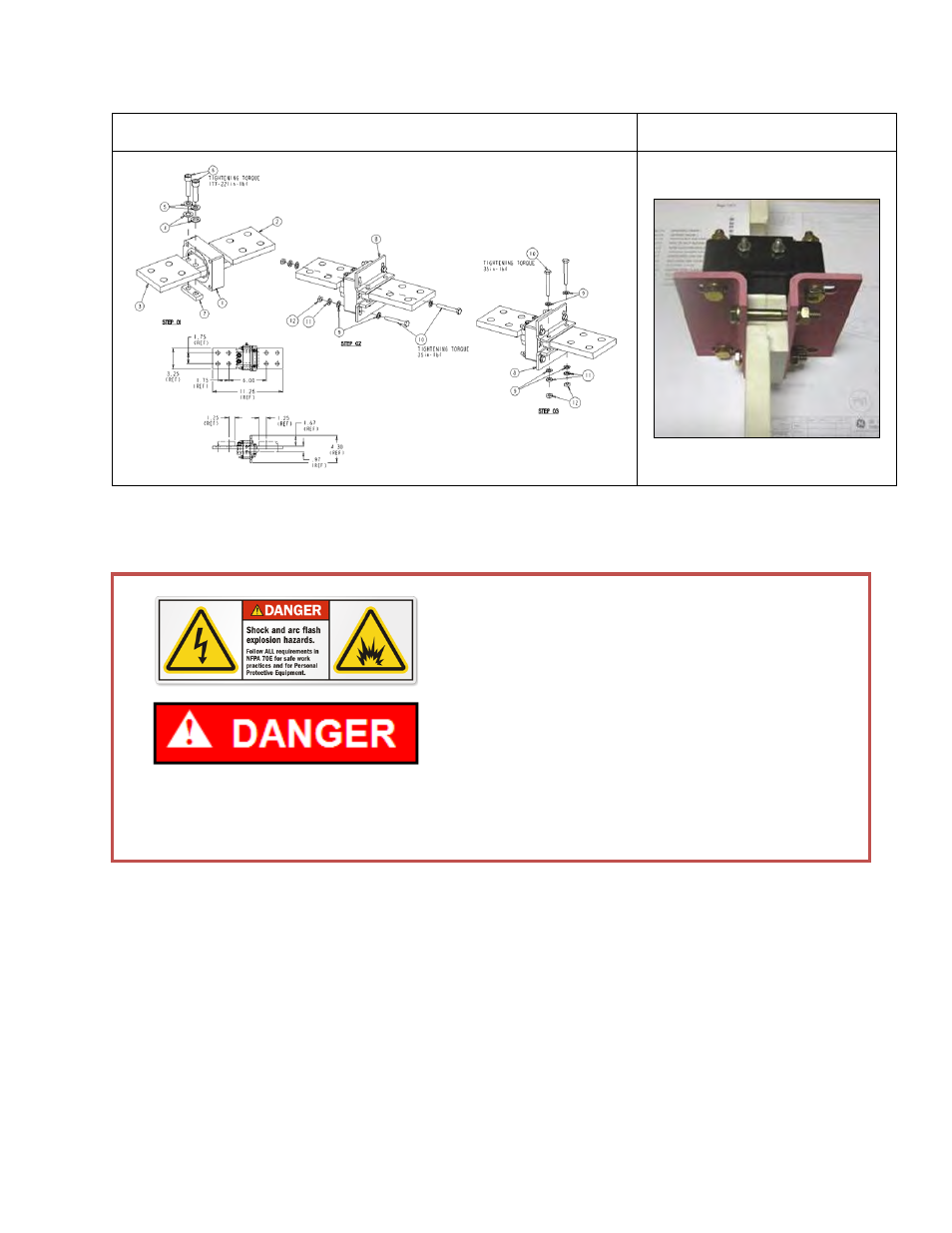

Figure 56. AKD-5—AK50 Neutral Bus Rogowski ASM 10108216 Figure 57. Neutral Bus Rogowski
ASM 10108216 Photo
AKD-5—Neutral Sensor Packaging
• It must be ensured that the supply power
to the compartment is turned off/
compartment is de-energized for all the
incoming and outgoing circuits of the LVS
prior to any work being conducted on it.
• During the installation and related work on
the equipment, it must be ensured that the
operator is using the prescribed PPE for the
specified tasks.
• Ensure only qualified personnel install, operate, service, and maintain all electrical
equipment.
• The Neutral Sensor is constructed using a phase sensor encapsulated appropriately to meet
insulation and durability requirements.
• Lead wires are UL-recognized type 18AWG or larger, rated at 600V.
• Lead wires are 6 feet in length, minimum.
• Lead wires are colored white and black.
• The white wire is connected to the “positive” polarity termination.
• The black wire is connected to the “negative” polarity termination.
