Spectra and Spectra II Series™ Plug-In and Feeder Busway
Installing and Removing Spectra Busway Plugs
7
Table 3. Dimensions for Spectra RMS™ circuit breaker bus plug.
Frame
Dimensions, in. Handle
Ht  .
Wt.,
lb.
Outlets Fig.
W L D
SED, SEH, SEL, SEP 11.00 13.00 8.00 11.00 25 1 7
SFH, SFL, SFP 11.00 21.25 9.00 12.00 41 1 7
SGH, SGL, SGP 16.75 26.50 12.50 20.50 91 2 8
SKH. SKL, SKP  16.75 36.50 12.50 20.50 160 2 8
 Maximum distance from the busway housing to the handle tip.
 For ground fault option, increase width by 2.125 inches and length by 6.00
inches.
Table 4. Dimensions for Types QMR and QMW fusible switch bus
plugs, as illustrated in Figure and Figure 8.
Rating,
Volts
Amps
Dimensions, in.
Wt.,
lb
Fig.
W
L
D
Handle
Ht.
Std
Gutter
Ext
Gutter
240 &
600
30 11.25 13.00 18.63 8.75 11.00 24 7
60 11.25 13.00 18.63 8.75 11.00 25 7
100 11.25 18.75 NA 8.75 11.00 28 7
200 16.00 18.75 24.50 8.75 11.00 46 7
400 20.50 18.75 NA 18.75 24.00 135 8
600 20.50 24.50 NA 18.75 28.00 160 8
Table 5. Dimensions for molded-case circuit breaker bus plugs.
Frame
Dimensions, in.
Wt.,
lb
Outlets Fig.
W L D
Handle
Height
TEB, TED, THED 11.00 13.00 8.00 11.00 24 1 7
TFJ, TFK, THFK 11.00 18.50 9.50 12.00 44 1 7
TJJ, TJK4, TJK6,
THJK4, THJK6
16.75 24.50 12.50 20.50 95 2 8
TKM8, THKM8,
THK
16.75 36.50 12.50 20.50 160 2 8
TB1 (fused) 11.00 18.50 8.00 11.00 29 1 7
TB4 (fused) 16.75 30.50 12.50 20.50 65 2 8
TB6 (fused) 16.75 45.25 12.50 20.50 175 2 8
TB8 (fused) 16.75 45.25 12.50 20.50 185 2 8
Table 6. Busway and hanger mounting dimensions, as illustrated in
Figure 2 and Figure 3.
Bars per
Phase
Ampere Rating Dimensions, in.
Copper Aluminum Busway A Hanger B
1
225–800 225–600 4 3 / 8
10 1 / 4
1000 — 5
1200 800 5 5 / 8
1350 1000 6 1 / 8
1600 1200 7
2000 1350 8 1 / 2
14 — 1600 9 1 / 4
2500 — 10 1 / 4
— 2000 11
18 1 / 2
2
3000 — 15
— 2500 15 1 / 2
4000 3000 18 22 1 / 2
5000 — 21 1 / 2
26
— 4000 23
Table 7. Number of busway springs required per busway weight.
Busway
Weight, lb
No. of Springs
Required per Floor
0–600 2
601–1200 4
Over 1200 6
Table 8. Busway weights.
Amperes
Busway Weight, lb/ft
Copper Aluminum
3 Wire 4 Wire 3 Wire 4 Wire
225 8 9 5 6
400 8 9 5 6
600 8 9 5 6
800 8 9 6 7
1000 10 12 7 8
1200 12 15 8 9
1350 14 17 9 10
1600 16 20 10 12
2000 21 26 12 15
2500 26 33 17 20
3000 32 40 19 23
4000 42 52 25 30
5000 52 66 — —
The door hinges at the left end. The L and W dimensions are shown over
the largest part of the plug.

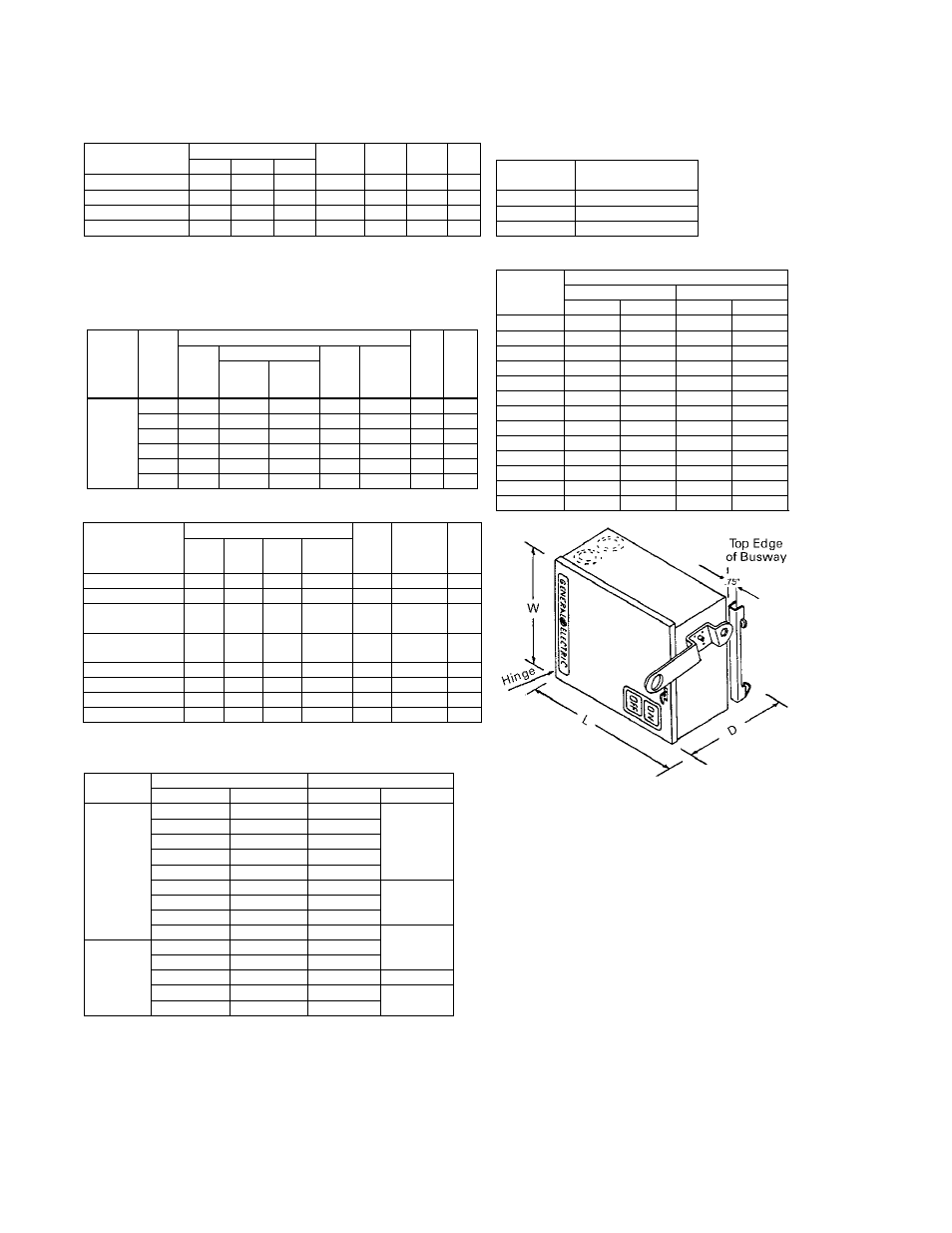

Figure 7. Bus plugs with door hinges at the left end.
Important Note:
On vertical riser applications use a Minimun of 18‖ of
un-supported flexible conduit connecting to bus plugs.
