Flux shifter wiring harness in place – GE Industrial Solutions ProTrip Conversion Kits AK-15, AK-25, and AKU-25 User Manual
Page 12
12
6. Attach the mounting plate with the three screws and
lock washers provided to the tapped holes in the
support bracket, as shown in Figure 17.
7. Run the wiring harness from the flux shifter through
the wiring trough on the front of the frame, as shown
in Figure 18. Attach the 4-pin connector to the
corresponding connector on the trip unit wiring
harness.
8. The additional three pairs of terminals on the trip unit
wiring harness will be connected to the current
sensors after the breaker has been reassembled.

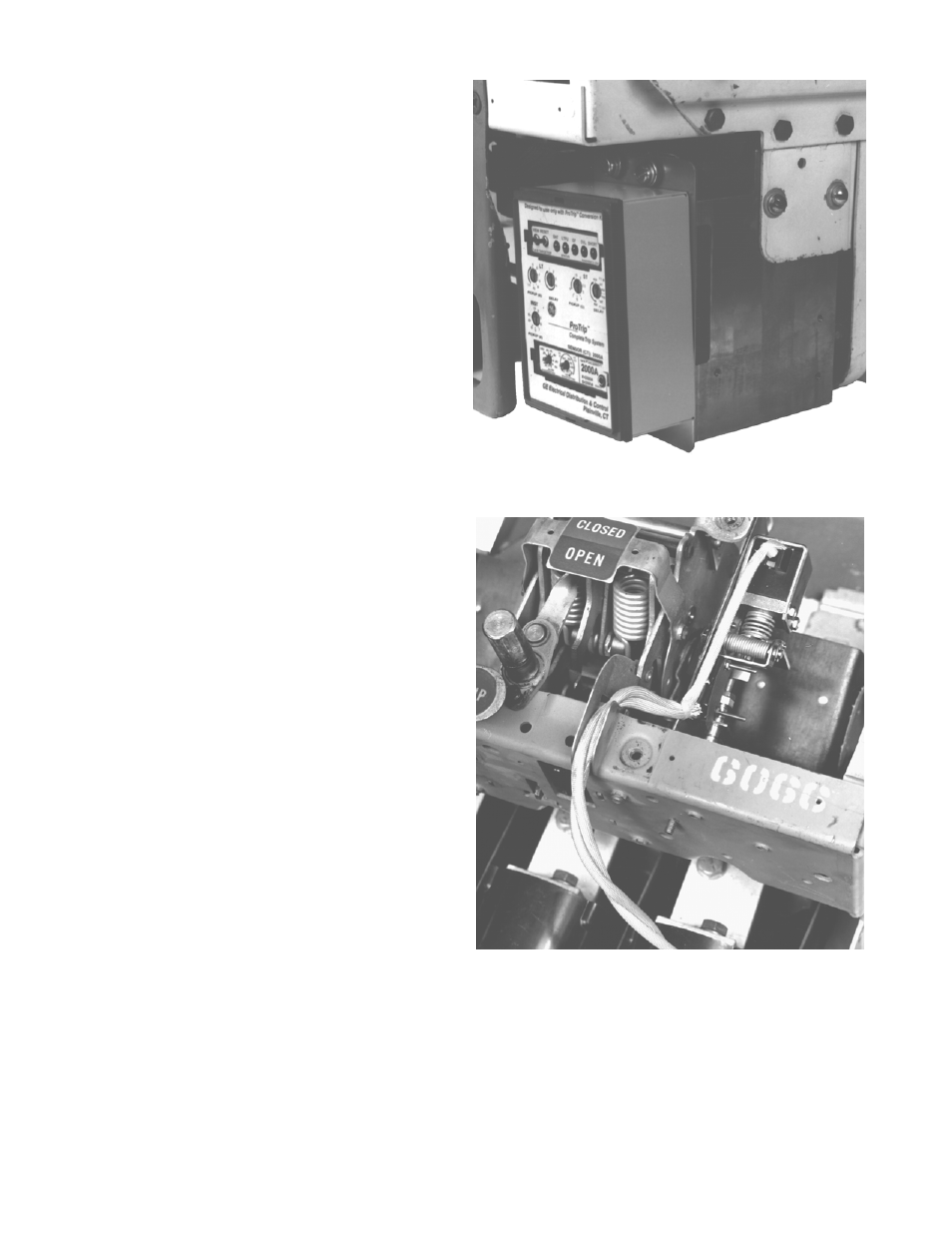

Figure 17. Trip unit and mounting plate attached to the
breaker.
Figure 18. Flux shifter wiring harness in place.
