Showing the x relay and insulator, Trip unit attached to the mounting plate – GE Industrial Solutions ProTrip Conversion Kits AK-15, AK-25, and AKU-25 User Manual
Page 11
11
4. Insert the 50-pin connector on the wiring harness
through the rear of the rectangular hole in the
mounting plate and secure with the two small screws
provided to the mounting plate, as shown in Figure
16.
5. Remove the large screw from the rear of the trip unit.
Line up the connector on the rear of the trip unit with
the connector on the mounting plate and join them.
Insert the large screw just removed through the rear
of the mounting plate to secure the trip unit, as
shown in Figure 16.

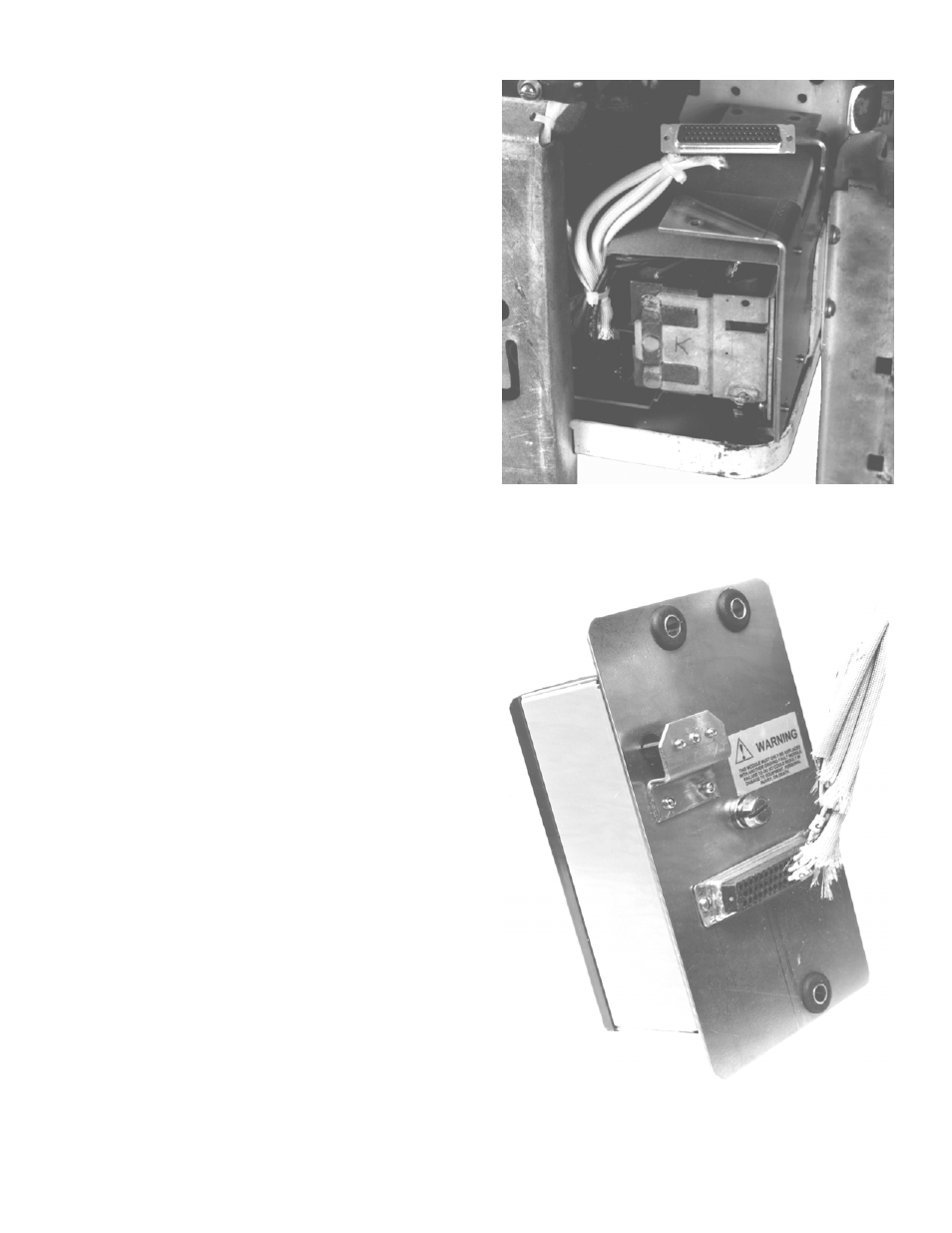

Figure 15. Bottom view of the trip unit support bracket
installed on an electrically operated breaker, showing the
X relay and insulator.
Figure 16. Trip unit attached to the mounting plate..
