GE Industrial Solutions PicoTLynx 3A User Manual
Picotlynx, 3a: non-isolated dc-dc power modules, Data sheet

GE
Data Sheet
September 11, 2013
©2013 General Electric Company. All rights reserved.
PicoTLynx
TM
3A: Non-Isolated DC-DC Power Modules
2.4Vdc –5.5Vdc input; 0.6Vdc to 3.63Vdc output; 3A Output Current
Features
Compliant to RoHS EU Directive 2002/95/EC
(Z versions)
Compatible in a Pb-free or SnPb reflow environment
(Z versions)
Wide Input voltage range (2.4Vdc-5.5Vdc)
Output voltage programmable from 0.6Vdc to 3.63
Vdc via external resistor
Tunable Loop
TM
to optimize dynamic output voltage
response
Flexible output voltage sequencing EZ-SEQUENCE
– APTH versions
Remote sense
Fixed switching frequency
Output overcurrent protection (non-latching)
Overtemperature protection
Remote On/Off
Ability to sink and source current
Cost efficient open frame design
Small size: 12.2 mm x 12.2 mm x 6.25 mm
(0.48 in x 0.48 in x 0.25 in)
Wide operating temperature range (-40°C to
85°C)
UL* 60950-1Recognized, CSA
†
C22.2 No. 60950-1-
03 Certified, and VDE
‡
0805:2001-12 (EN60950-1)
Licensed
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
Industrial equipment
Description
The Pico TLynx
TM
3A power modules are non-isolated dc-dc converters that can deliver up to 3A of output current. These
modules operate over a wide range of input voltage (V
IN
= 2.4Vdc-5.5Vdc) and provide a precisely regulated output voltage
from 0.6Vdc to 3.63Vdc, programmable via an external resistor. Features include remote On/Off, adjustable output voltage,
over current and overtemperature protection, and output voltage sequencing (APTH versions). A new feature, the Tunable
Loop
TM
, allows the user to optimize the dynamic response of the converter to match the load with reduced amount of output
capacitance leading to savings on cost and PWB area.
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards

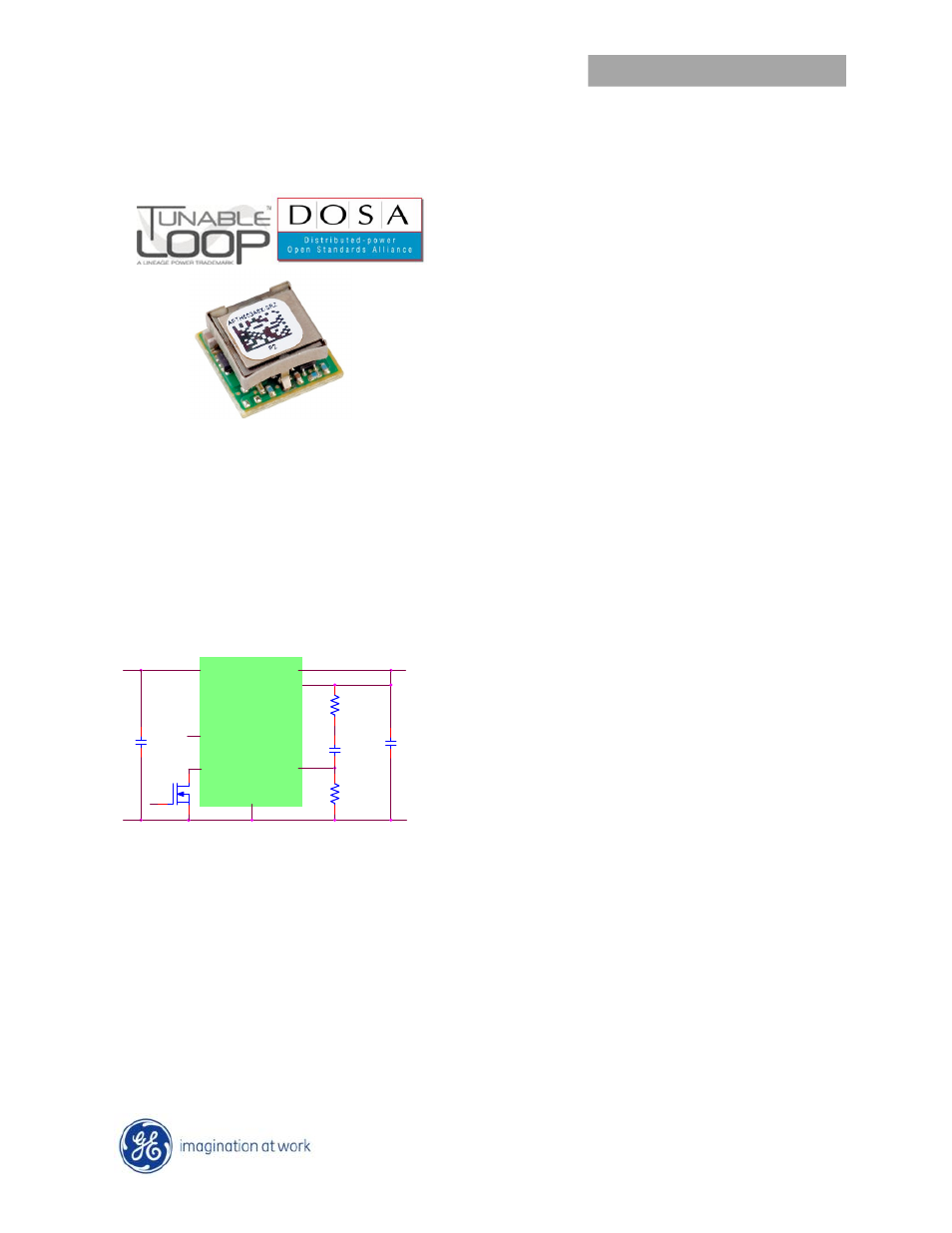

TRIM
VOUT
SENSE
GND
CTUNE
RTUNE
RTrim
VIN
Co
Cin
Vin+
Vout+
ON/OFF
Q1
SEQ
MODULE
RoHS Compliant
EZ-SEQUENCE
TM
