Remote HMI Software

52

8

again when the user selects the HMI from the “Select Lineup” screen. If there is a mismatch, the
user will be prompted to either update the HMI or do nothing.

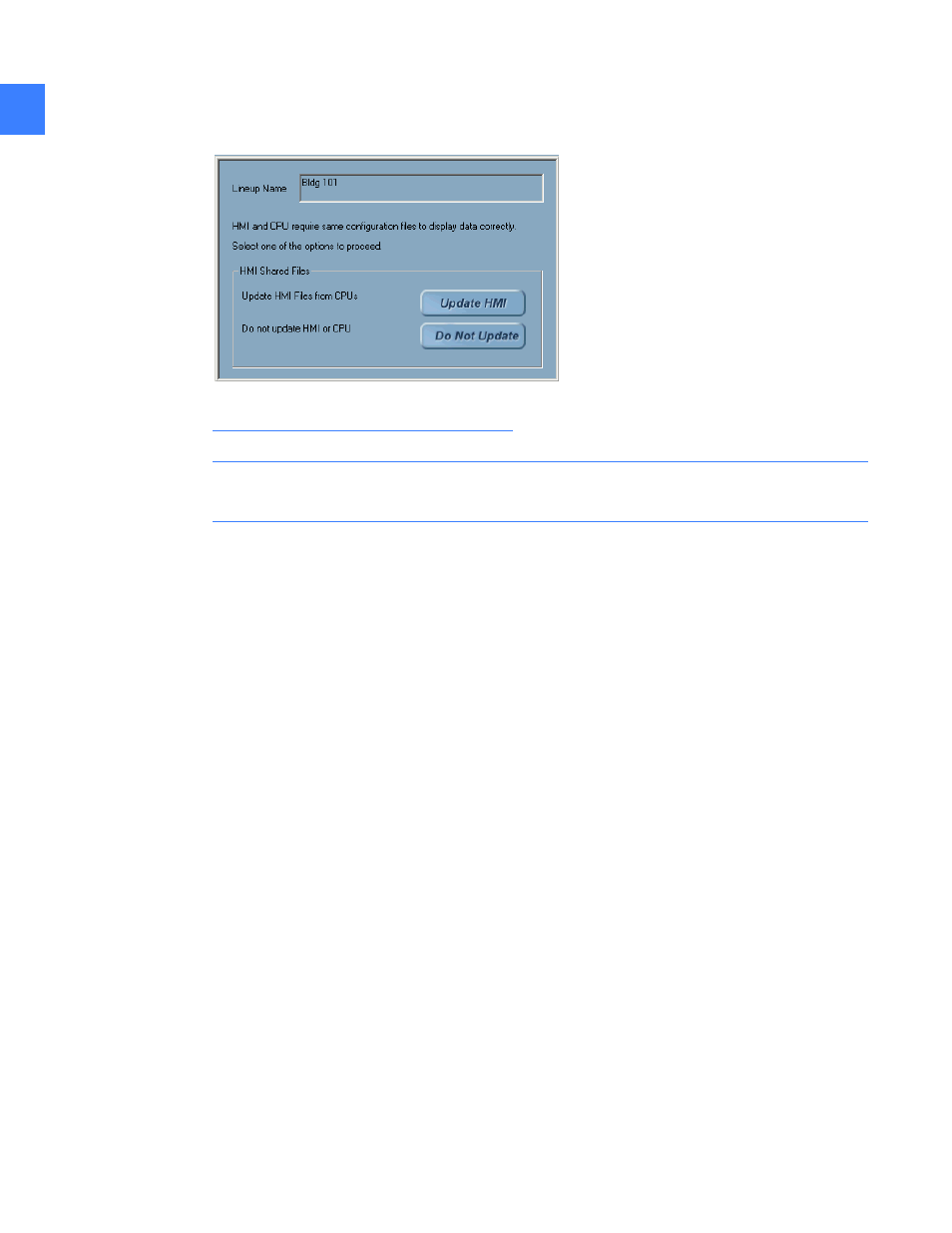

Figure 8-3 HMI file mismatch dialog

If the Entellisys system was configured in offline mode, do not select “Update HMI.” See section

Writing settings to a live system on page 57

for details on uploading settings to the CPU.

NOTE: The order in which lineups appear in the “Select Lineup” screen is fixed to the order in
which they were added into the HMI.
