Test configurations, Design considerations, Safety considerations – GE Industrial Solutions EQW012-020-023-025 Series User Manual

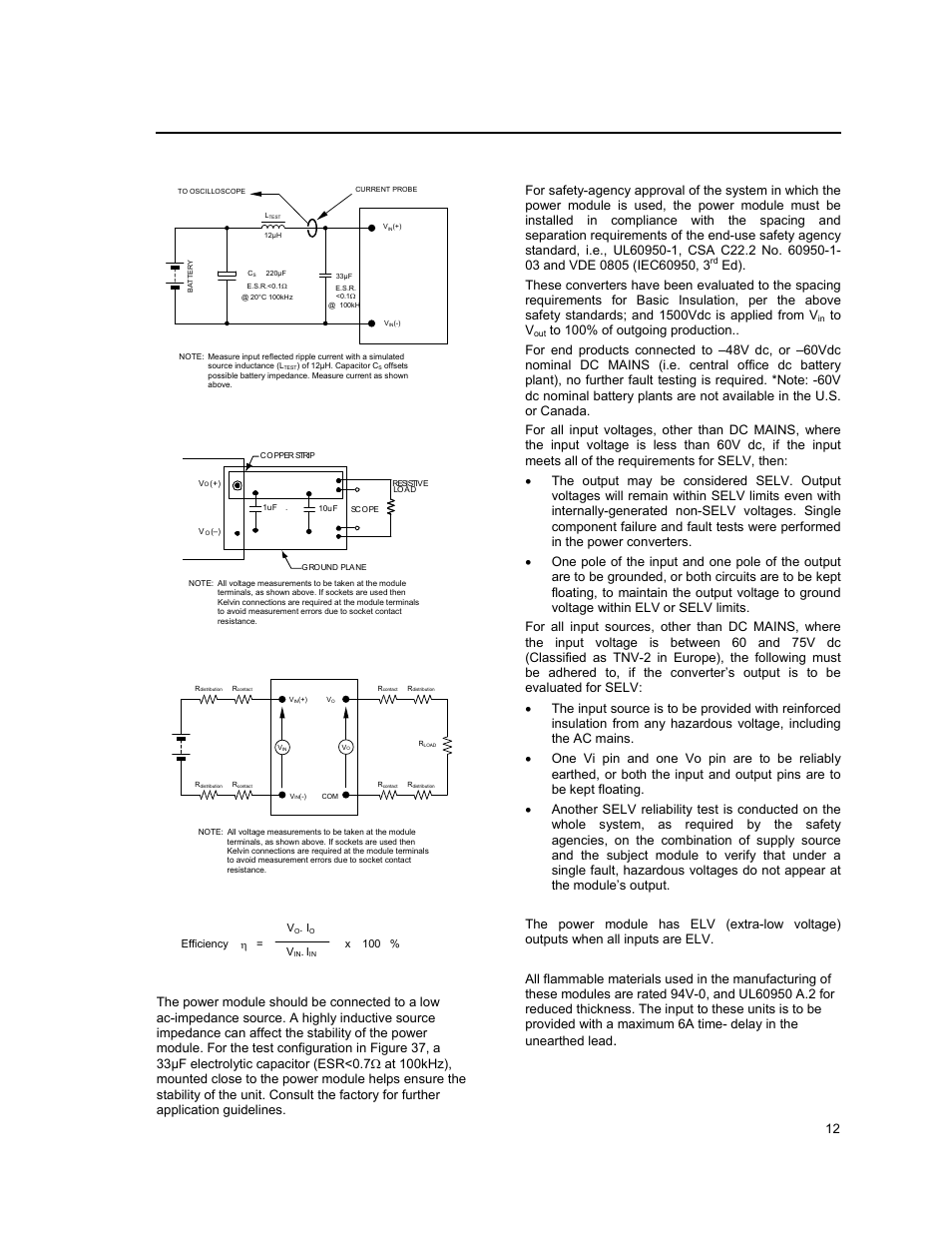

Page 12: Lineage power 12, Figure 38. output ripple and noise test setup
