86
Appendix 1. Connections
A 1.1. Ethernet Pin outs
The Pro Series uses a standard Ethernet connector, which is a shielded connector that is compliant
with the AT&T258 specifications. Table A-1 shows the pin assignment and wire color.

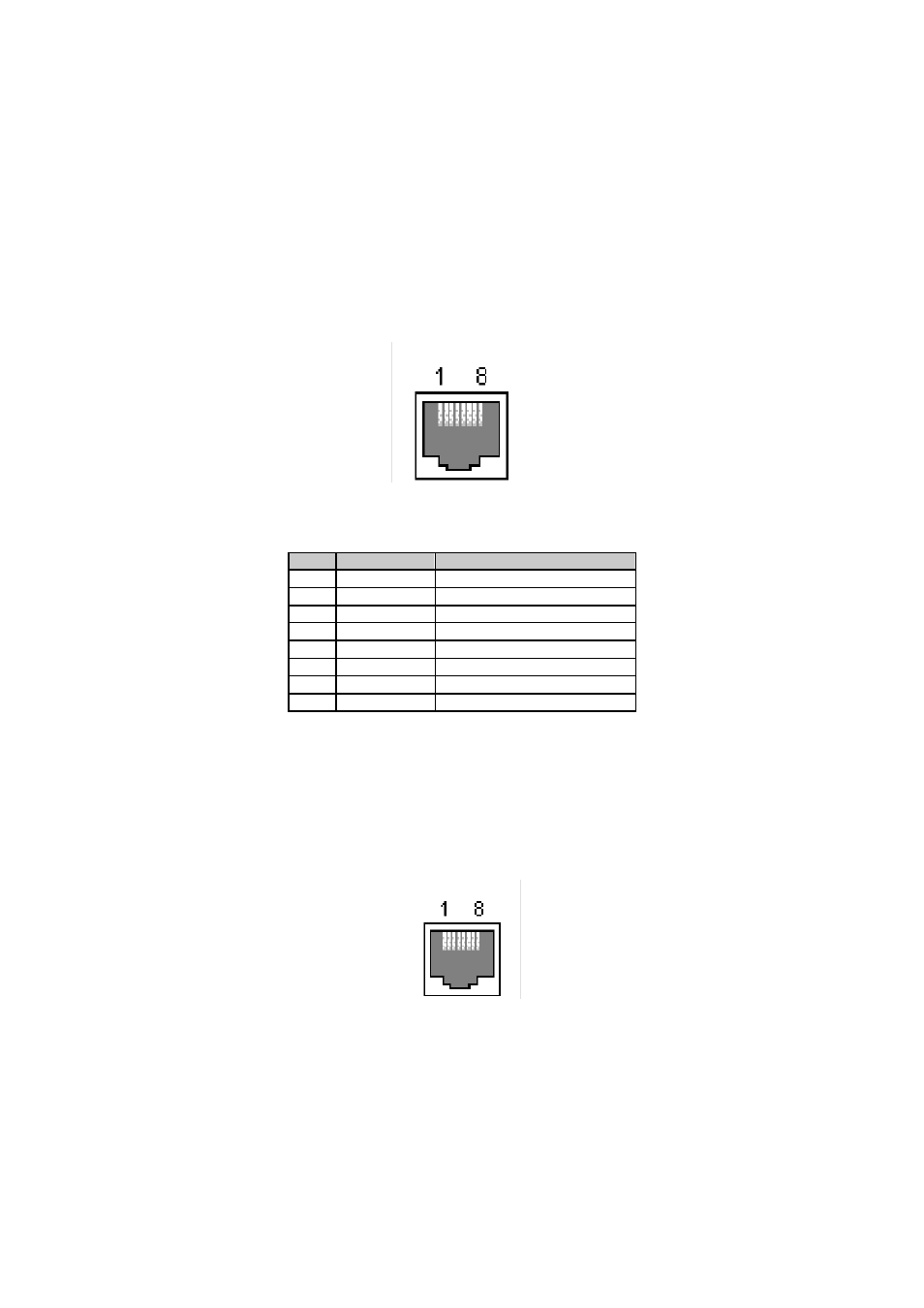

Figure A-1 Pin layout of the RJ45 connector
Table A-1 Pin assignment of the RJ45 connector for Ethernet
Pin Description Color
1 Tx+ White with orange
2 Tx- Orange
3 Rx+ White with green
4 NC Blue
5 NC White with blue
6 Rx- Green
7 NC White with brown
8 NC Brown
A 1.2. Console and Serial port pin-outs
The pin assignment of the PSx10W DB9 connector is summarized in Table A-2. Each pin has a
function according to the serial communication type configuration.
Figure A-2 Pin layout of the RJ-45 connector
