77
6. System Statistics
The Pro Series Web interface provides system statistics menus. The user can use these menus to
access statistical data and tables stored in the Pro Series memory. Network interfaces statistics and
serial ports statistics display statistical usage of the link layer, lo, eth and serial ports. IP, ICMP, TCP
and UDP statistics display usages of four primary components in the TCP/IP protocol suite.
6.1. Network Interfaces Statistics
Network interfaces statistics displays basic network interfaces usage of the Pro Series, lo and eth0. lo
is a local loop back interface and eth0 is a default network interface of Pro Series.

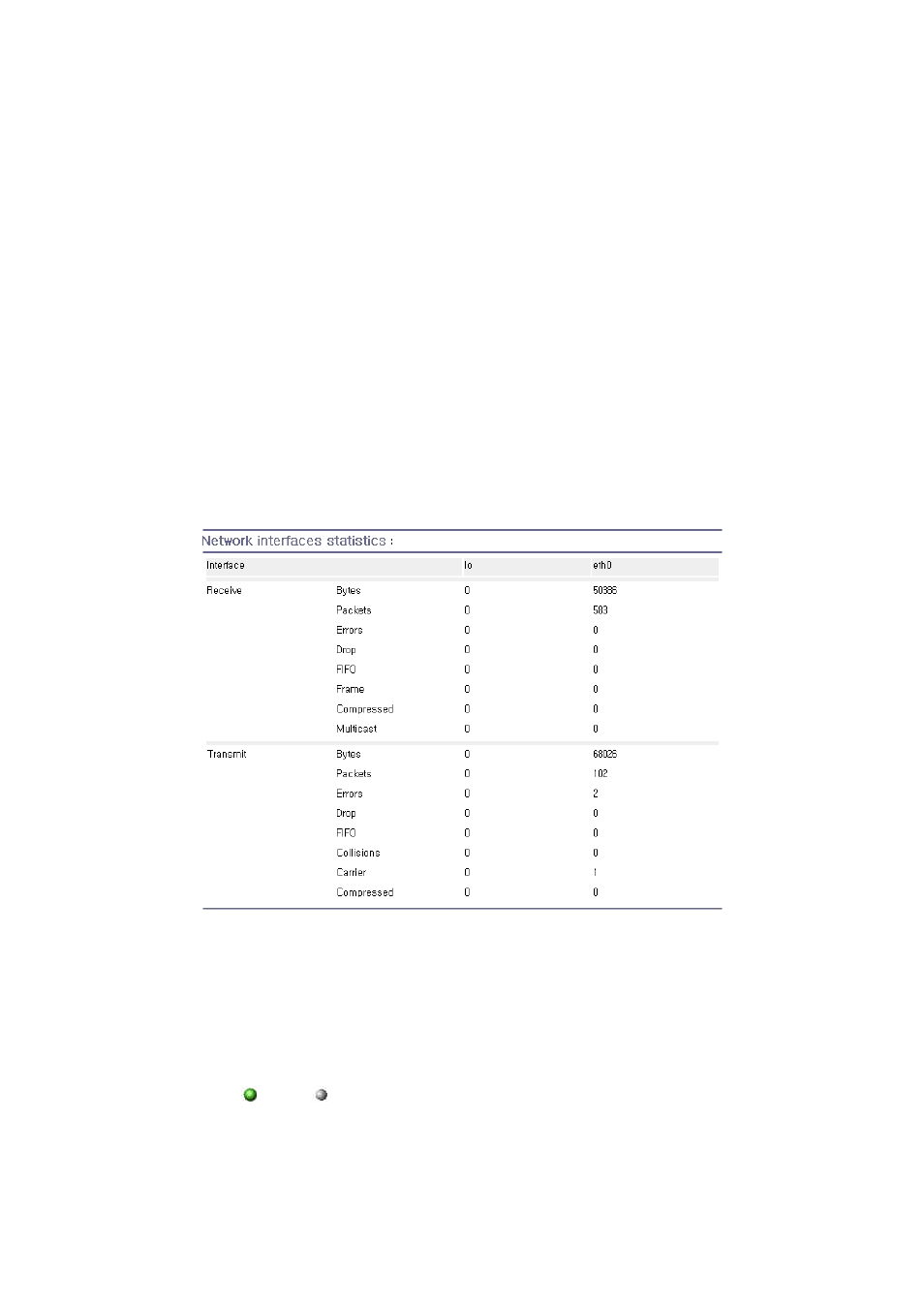

Figure 6-1 Network interfaces statistics
6.2. Serial Ports Statistics
Serial ports statistics displays the usage history of 32 serial ports, baud rate configurations and each
port’s pin status. ( : On : Off )
