Connecting the hardware – SENA PS210W User Manual
Page 14
14

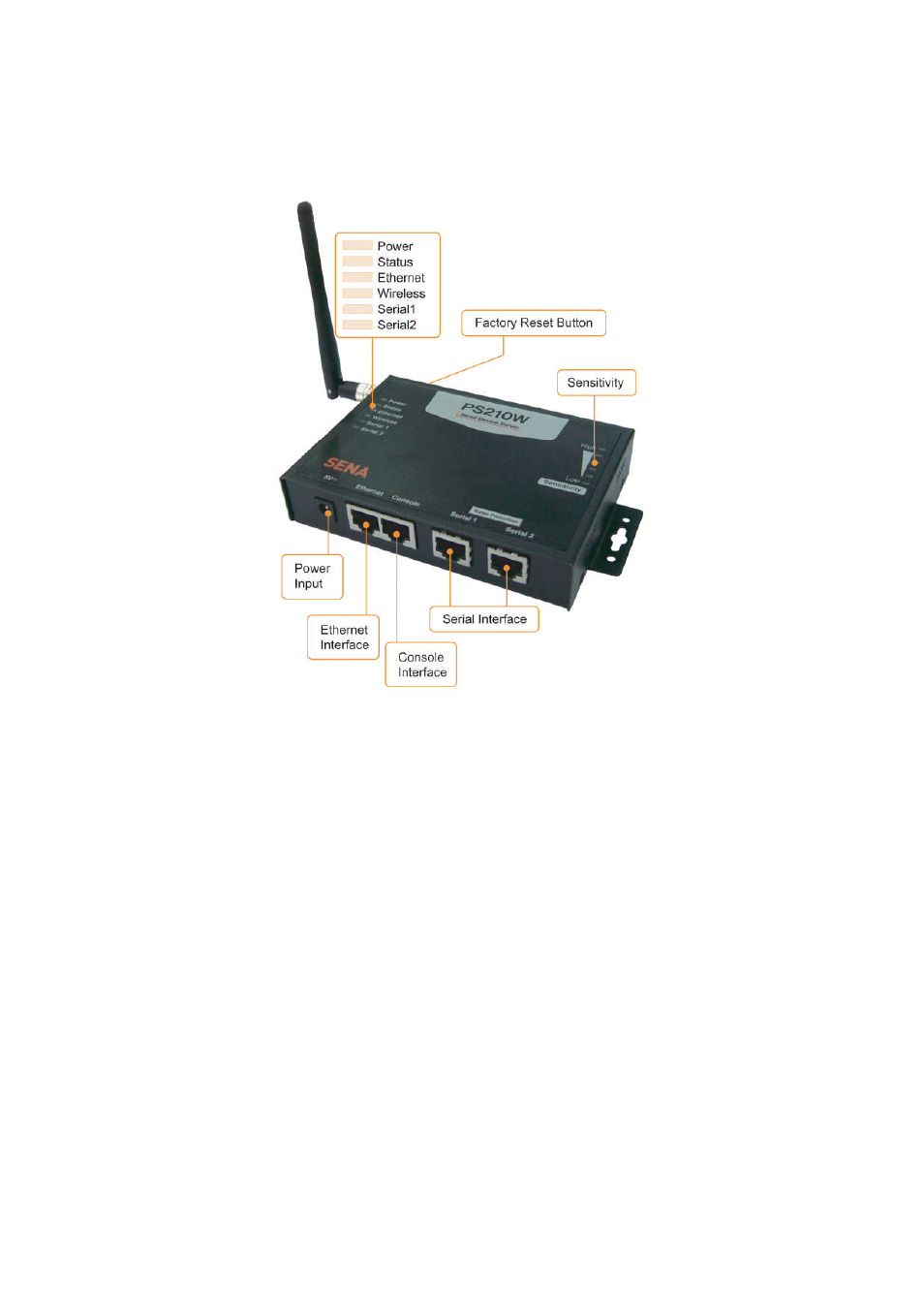

Figure 2-2 The panel layout of the PS210W
2.2. Connecting the Hardware
This section describes how to connect the Pro Series to your equipment for initial testing.
- Connect the Pro Series to an Ethernet hub or switch
- Connect the device
- Connect the provided power source to the Pro Series
2.2.1. Connecting to the network
Plug one end of the Ethernet cable to the Pro Series Ethernet port. The other end of the Ethernet
cable should be connected to a network port. If the cable is properly connected, the Pro Series will
have a valid connection to the Ethernet network. This will be indicated by:
The [Ethernet] lamp will blink to indicate incoming/outgoing Ethernet packets
