61

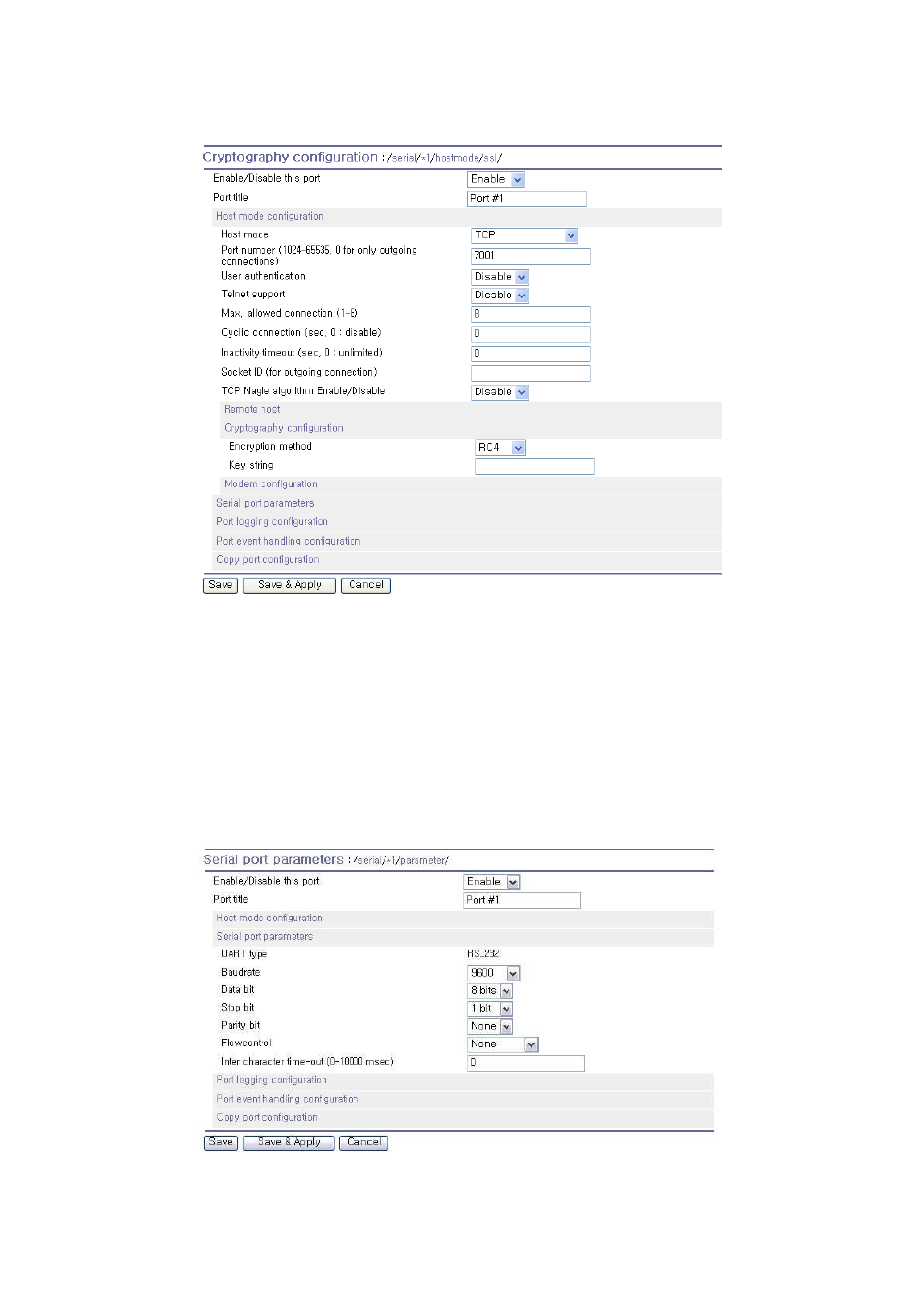

Figure 4-13 RC4 Cryptography configuration
4.2.6. Serial port parameters
To connect the serial device to the Pro Series serial port, the serial port parameters of the Pro Series
should match exactly to that of the serial device attached. The serial port parameters are required to
match this serial communication. The parameters required for the serial communication are: UART
type, baud rate, data bits, parity, stop bits, flow control DTR/DSR behavior and inter-character timeout.
Figure 4-14 Serial parameter configuration
