13

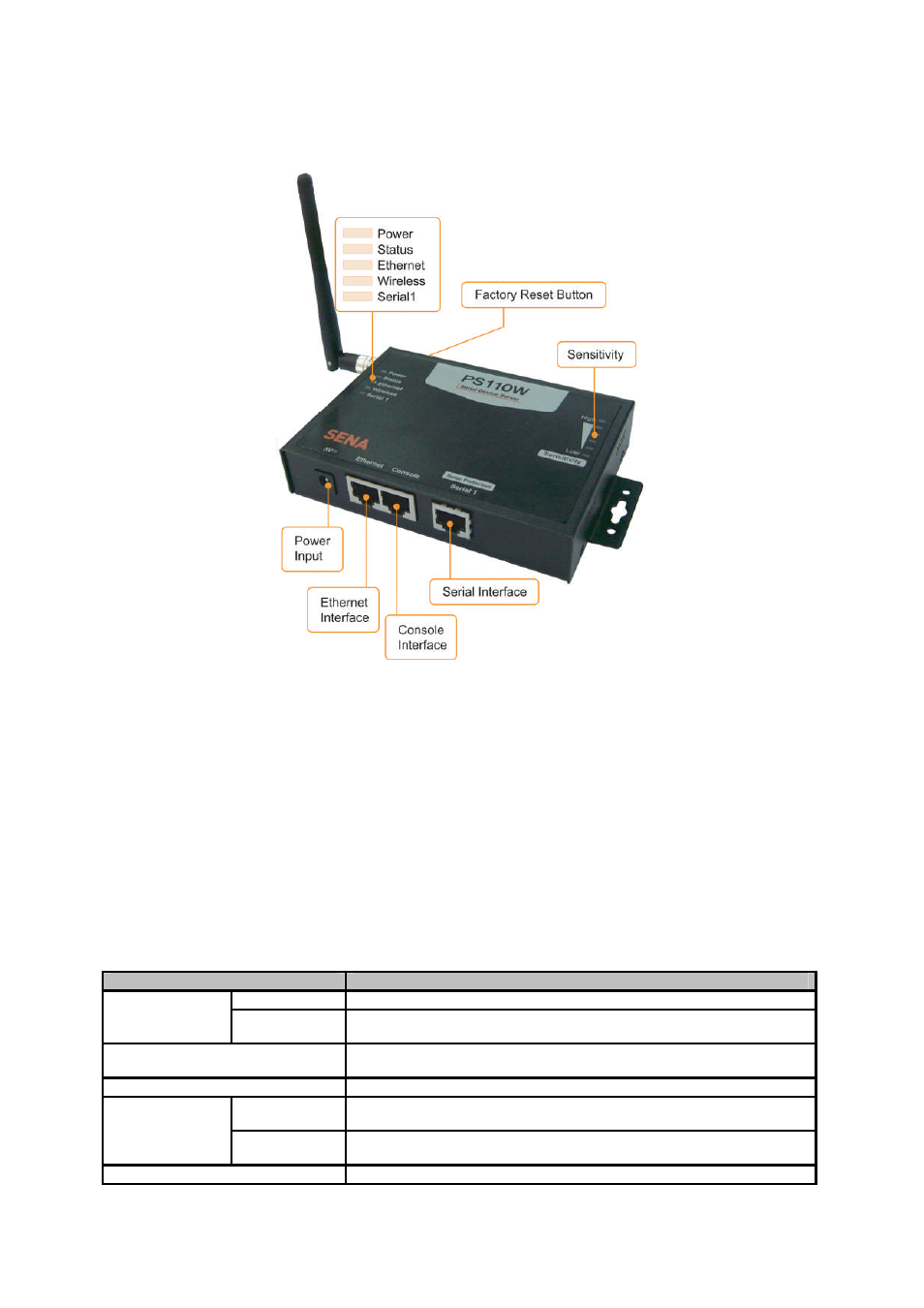

Figure 2-1 The panel layout of the PS110W
2.1.2. PS210W Panel Layout
The PS210W has 6 LED indicator lamps for status display and 6 LED indicator lamps for sensitivity.
There is a factory reset switch front panel of PS210W and the user can use this switch to restore
factory default configuration.
Table 2-2 LED indicator lamps of the PS210W
Lamps Function
Power Turned on to RED if power is supplied Status
Status Turned on to Green if IP assignment and blinks if IP error. (Refresh 5
sec)
Ethernet Blinks whenever there is any incoming and outgoing data stream through
the Ethernet of the PS110W
Wireless Turned on to GREEN if WiFi is connected. Refreshed every 20 seconds.
Serial 1 Blinks whenever there is any incoming and outgoing data stream through
the serial port(1) of the PS210W Serial Port
Serial 2 Blinks whenever there is any incoming and outgoing data stream through
the serial port(2) of the PS210W
Sensitivity Display AP’s sensitivity. Refreshed every 20 seconds
