18 ProBee-ZS10 User Guide Rev.1.5
2.4 Using ProBee Manager for Configuration
It is possible to set or get the configurations of the ZS10 using ProBee Manager. This PC utility helps that
a user can configure several setting values of local node and remote node easily without a terminal
program. It is possible to export current configuration and import it to other nodes. It is also possible to
restore to factory default configuration.
It provides users with functions to upgrade firmware of not only local node but also remote node and
clone the firmware of local node to remote node.
2.4.1 Serial Port Open

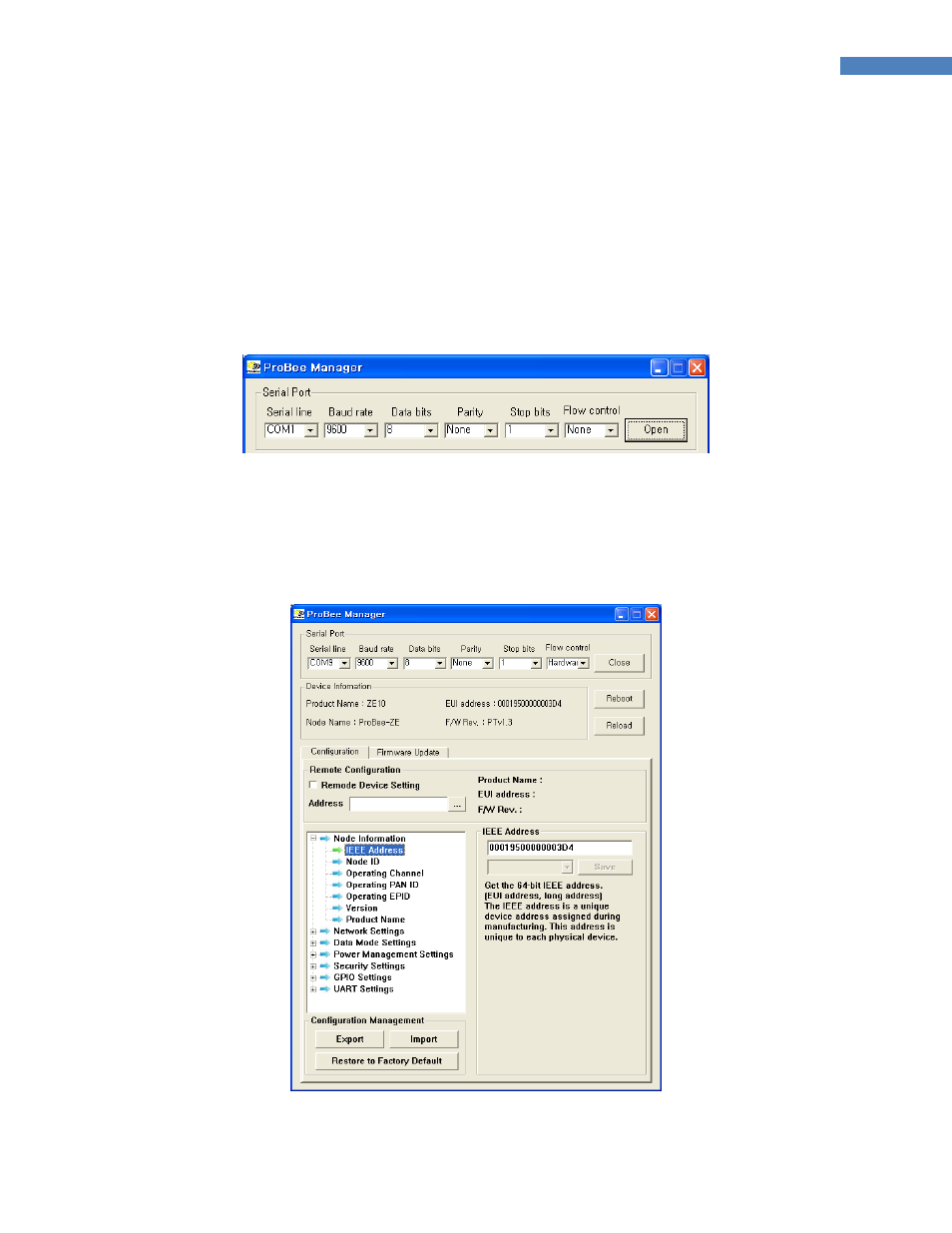

Figure 2-11 ProBee Manager Serial Port Open
To connect to local node through serial port, please follow the steps as below:
z Set ‘Serial Port’ properties corresponding to the UART configuration of local node.
z Click ‘Open’ button.
ProBee manager displays the main window like Figure 2-12 after connecting to local node.
Figure 2-12 ProBee Manager Main Window
