Step2. Slide the battery pack into the ZS10 slot.

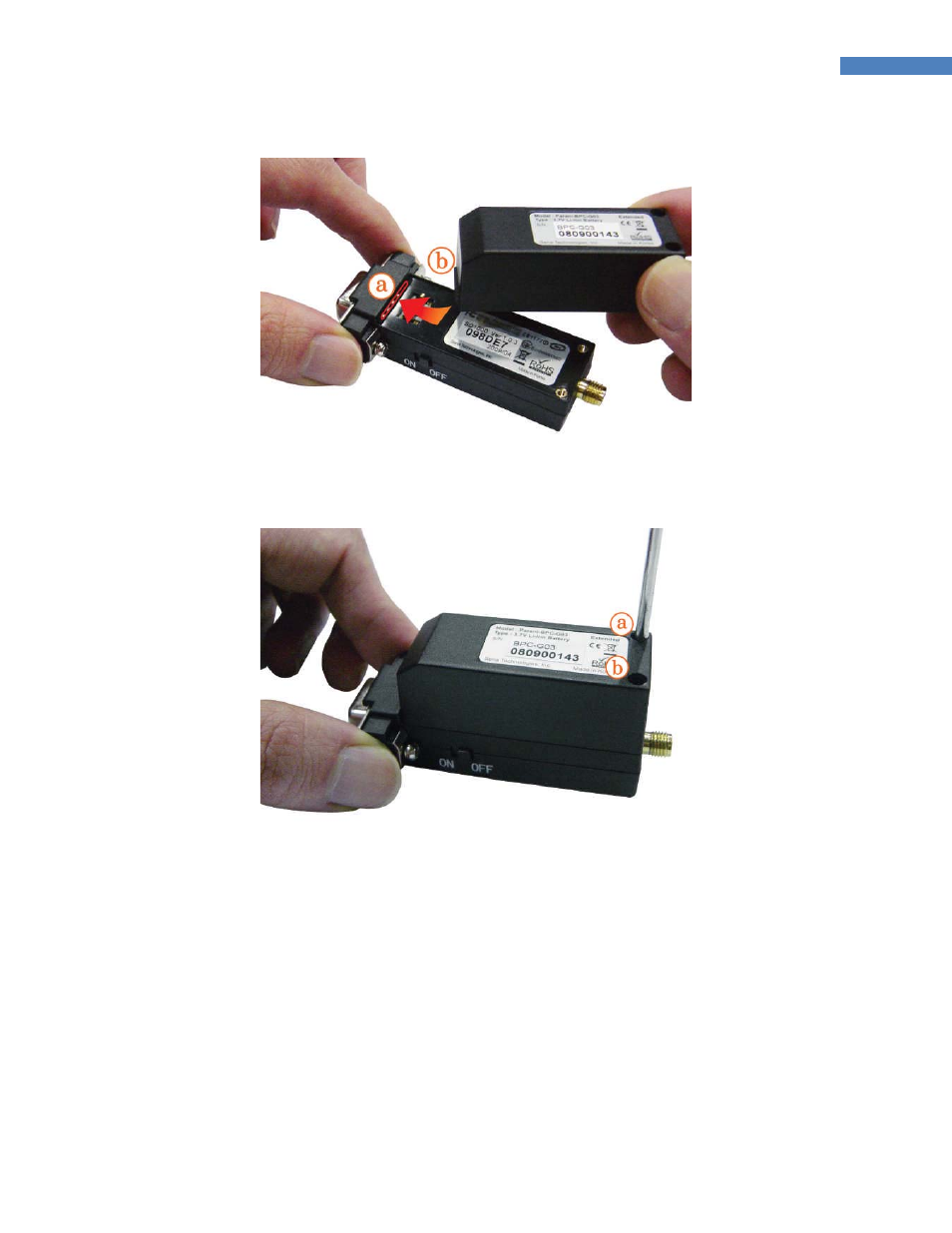

Figure 2-6 Attach the battery pack


Step3. Fasten the battery pack to the ZS10.

Figure 2-7 Fasten the battery pack


2.2 Configuration

2.2.1 LED
RS232-Tx/Rx LED will flash accordingly when data is transmitted. For small data transmissions, it may be
hard to recognize the quick flashing action of the LED. Charge LED and Low battery LED will be off, if you
don’t use battery pack. The LED indicators are as follows.
