Exploded view – S&B Filters Intake Elbow 76-1004 User Manual
Page 4

ITEM
QTY.
DESCRIPTION
P/N
A
2
Washer, Flat, 5/16”
AI1073-00
B
1
Bolt, Hex, 5/16-18x1/2”
AI1078-00
C
2
Nut, Hex, Nylock, 8mm
AI1401-00
D
4
Washer, Flat, 8mm
AI1402-00
E
2
Cap Screw, Socket, M8x90mm
AI1424-00
F
1
Intake Elbow
AL1174-00
G
8
Pipe Plug, 1/8”NPT
AI1398-00
H
2
Stud, Double End, M8x85mm
AI1408-00
I
2
Gasket, Flat, 4-Hole
AI1532-00
J
2
Stud, Double End, M8x95mm
AI1400-00
K
2
Nut, Hex, Jam, 8mm
AI1405-00
L
1
Zip-Tie, Black, 11”
AI1212-00
M
1
Rubber Washer
AI1435-00
N
1
Loctite Thread Locker
AI1406-00
O
1
Silicone Hump Hose
AI1530-00
P
1
T-Bolt Clamp,
AG1031-00
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 -

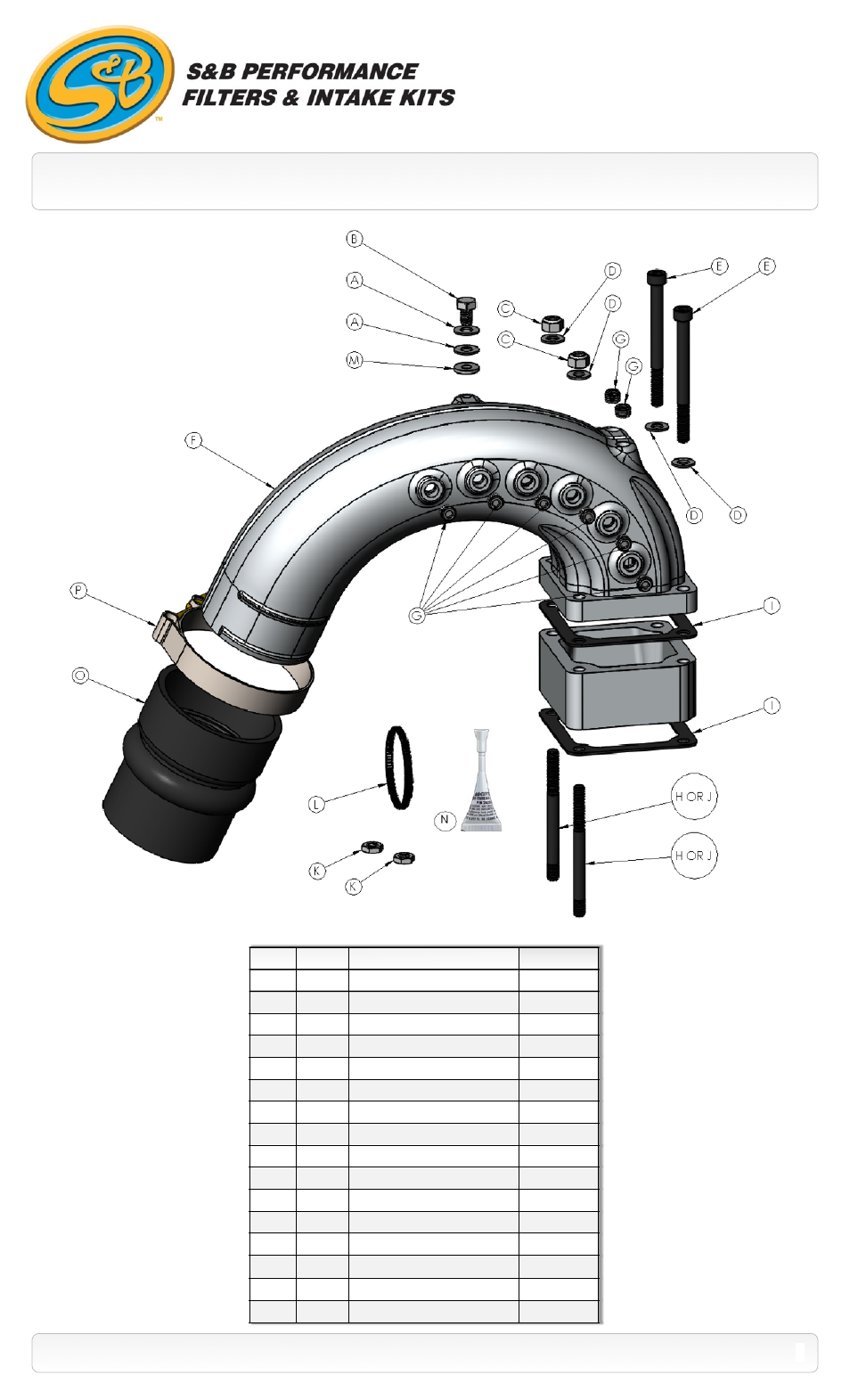

EXPLODED VIEW
AM0
1
7
3
-0
0
R
e
v.
A
1
2
/1
9
/1
1
4
P/N: 76-1004
