www.powersolve.co.uk

Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: [email protected]

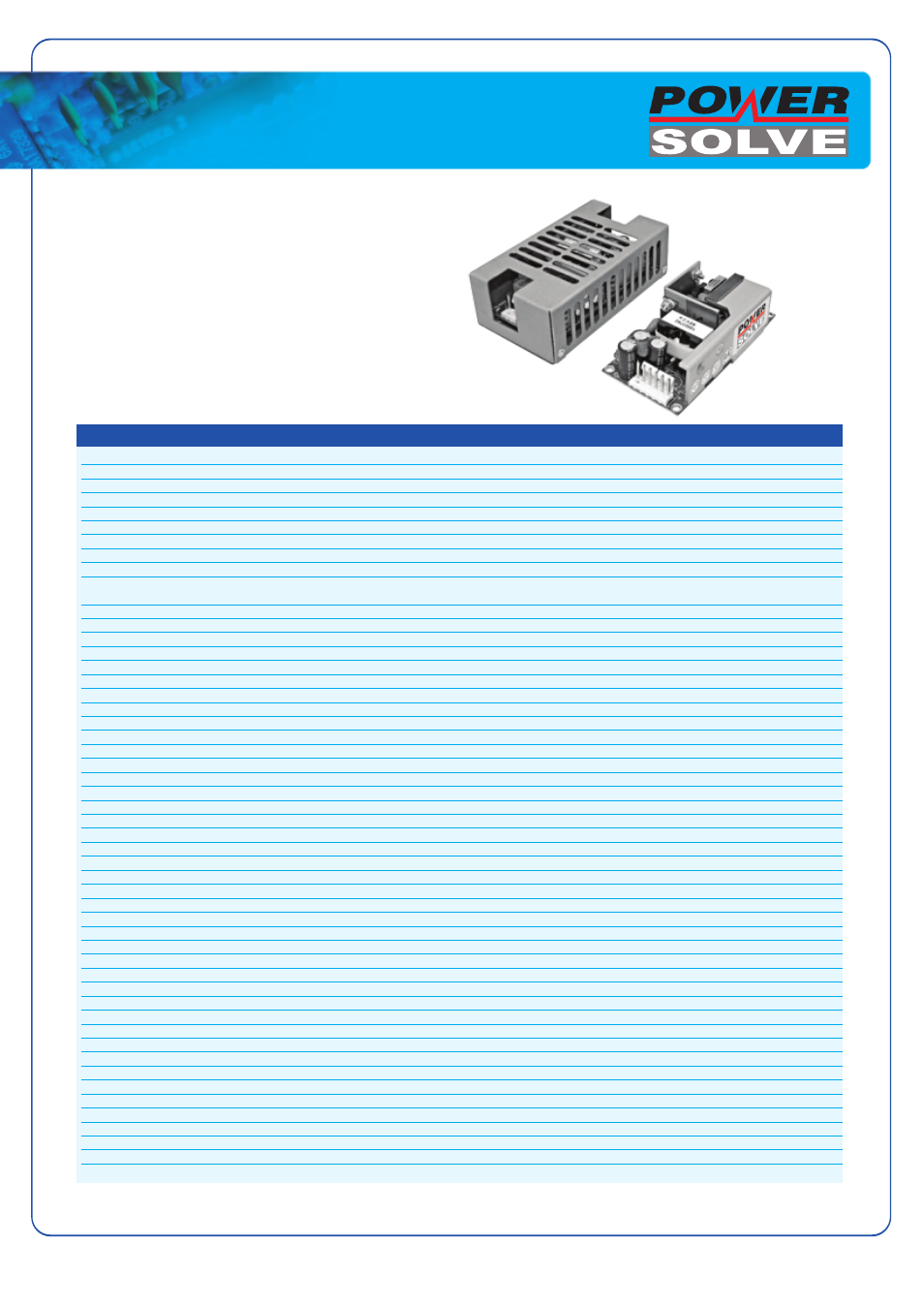

AC-DC Converters

MHP Series

40W-100W

Features

Compact Size - High Power Density

Industrial & Medical Approvals

Low Leakage Current

Level B Conducted Emissions

EN61000-3-2, -3 Compliant

Convection Cooled

Class II Approved 40-60 W Models

INPUT
Input Voltage

90-264 VAC (120-370 VDC)

Input Frequency

47-63 Hz; 440 Hz

Input Current

40 W: 0.4 A max at 230 VAC, 60 W: 0.6 A max at 230 VAC, 100 W: 0.9 A max at 230 VAC

Inrush Current

40 A max at 230 VAC

Earth Leakage Current

<100

µ

A at 115 VAC, <200

µ

A at 230 VAC

Input Protection

Internal 3.15 A fuse in line and neutral

OUTPUT
Output Voltage

See tables

Output Voltage Trim

±5% on 3.3 V & 5 V versions, ±10% on other single output models and V1 of multi-output models.
See note 1 for MHP40/60 models

Initial Set Accuracy

±1.0% V1, ±5% V2, V3 & V4

Minimum Load

See tables

Start Up Delay

2 s max

Start Up Rise Time

50 ms

Hold Up Time

16/75 ms min at 115/230 VAC

Line Regulation

±0.5%

Load Regulation

±1% single output models; ±3% V1, ±5% V2 & V3 MHP40/60 multi-output models. ±1% V1 & V2, ±5% V3 & V4 MHP100

Cross Regulation

2% on MHP40/60 only

Over/Undershoot

None at turn on/off

Transient Response

4% max. deviation, recovery to within 1% in 500

µ

s for a 25% load change

Ripple & Noise

1% pk-pk, 20 MHz bandwidth

Overvoltage Protection

115-135% Vnom, recycle input to reset

Overload Protection

110-150% on primary power limit, auto recovery

Short Circuit Protection

Trip and restart (Hiccup mode)

Temperature Coefficient

0.05%/°C

GENERAL
Efficiency

80-85% depending on model

Isolation

4000 VAC Input to Output, 1500 VAC Input to Ground, 500 VAC Output to Ground

Switching Frequency

70 kHz typical

Power Density

60 W: 6.25 W/In

3

, 100 W: 7.40 W/In

3

MTBF

250 kHrs per MIL-HDBK-217F

ENVIRONMENTAL
Operating Temperature

0 °C to +70 °C. Refer to derating curves for specific operating limitations.

Cooling

Convection & fan cooled ratings (see derating curves)

Operating Humidity

95% RH, non-condensing

Storage Temperature

-20 °C to +85 °C

Operating Altitude

3000 m

Shock

30 g pk, half sine, 6 axis

Vibration

2 g rms, 5 Hz to 500 kHz, 3 axis

EMC & SAFETY
Emissions

EN60601-1-2, EN61204-3, FCC 20780, EN55022 & EN55011, level B conducted

Harmonic Currents

EN61000-3-2

Voltage Flicker

EN61000-3-3

ESD Immunity

EN61000-4-2, level 2 Perf Criteria A

Radiated Immunity

EN61000-4-3, 10 V/m Perf Criteria A

EFT/Burst

EN61000-4-4, level 3 Perf Criteria A

Surge

EN61000-4-5, level 3 Perf Criteria A

Conducted Immunity

EN61000-4-6, 10 V Perf Criteria A

Dips & Interruptions

EN61000-4-11, 30% 10 ms, 60% 100 ms, 100% 5000 ms Perf Criteria A, B, B

Safety Approvals

EN60950, UL60950, CSA 22.2 601.1, EN60601-1, UL60601-1, CCC pending, contact sales

Electrical Specification
