AC-DC Converter
PP350 & PP500: Remote Control - PSU can be turned ON/OFF using the remote control function
PP350 & PP500: P-OK Control - POK signal uses open drain MOSFET control, Max. 30Vds, 0.1A

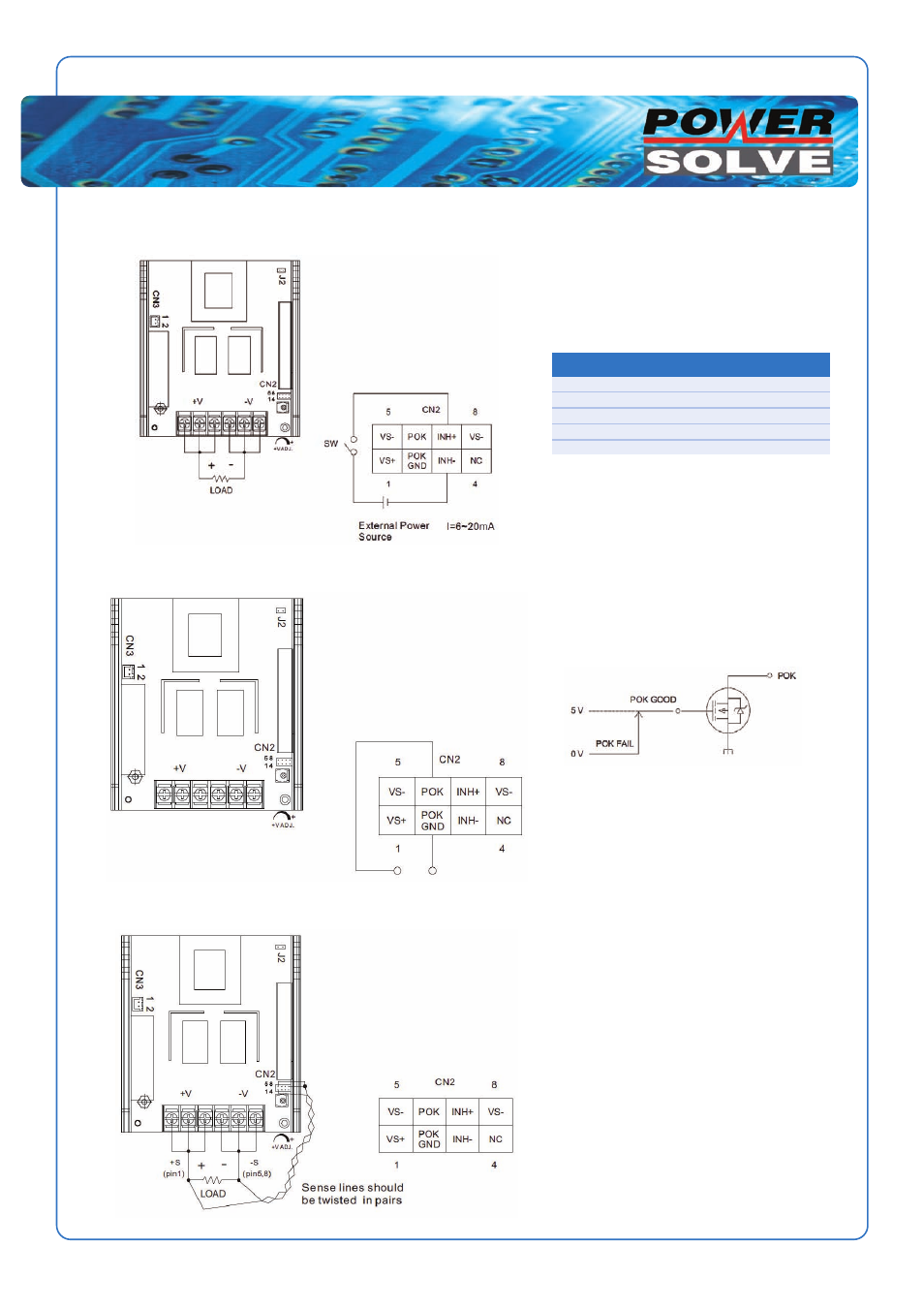

J2 Pin & CN2 Connections
J2
INH+(pin 7)/INH-(pin 3) Output Status
Open
SW ON (>2.5V)
ENABLE
Open
SW OFF (<0.8V)
DISABLE
Closed
SW ON (>2.5V)
DISABLE
Closed
SW OFF (<0.8V)
ENABLE
PP350 & PP500: Remote Sense - compensates voltage drops in the load wiring up to 0.5V
