AC-DC Converter

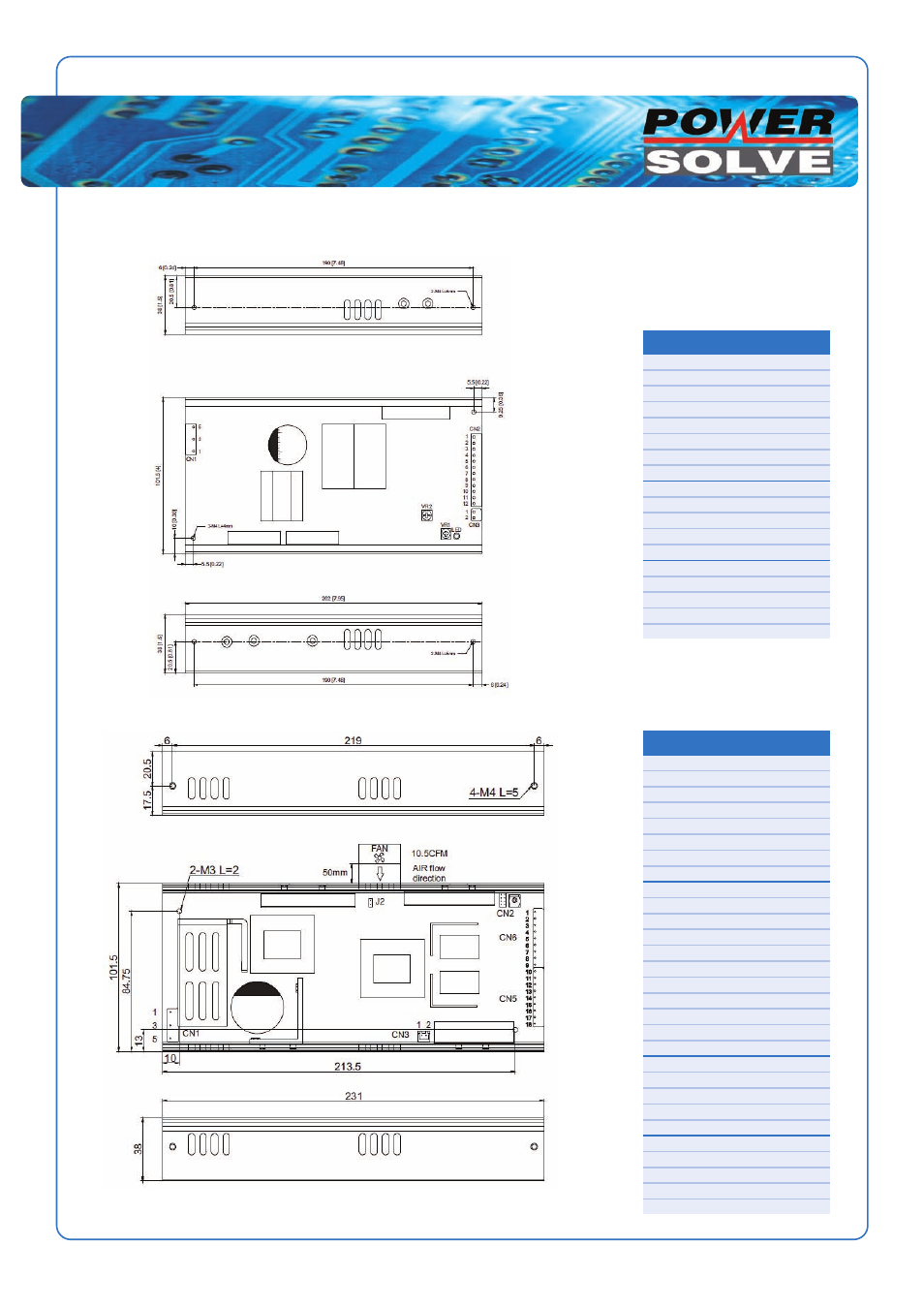

PP200: 202(L) x 101.5(W) x 38(H) mm; Weight: 700g; (Option: Screw terminals for output: Model No. PP200T-XX)
PP350: 231(L) x 101.5(W) x 38(H) mm; Weight: 1060g; (Option: Screw terminals for output: Model No. PP350T-XX)
Connection Details
CN1: AC Input Connector
Pin Function
1
Earth
2 No Pin
3 Neutral
4 No Pin
5 Live
Mating connector: JST VHR-5N or equiv.
CN3: DC Output Connector
Pin Function
1
Com
2 N.C.
Mating connector: JST VHR-2N or equiv.
CN2: DC Output Connector
Pin Function
1-6 -Vo
7-12 +Vo
Mating connector: JST VHR-6N (2 off)
Connection Details
CN1: AC Input Connector
Pin
Function
1 Earth
2 No Pin
3 Neutral
4 No Pin
5 Live
Mating connector: JST VHR-5N or equiv.
CN2: Auxiliaries Connector
Pin
Function
1 +VS
2 S GND
3 -INH
4 N/C
5 -VS
6 POK
7 +INH
8 -VS
Mating connector: JST PHD-08VS or equiv.
CN3: Fan Power Connector
Pin
Function
1 S GND
2 +12V
Mating connector: JST XHP-2 or equiv.
CN5/CN6: DC Output Connector
Pin
Function
1-9 -Vo
10-18 +Vo
Mating connector: JST VHR-9N or equiv.
