All control methods are available without any changes in the hardware or software.
The control mode of inverter is selected by parameter P1.1.11 Input set, which has eight alternative
settings: MS2 (stop-limit), MS2/MS3 (slow-limit), EP2 (stop-limit), EP2 (slow-limit), EP3, MS4, MS5 and
AU (automation control). (See Chapter 5: parameter descriptions.) The parameter assigns digital inputs
S1, S2 and DID3-DID5. It is not possible to change the functions of the inputs separately. Digital inputs
DID1 and DID2 are for direction commands, so DID1 = S1, DID2 = S2 in every case. Digital inputs (DID3-
DID5) are automatically assigned according to the selected mode. In mode MS5, the MAX speed will be
activated when DID4 is off and DID5 is still on. The state of inputs can be checked from parameter V2.3.
Control Mode MS2 (stop-lim) MS2 (slow-lim) EP2 (stop-lim) EP2 (slow-lim) EP3 MS4 MS5 AU (Ain1)
Parameter P1.1.11 0 1 2 3 4 5 6 7
Signal Terminal
S1 X1:38 S1 S1 S1 S1 S1 S1 S1 S1
S2 X1:39 S2 S2 S2 S2 S2 S2 S2 S2
DID3 X1:40 MAX MAX AP AP AP MS2 MS2 S11/S21
DID4 X1:41 S12 S11/S21 S12 S11/S21 HOLD MS3 MS3/MAX S12
DID5 X1:42 S22 ES S22 ES S11/S21 MAX MS4 S22
S1 Drive command forward S2 Drive command reverse
AP Acceleration command HOLD Hold speed command
S11 Slowdown limit forward S21 Slowdown limit reverse
S12 Stop-limit forward S22 Stop-limit reverse
S11/S21 Common slowdown limit MS2 Multistep Frequency2
MS3 Multistep Frequency3 MS4 Multistep Frequency4
MAX Maximum frequency ES External stop
Desired speed levels for multi-step control mode are selected with following parameters
Speed Parameter Input
Speed 1 P1.1.4 S1/S2
Speed 2 P1.1.8 MS 2
Speed 3 (only available in MS4) P1.1.9 MS 3
Speed 4 (only available in MS5) P1.1.10 MS 4
Speed 5 P1.1.5 MAX
2.6.1 MS2-control

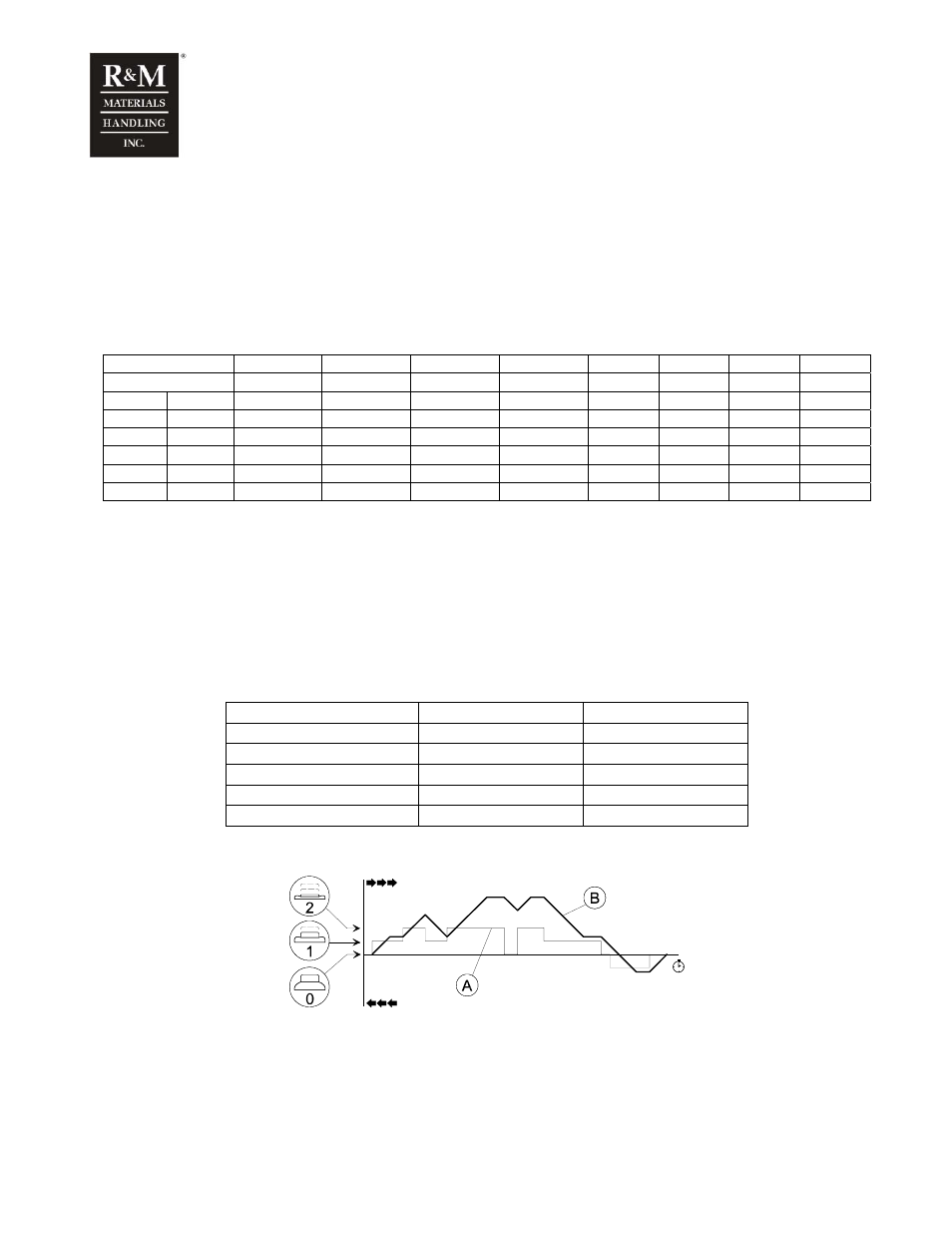

c_coms2a
A. Pushbutton / controller position
B. Speed
0) “decelerate to zero”
1) step 1 “drive minimum speed”
2) step 2 “drive maximum speed”
