6 PARAMETER DESCRIPTIONS
This manual describes the parameters software version D2S1V051. Underneath the control panel there
is sticker for software version.
6.1 General Description
Parameters are assorted to
Groups. All Groups are not
always listed in control panel.
Groups are shown in the
control panel according to
password level and selected
functions. This feature makes
the viewable parameter menu
simple and only needed
parameters are shown.
Letter front of the code number
describes variable type
P = Parameter
G = Group
V = Value
M = Menu
S = System
F = Active
Fault
H = Fault History

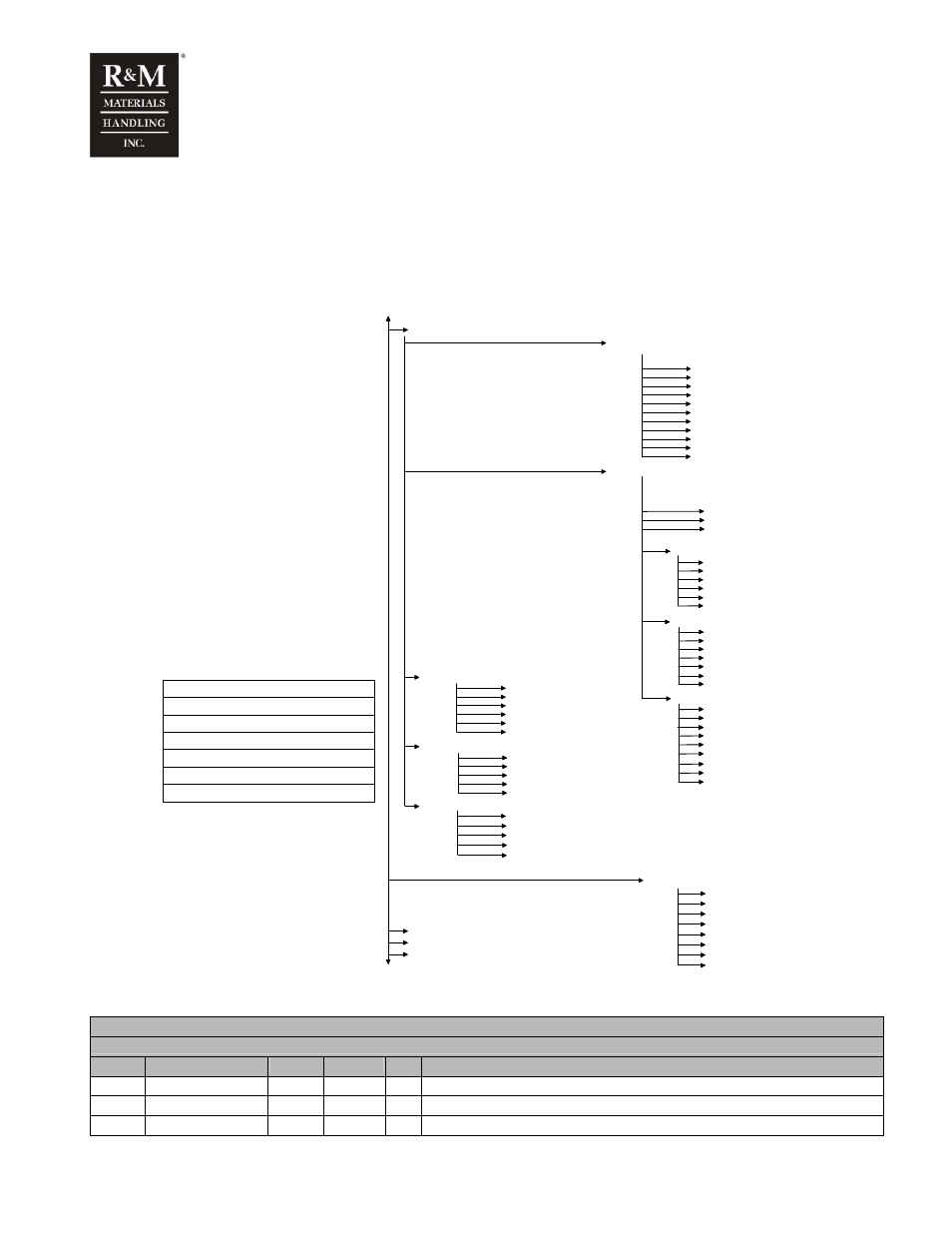

M1 Parameters
G1.1 General Parameters
G1.2 Motor Parameters
G1.5 Expert
G1.4 Protection
G1.3 I/O Parameters
+ M3 System Menu
+ M5 Fault History
+ M4 Active Faults
M2 Monitoring
P1.1.5 Max Freq
P1.1.6 Reverse Plugging
P1.1.7 Stop Function
P1.1.8 MSFreq2/Slowdown
P1.1.9 Multistep Freq3
P1.1.10 Multistep Freq4
P1.1.11 Input Set
P1.2.4.3 Nom Flux Curr
P1.2.4.4 Current Limit
P1.2.4.5 Motor Cos Phi
P1.2.4.6 Autotuning
G1.2.4 Motor Nom Values
G1.2.5 U/f Settings
P1.2.5.1 Zero Freq Volt
P1.2.5.2 U/f Mid Volt
P1.2.5.3 U/f Mid Freq
P1.2.5.4 Torque Boost
P1.2.5.5 IrAdd Motor
P1.2.5.6 IrAdd Generato
P1.2.5.7 Rs Voltage Drop
G1.2.6 Brake control
P1.2.6.1 Start Current
P1.2.6.2 Brk Opening De
P1.2.6.3 Start DC-Time
P1.2.6.4 Stop DC-Time
P1.2.6.5 Stop DC-Freq
P1.2.6.6 Start Freq S1
P1.2.6.7 Start Freq S2
P1.2.6.8 Brake Stop Freq
P1.2.6.9 Min Freq Bias S
P1.3.1 ROA1
P1.3.2 Ain1 Min Volt
P1.3.3 Ain1 Max Volt
P1.3.4 Aout Function
P1.3.5 Aout Zero Curr
P1.3.6 Aout Nom Curr
P1.4.1 Motor Therm Prot.
P1.4.2 MotAmbTempFactor
P1.4.3 MTP f0 Current
P1.4.4 MTP Motor T
P1.4.5 Motor Duty Cycle
P1.5.1 Slowdown mode
P1.5.2 S-Curve
P1.5.3 Ramp Stretching
V2.1 K7
V2.2 ROA1
V2.3 DID States
V2.4 Ain1 Input
V2.7 Heat Sink Temp
V2.8 DC-link Voltage
V2.9 Freq Ref
V2.10 Output Frequency
P1.5.4 Switching freq
P1.5.5 Brake Chopper
P1.2.4.2 Motor Nom Cur
P1.2.4.1 Motor Nom Fre
P1.1.1 Password
P1.1.2 Accel Time
P1.1.3 Decel Time
P1.1.4 Min Freq
P1.2.3 Number of Motor
P1.2.2 Motor Selection
P1.2.1 Motor Nom Volt
6.2 Parameter descriptions
P1 Parameters
G 1.1 General Parameters
Code Name Min Max Unit Description
P1.1.1 Password 0 9999 The password 2156 makes group G1.3 visible
P1.1.2 Acceleration Time 0.0 20.0 s Time it will take to accelerate from zero to the set maximum frequency
P1.1.3 Deceleration Time 0.0 20.0 s Time it will take to decelerate from max frequency to zero.
