2.2 Basic description
Inverter The specific crane features for the inverter hardware and the special software are achieved by combining the
experience and know-how of crane applications with the latest technology.
Crane user interface Interface with pre-designed locations for typical crane functions. The main part of this interface is carried out
by a terminal strip, which has separated sections for signals with main, control and electronics voltage levels.
Brake control Includes the brake contactor for disk brakes.
Electrical Braking Includes a braking transistor and a braking resistor.
Control modes Can be controlled by
the electronic potentiometer control with 2-step or 3-step pushbuttons,
the multistep control with 2-5-step controllers.
the automation control using any control device with an 0-10V output (computer, radio, PLC)
Limit switch functions Built-in slowdown (S11, S21) or stop limit switch (S12, S22) functions for both running directions.
Protections Includes a motor thermal protection, which is based on motor temperature measurement by Klixon placed in
motor windings. A great number of other protections included are shown in the technical data.
2.3 Main components
The main components are:
A1 Inverter
F7
Brake supply circuit breaker
K7 Brake contactor
R1 Braking resistor unit
Z1, Z2, Z3 Ferrite rings (Depending on EMC level, optional)
CM1 Filtering capacitors (Depending on EMC level, optional)
X1 Terminals
The most important external components are:
M1 Traveling motor(s)
Y1 Mechanical brake
B6 Thermal sensor for motor protection
Control devices (switches, pushbuttons etc.)
S11, S21, S12, S22 Limit switches

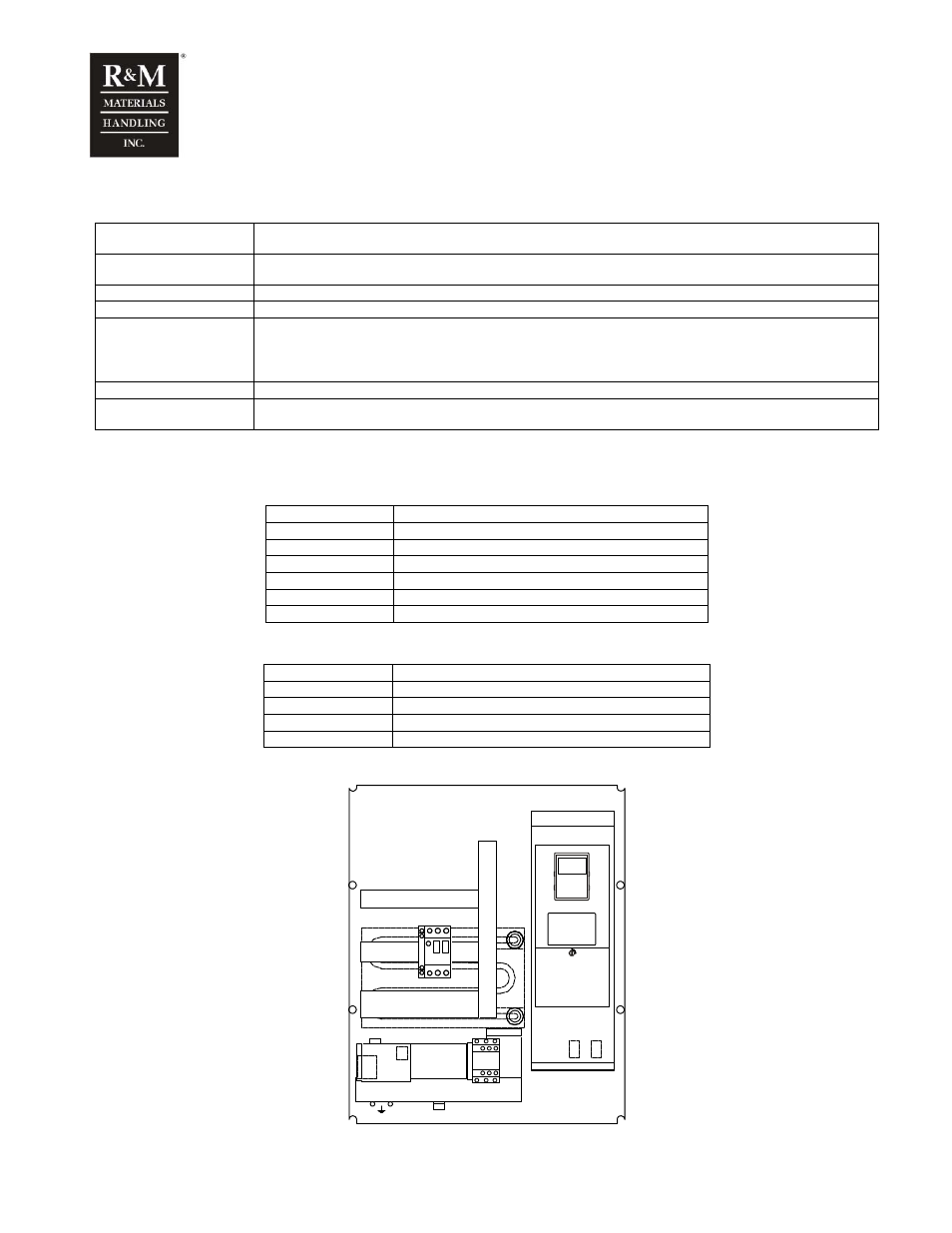

Example layout
F7
K7
X1
Z2 Z3 Z1 CM1
A1
