GW-7552 PROFIBUS/MODBUS GATEWAY User Manual (Version 1.40, Apr/2012) PAGE: 59
5.3.2 Space configuration in profibus：
The user can select check box of the module to show memory address
configuration of I/O data area in the Profibus master station, as shown in figure
58.

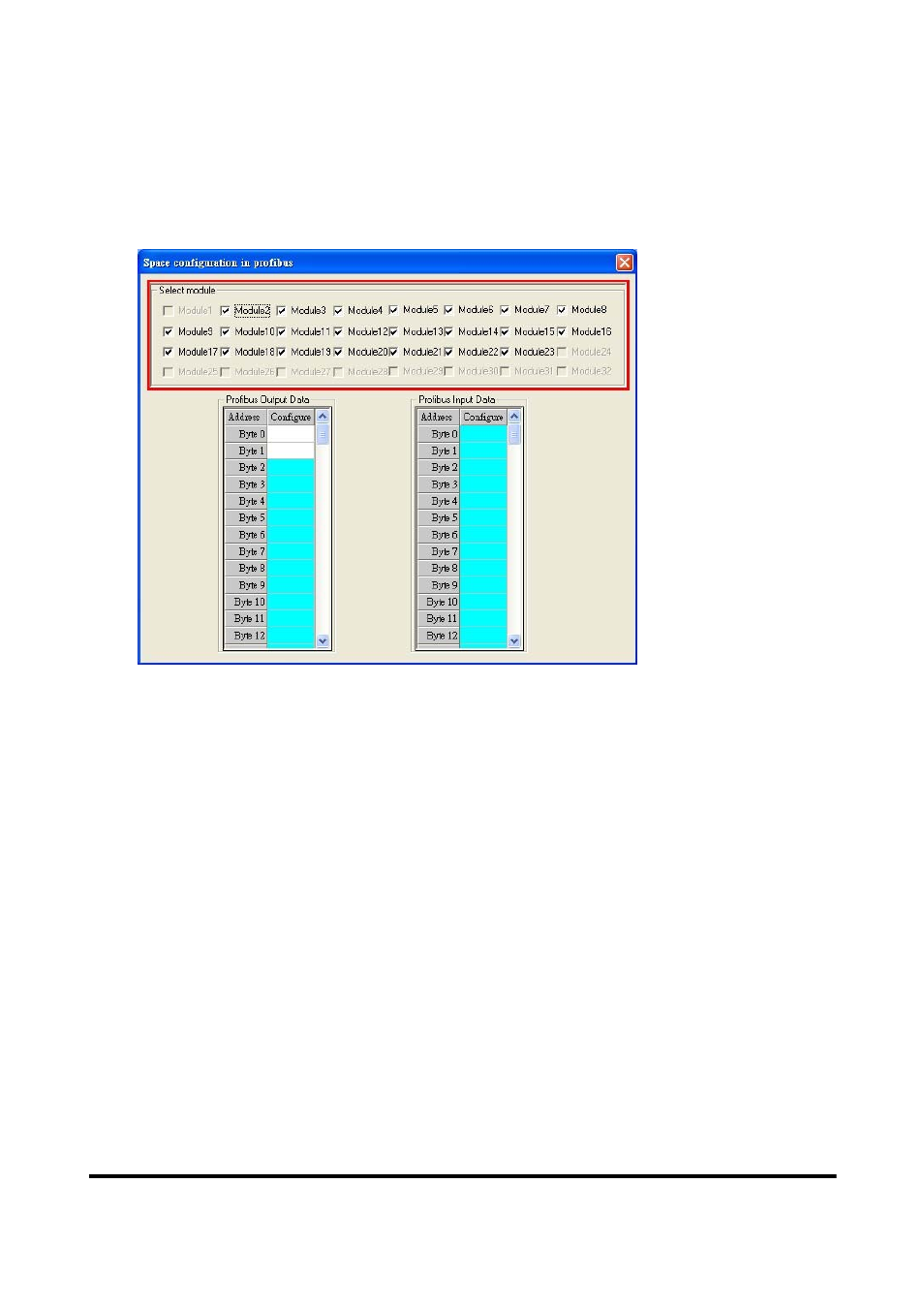

Figure 58 Space configuration in profibus
5.3.3 Space configuration in modbus：
The window of “Space Configuration in Modbus” divided into 3 parts to explain,
as shown in figure 59.
(1) Select module:
The user can select check box of the module to show memory address
configuration of DI/DO/AI/AO in Modbus network.
(2) Display interface:
The user can click “Write Output” button to show DO/AO memory
address configuration of output modules in Modbus network, click “Read
Input” button to show DI/AI memory address configuration of input
modules in Modbus network, click “Read Output” button to show DO/AO
memory address configuration of input modules in Modbus network.
(3) Color display:
The user can discriminate states of Modbus address configuration by
