GW-7552 PROFIBUS/MODBUS GATEWAY User Manual (Version 1.40, Apr/2012) PAGE: 56
5.2 Utility introduction
By this utility, the user can understand the module address of Profibus、Modbus
and the GW-7552. The utility also support users set safe value easily. It introduces
main window of the utility first as shown in figure 55.

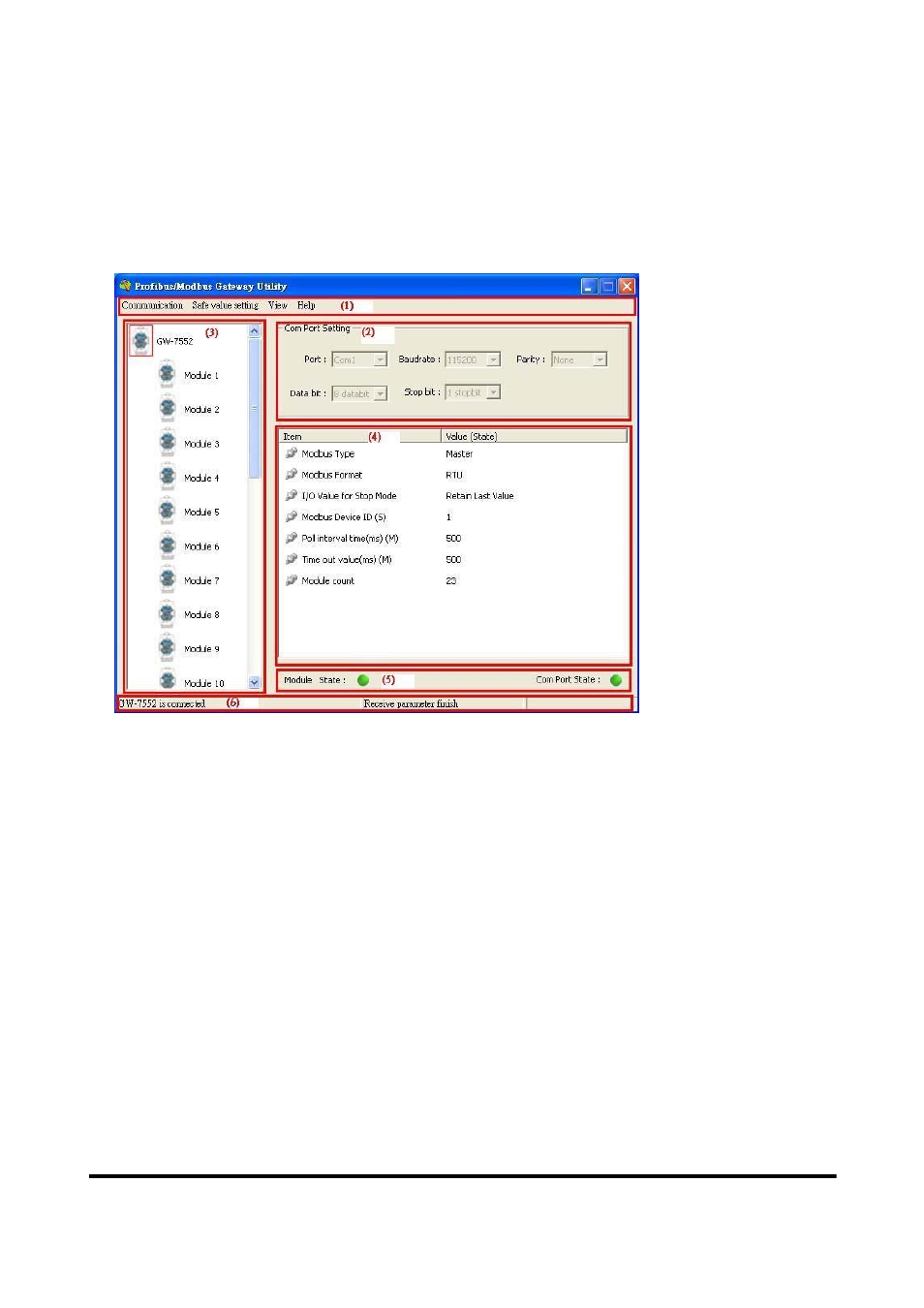

Figure 55 Main window of the utility
Main window of the utility has 6 parts, they are (1)Menu、(2)Com port settings、
(3)Module state、(4)Module parameters、(5)Connection status of GW-7552 and
com port、(6) Status bar, as shown in the below.
5.2.1 Menu：
1. Communication =>
a. Connect：Open Com Port and connect with the GW-7552
b. Disconnect：Close Com Port and disconnect with the GW-7552
c. Exit：Exit from the utility
2. Safe Value Setting =>
a. New Setting：Open a new safe value setting.
b. Load from file：Load a safe value setting from the file.
c. Load from device：Load a safe value setting from the GW-7552.
