GW-7552 PROFIBUS/MODBUS GATEWAY User Manual (Version 1.40, Apr/2012) PAGE: 58
There are 3 kinds of memory address configuration. They are (1)Space
configuration in device 、 (2) Space configuration in profibus 、 (3)Space
configuration in modbus, as shown in figure 56.

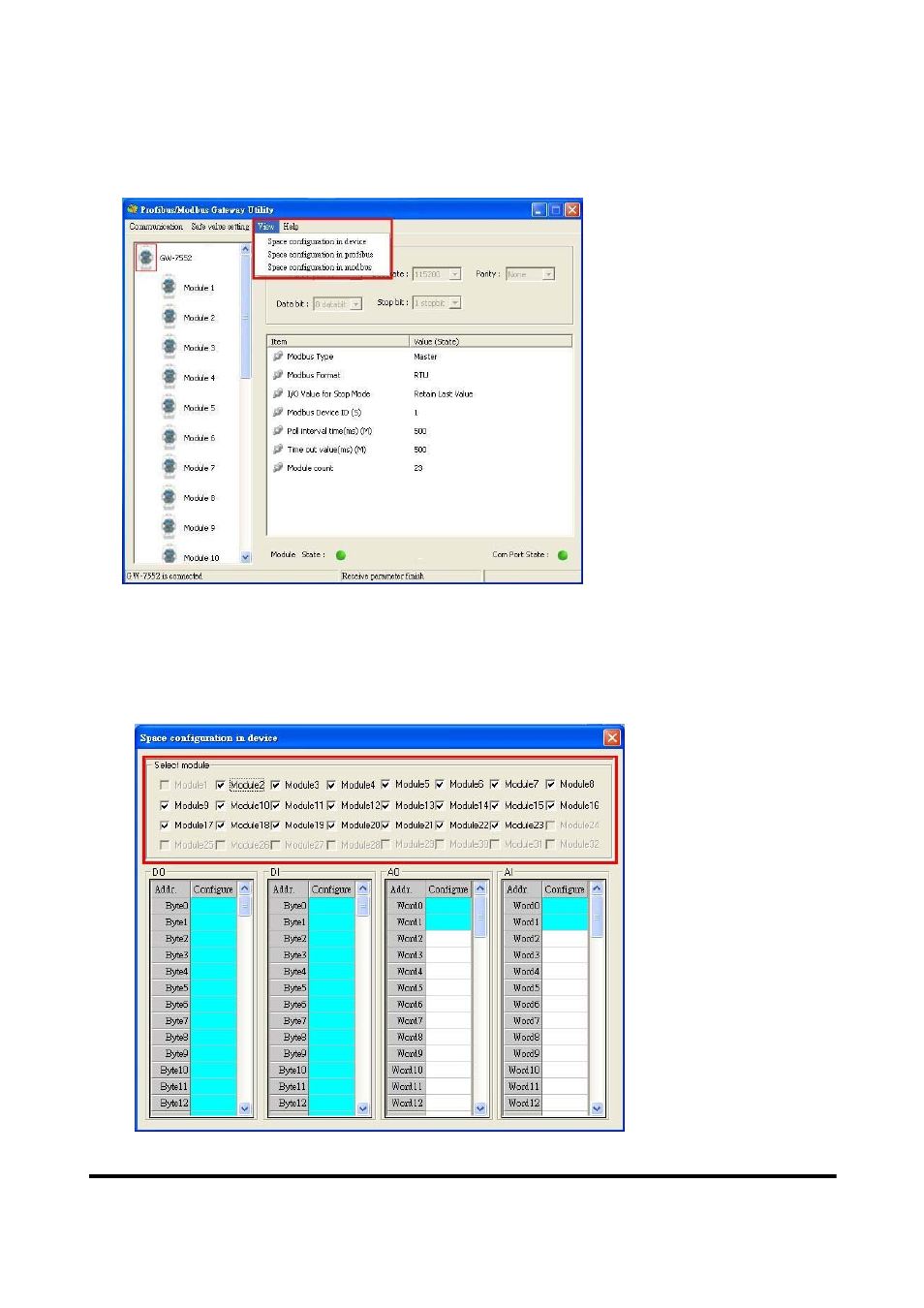

Figure 56 The menu of space configuration
5.3.1 Space configuration in device：
The user can select check box of the module to show memory address
configuration of DI/DO/AI/AO in the GW-7552, as shown in figure 57.
Figure 57 Space configuration in device
