GW-7552 PROFIBUS/MODBUS GATEWAY User Manual (Version 1.40, Apr/2012) PAGE: 46

4.8.1 Receiving data from a Modbus master device

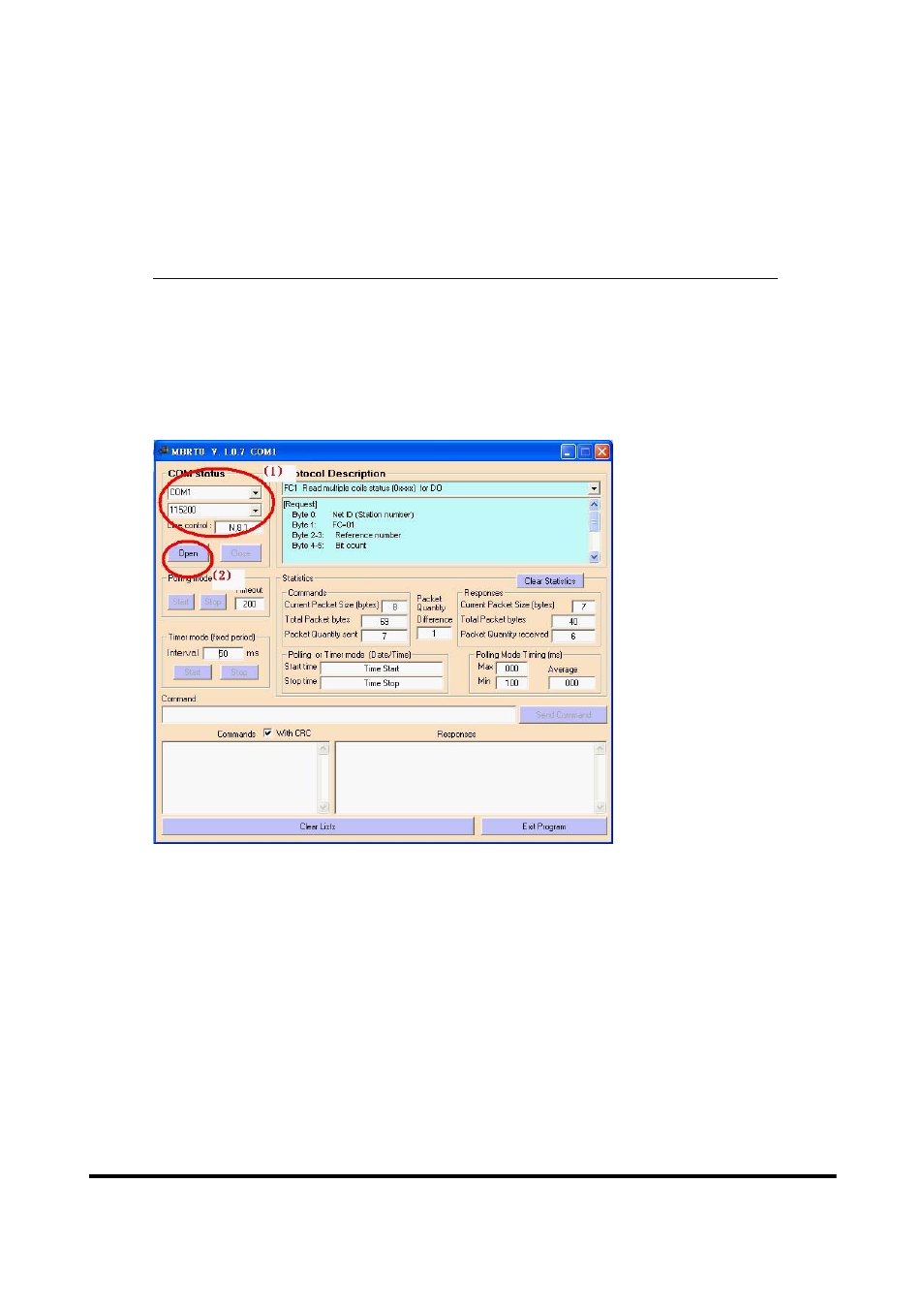

-- Start the test utility “MBRTU” (figure 44) on the PC.

This utility simulates a Modbus master device and is on the web site in the
following directory:

http://ftp.icpdas.com.tw/pub/cd/8000cd/napdos/modbus/modbus_utility/

(1) Set the COM port number of the PC
(2) Set the Baud rate to 115200
(3) Set the Line control to N,8,1
(4)Open the connection

Figure 44 MBRTU Utility

--Send Command to write DO of the GW-7552

The user needs to input command (” 01 0F 00 00 00 10 02 FF FF”) here and
click button to send Modbus command: “01 0F 00 00 00
10 02 FF FF E3 90” and then MBRTU can receive response message (” 01 0F
00 00 00 10 54 07”). The user can find byte 0, 1 of the input data area in the
configuration program “SyCon” have changed into “FF” at this time, as
shown in the below.
