GW-7552 PROFIBUS/MODBUS GATEWAY User Manual (Version 1.40, Apr/2012) PAGE: 30

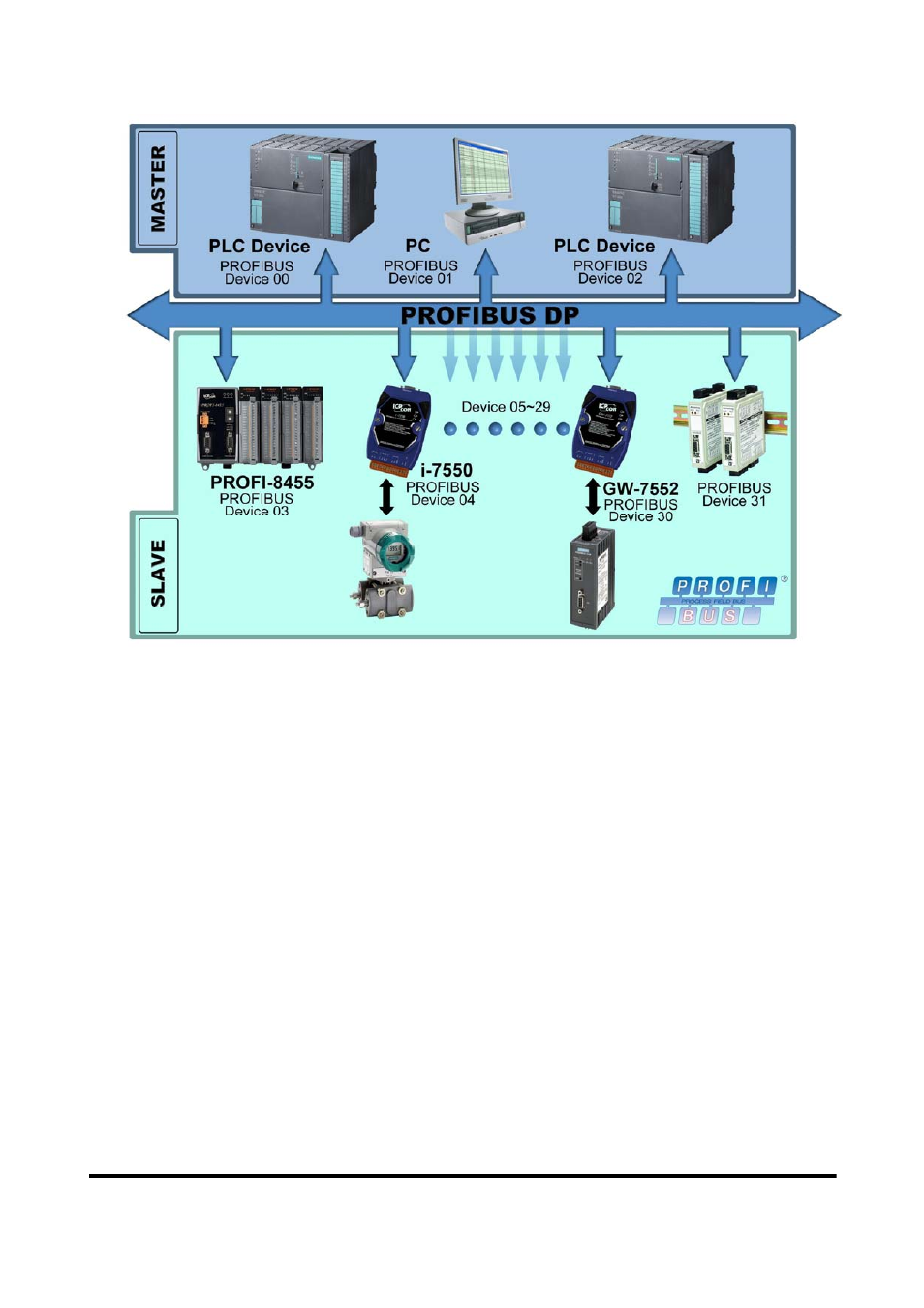

Figure 31 Multi-master system
4.2 GSD file
The characteristic (ex: baud rate, message length, number of input / output data.....)
of each PROFIBUS DP device is described in the GSD file. The GSD file of the
GW-7552 is in the ICP DAS companion CD-ROM (PATH--> CD:
\PROFIBUS\GATEWAY\GW-7552\GSD\). The user can copy GSD file
( IPDS0B87.gsd ) and the Bitmap file ( ICP_7552.bmp、i_7552.bmp ) to the
PROFIBUS configuration tool.
4.2.1 The example of how to load GSD file
In the following examples the CIF50-PB PROFIBUS master card from Hilscher
is used. The configuration and communication is done by the program “SyCon”
provided by Hilscher.
Step 1: Copy the GSD file (IPDS0B87.gsd) and the Bitmap file
(ICP_7552.bmp, i-7552.bmp) from CD of the GW-7552 module into
the Profibus configuration tool.
