Diagnostics
www.bb-elec.com
www.bb-europe.com
37
DIAGNOSTICS
Clicking the Diagnostics icon opens the
Diagnostics
dialog box and enables you to
check the operation of connected serial servers and VCOM ports on the local
computer.
The Computer Information box displays information about the type of network
connections, the IP addresses, Subnet Masks and Default Gateways in use.

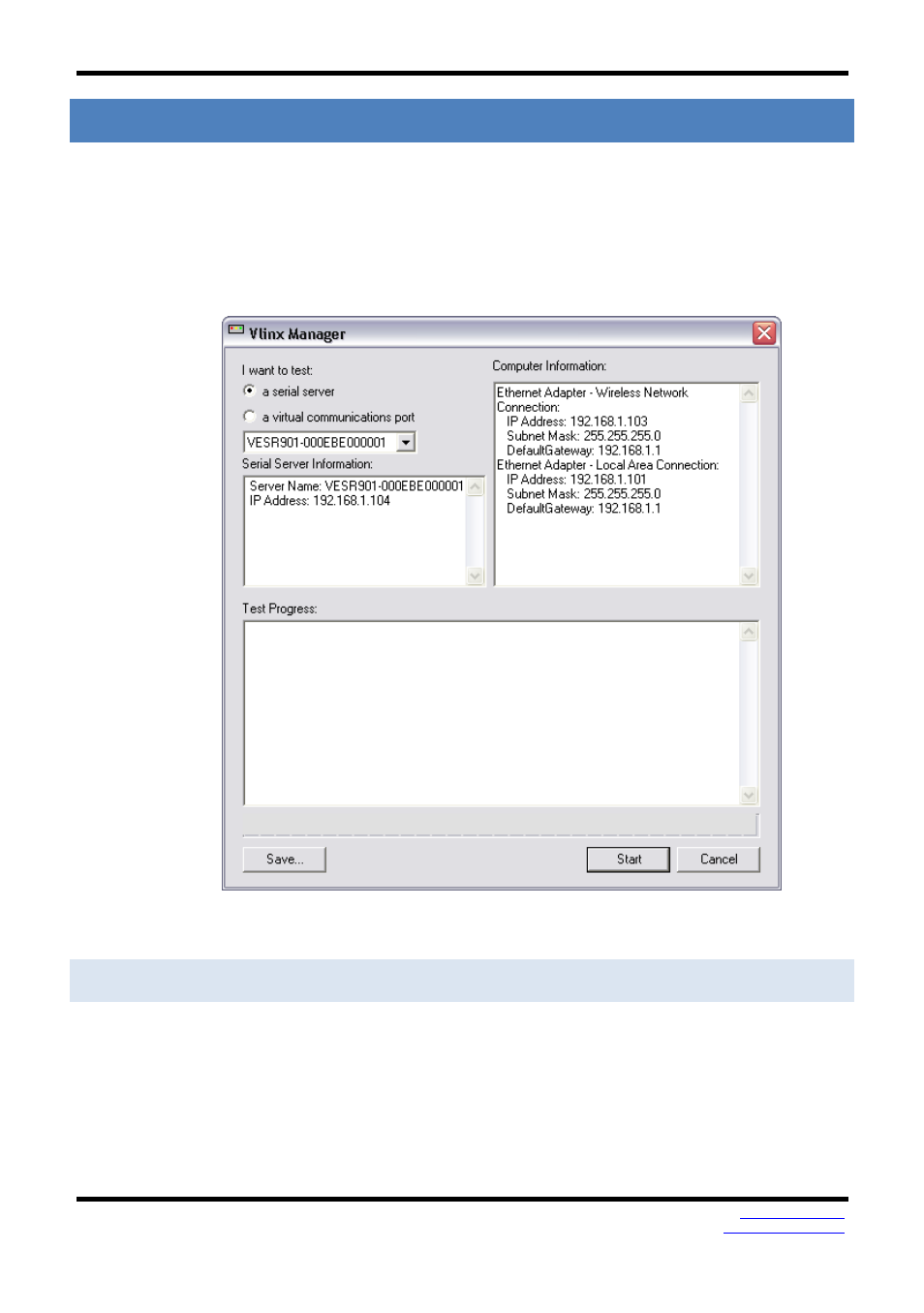

Figure 21. Diagnostics Dialog Box
TESTING A SERIAL SERVER CONNECTION
To run diagnostics on a serial server:
1. Click the Diagnostics icon.
The
Diagnostics
dialog box appears.
2. Select the option: a serial server
3. In the drop down box select the specific serial server you want to check.
