Hardware
www.bb-elec.com
www.bb-europe.com
11
VESRxx Serial Servers use three serial port connector configurations, depending on
the model:
VESR901-x serial servers feature one serial port and use a DB-9M connector for RS-
232 and a five-position removable terminal block for RS-422 and RS-485 connections.
VESR902D-x serial servers feature two serial ports, both using DB-9M connectors for
RS-232, RS-422 and RS-485 connections.
VESR902T-x serial servers feature two serial ports, both using five-position
removable terminal blocks for RS-232, RS-422 and RS-485 connections.

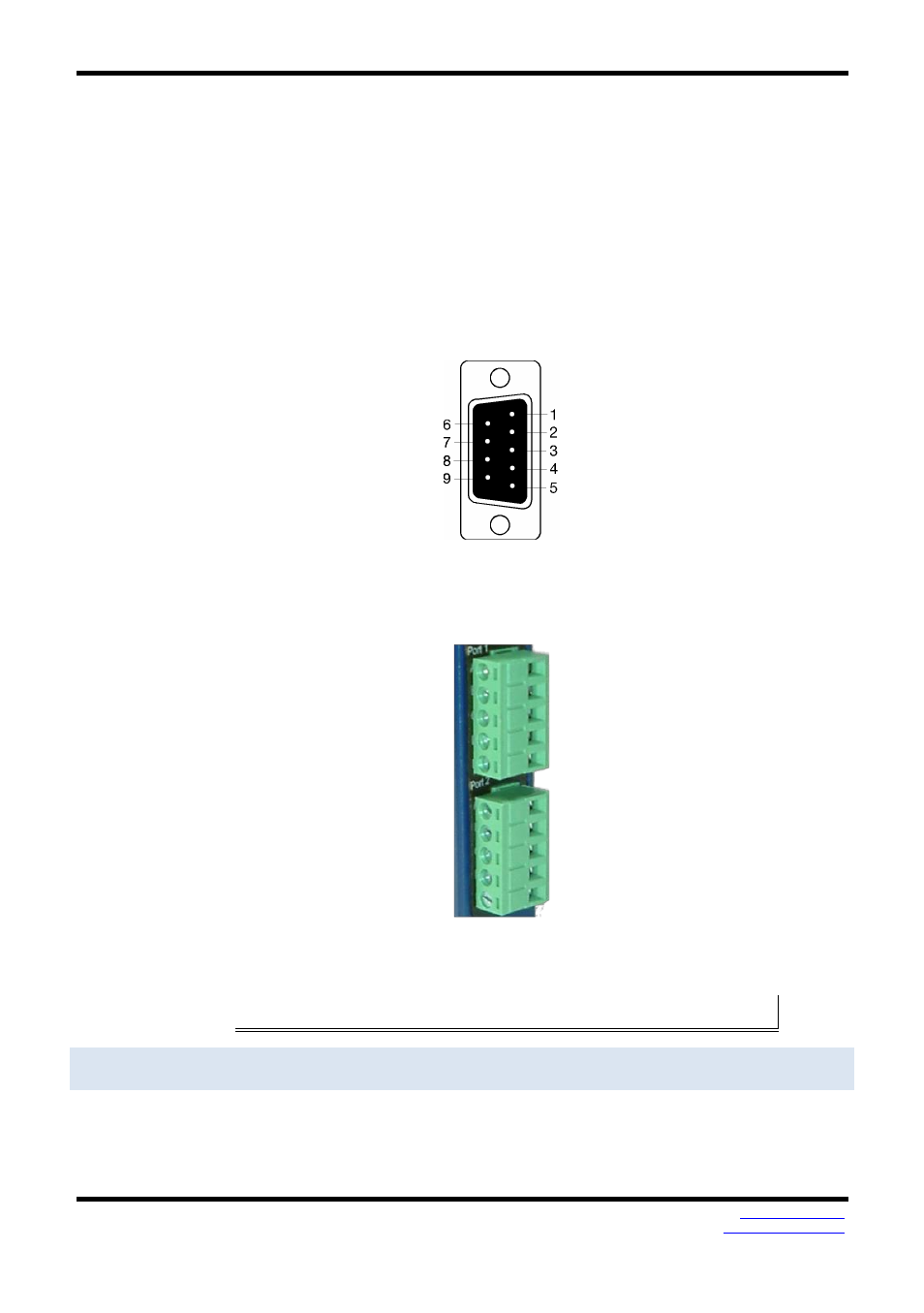

Figure 8. DB-9 Female Serial Port Connector with Pinout
Figure 9. Five-Position Pluggable Terminal Blocks
Note: Refer to Appendix D for connection pin-outs.
POWER CONNECTOR
The power connector is a 5.08 mm 2-position pluggable terminal block.
