Hardware
www.bb-elec.com
www.bb-europe.com
10
ETHERNET CONNECTOR
Serial server models using 10BaseT/100BaseTX network connections use an RJ45
receptacle. The serial server is connected to a standard Ethernet network drop using
a straight-through RJ45 (male) Ethernet cable. VESR92x models feature a second
RJ45 receptacle which acts an Ethernet pass-through connection. This connection
functions similar to an Ethernet switch and allows the connection of other devices to
the network.

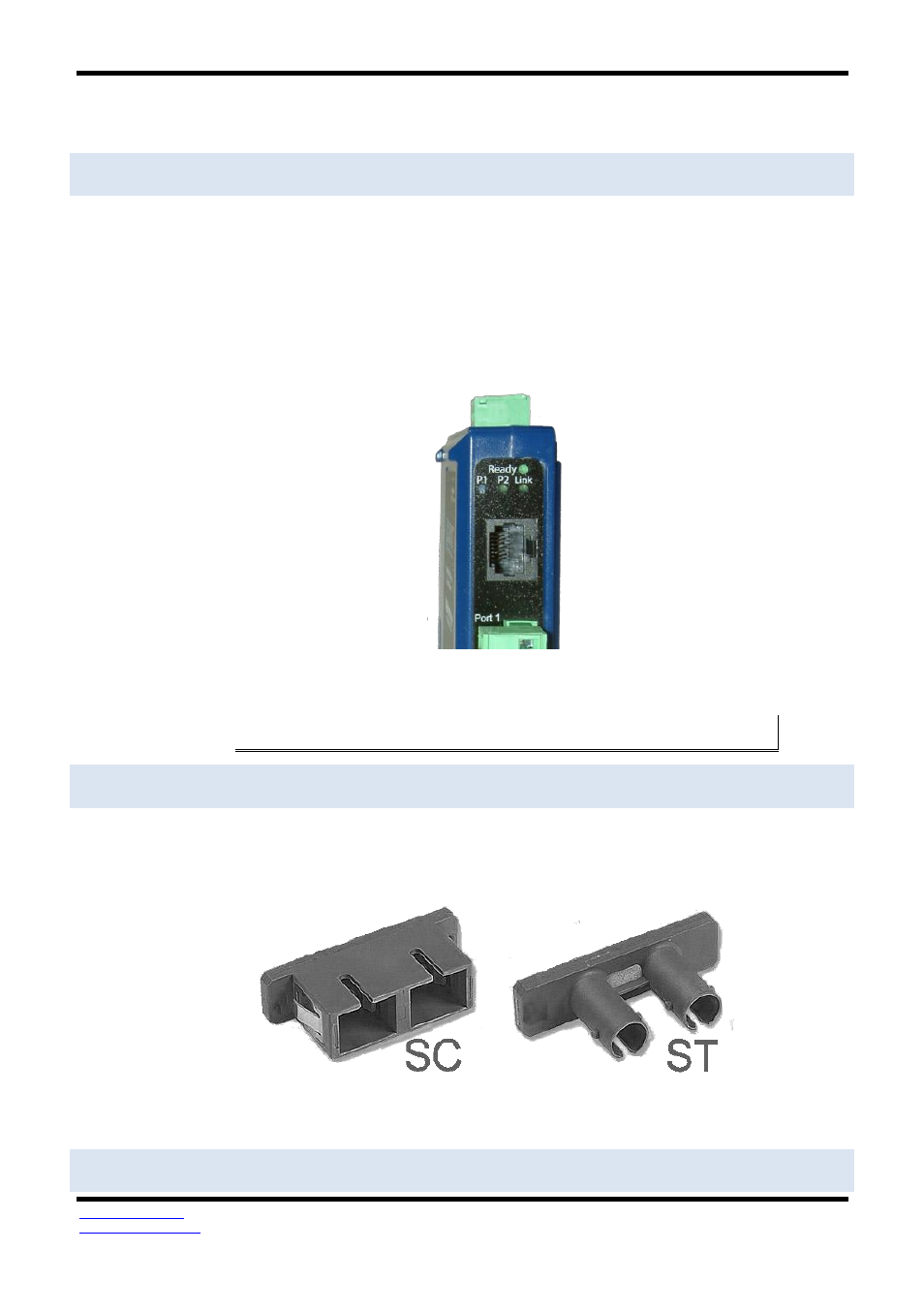

Figure 6. Ethernet Connector
Note: Refer to Appendix D for connection pin-outs.
FIBER OPTIC CONNECTORS
Serial server models using fiber Optic network connections use either SC or ST
connectors, depending on the specific model.
Figure 7. SC and ST Fiber Optic Cable Connectors
SERIAL PORT CONNECTORS
