Setup and Connections
www.bb-elec.com
www.bb-europe.com
22

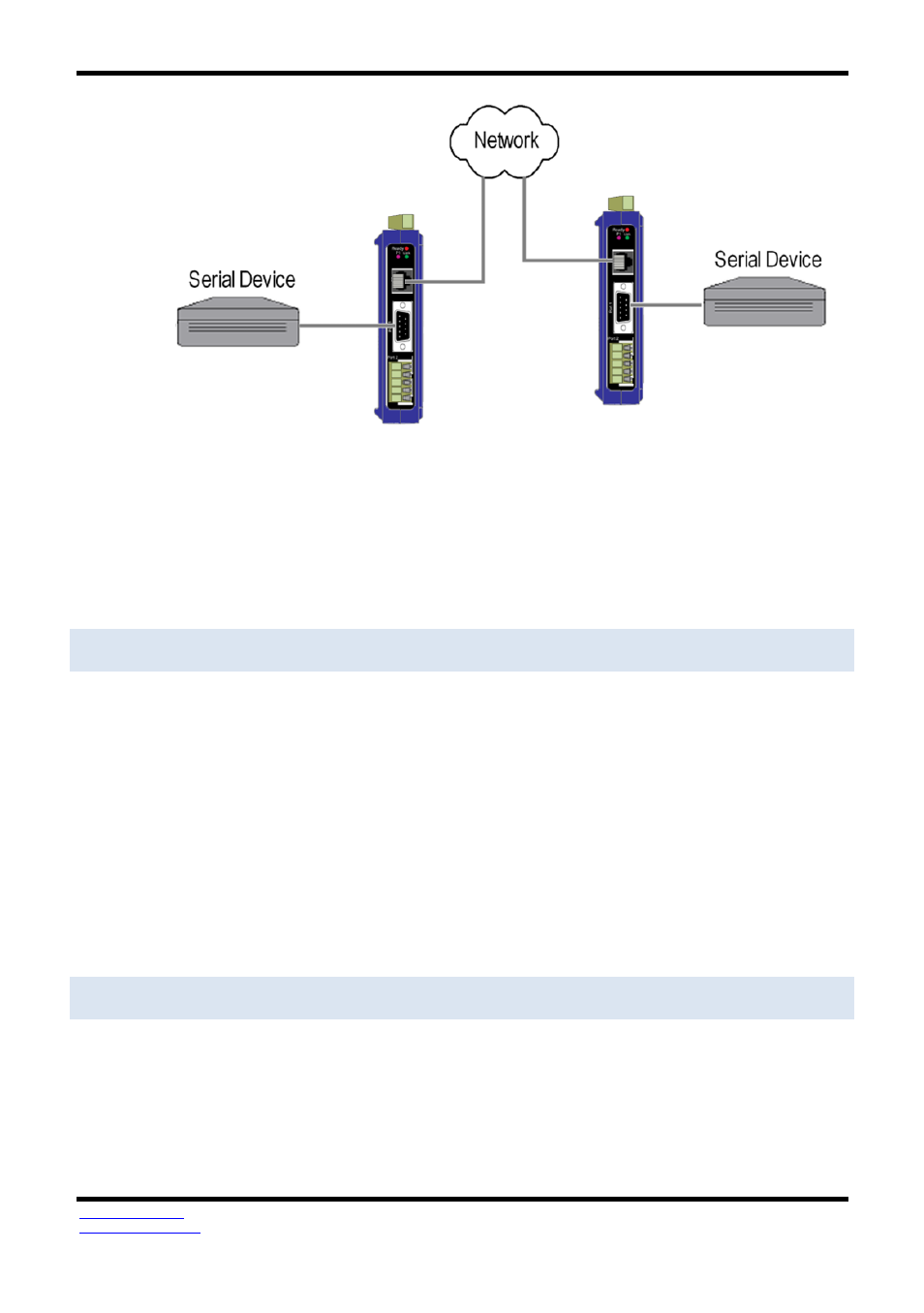

Figure 19. Paired Mode Setup
To set up a Paired Mode connection:
1. Connect two serial servers to serial devices and to the network.
2. Configure the serial server for Paired Mode operation (using Vlinx
Manager or the web interface).
INITIATING A HARDWARE RESET ON THE SERIAL SERVER
To initiate a Hardware Reset on the serial server, press and hold the Mode switch
for 0 to 2 seconds, and then release it. The LED indicators respond as follows:
1. The Ready LED blinks three times per second while the button is being
pressed.
2. The serial server is in Reset Mode when:
On the VESR901: Port 1 LED is On and the Ready LED is Off.
On VESR902x models: Port 1 LED is On and the Port 2 LED is Off.
3. The LEDs go back to their normal states when the device resumes
normal operation.
RELOADING FACTORY DEFAULTS
To reload Factory Defaults, press and hold the Mode switch for more than 10
seconds. The LED indicators respond as follows:
1. The Ready LED blinks three times per second while the button is being
pressed.
2. The serial server is in Factory Default Mode when:
