Page 64

Using Console Mode

Chapter 9

Manual Documentation Number: ESP901-902_5012m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com

B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Navigating the Configuration Menus

There are six

Console Mode

screens:

Server

Network

Serial Mode

Operation

Monitor

and

Configuration

Tab

Back Space

and

arrow

keys can be used to highlight the desired function on the screen list.
Pressing

Enter

moves the cursor to the first field with the current

screen. The configuration fields can be changed by pressing

Enter

and

selecting from the list that appears. The

Escape

key moves the cursor

back to the screen list. Pressing the

Space Bar

refreshes the page.

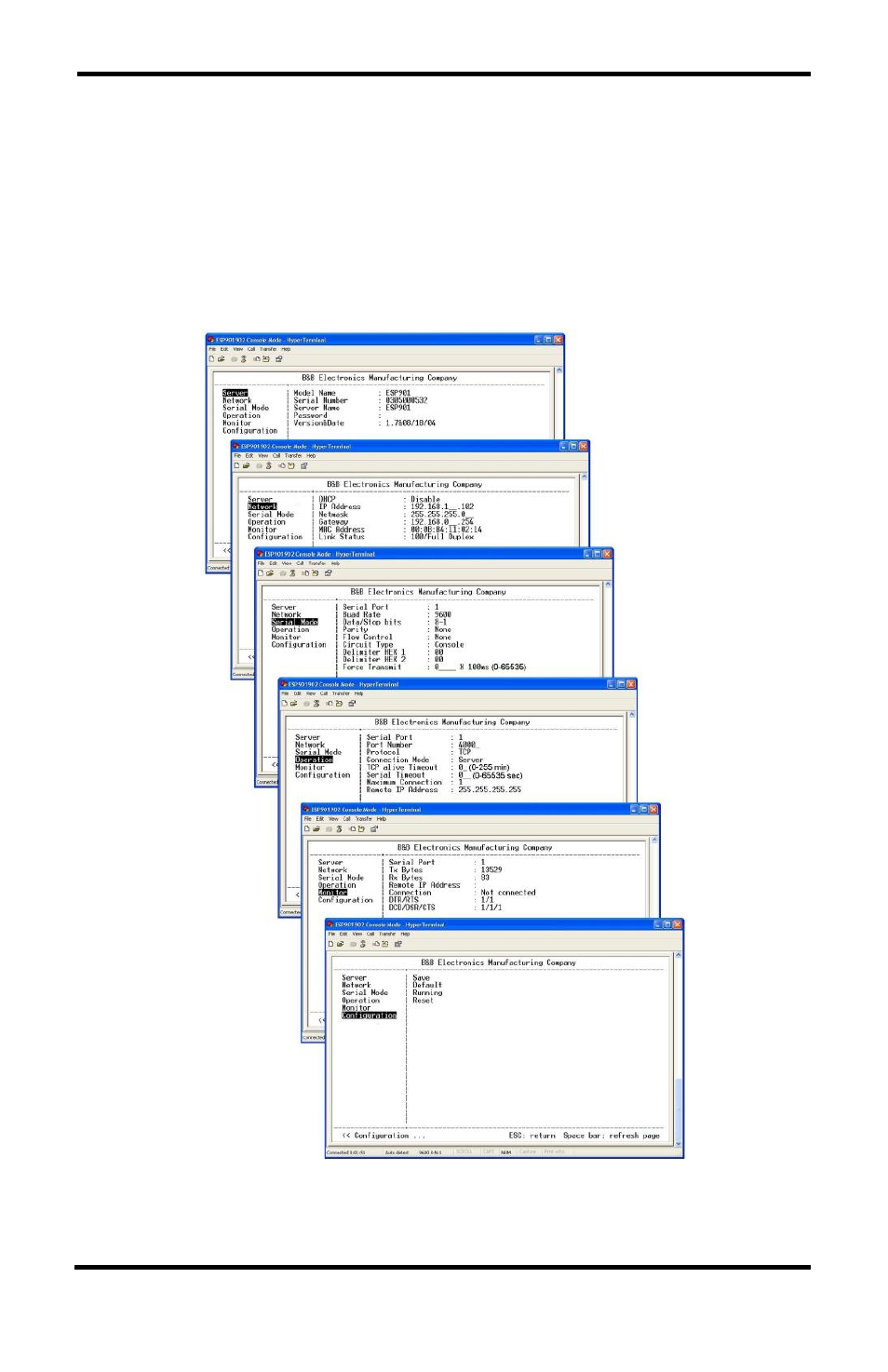

Figure 50.

Console Mode Configuration Screens
