Making Hardware Connections
Manual Documentation Number: ESP901-902_5012m
Chapter 2
11
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
DIP Switches
A triple DIP (dual inline package) switch allows the
Serial Server
to
be placed into
Console Mode
. When all three switches are moved into
the ON position the
Serial Server
enters
Console Mode,
allowing
configuration of the
Serial Server
(using an RS-232 connection
through the serial port on the ESP901 or Serial Port 1 on the ESP902)
from a PC running a terminal program such as
HyperTerminal
. When
the
Serial Server
enters
Console Mode
the
Console Mode
screen will
appear in the HyperTerminal program window. The serial port settings
must be 8-N-1 at 9600 baud.

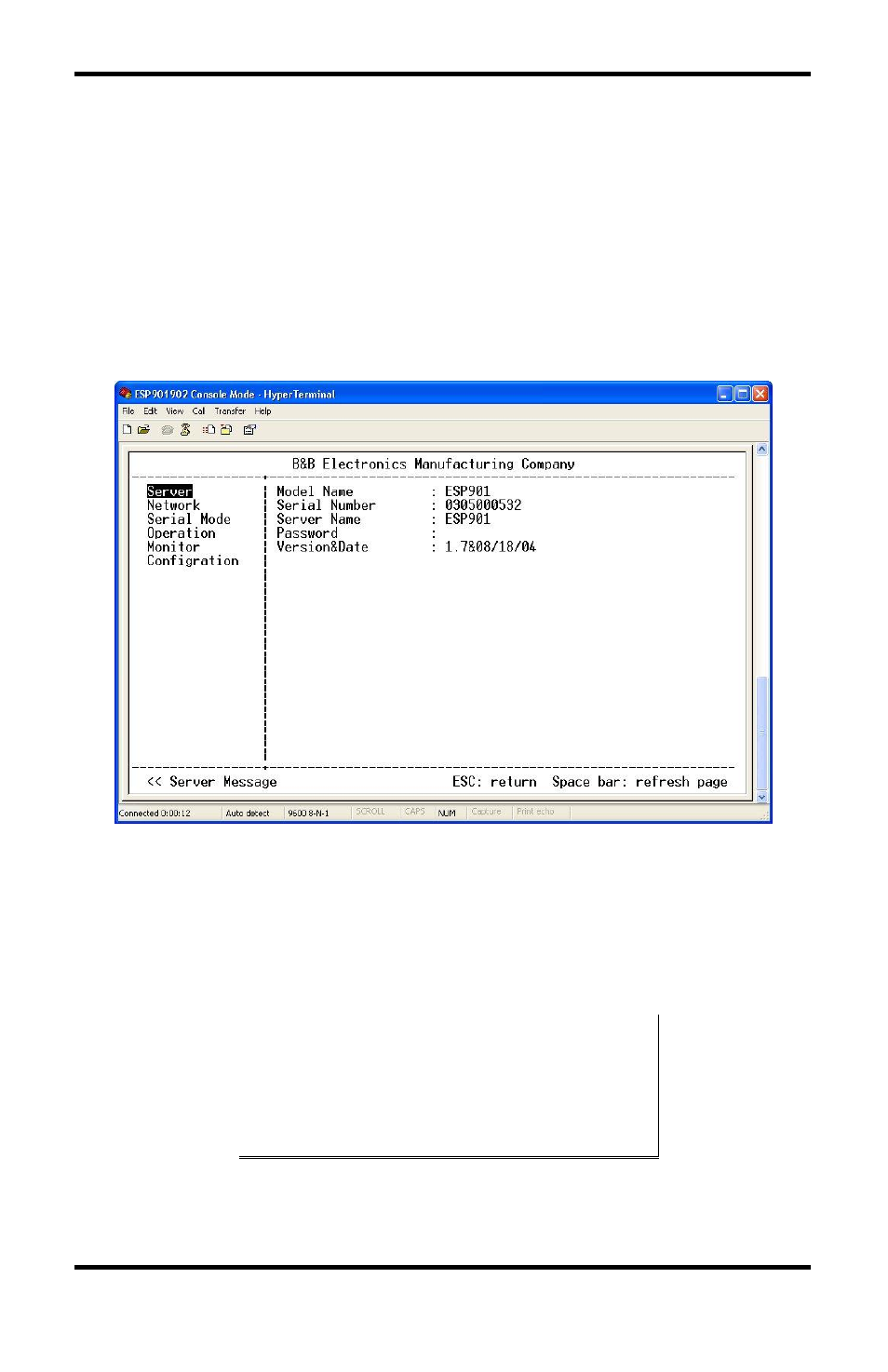

Figure 7.
The Console Mode (Server) Screen in the
HyperTerminal Window
When any of the DIP switches are switched back to the OFF position,
the
Serial Server
will revert to the mode it was in before
Console
Mode
.
N
N
o
o
t
t
e
e
:
:
The Serial Server can be put into Console mode using either of two
methods:
1.
Switching all the DIP switches to the ON position
2.
With any DIP switch in the OFF position set the Server
Properties Console Mode field to Console and Update/Save the
configuration
