Using ESP Manager
26 Chapter 4 Manual Documentation Number: ESP901-902_5012m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com

Port - Displays the port number for each Serial Server port.

Flow Control - Indicates what type of flow control is configured
for each port.

Status - Indicates whether each port is currently In Use or Not
Used.
Status Bar
Displays the current status of the software in the bottom, left corner of the
screen

Ready

Updating
 Searching reachable servers…
Search for Servers
Upon opening the ESP Manager software it will automatically
execute Searching Server and search for all reachable ESP90x
serial servers.
Step 4: To manually initiate a search for servers, click Searching
Servers (under the Servers menu or the icon on the left side
of the screen). The Search Setup box will appear.
It provides two options for searching for servers on the
network:
 Specify the IP Address of the Serial Server
 Search all reachable servers

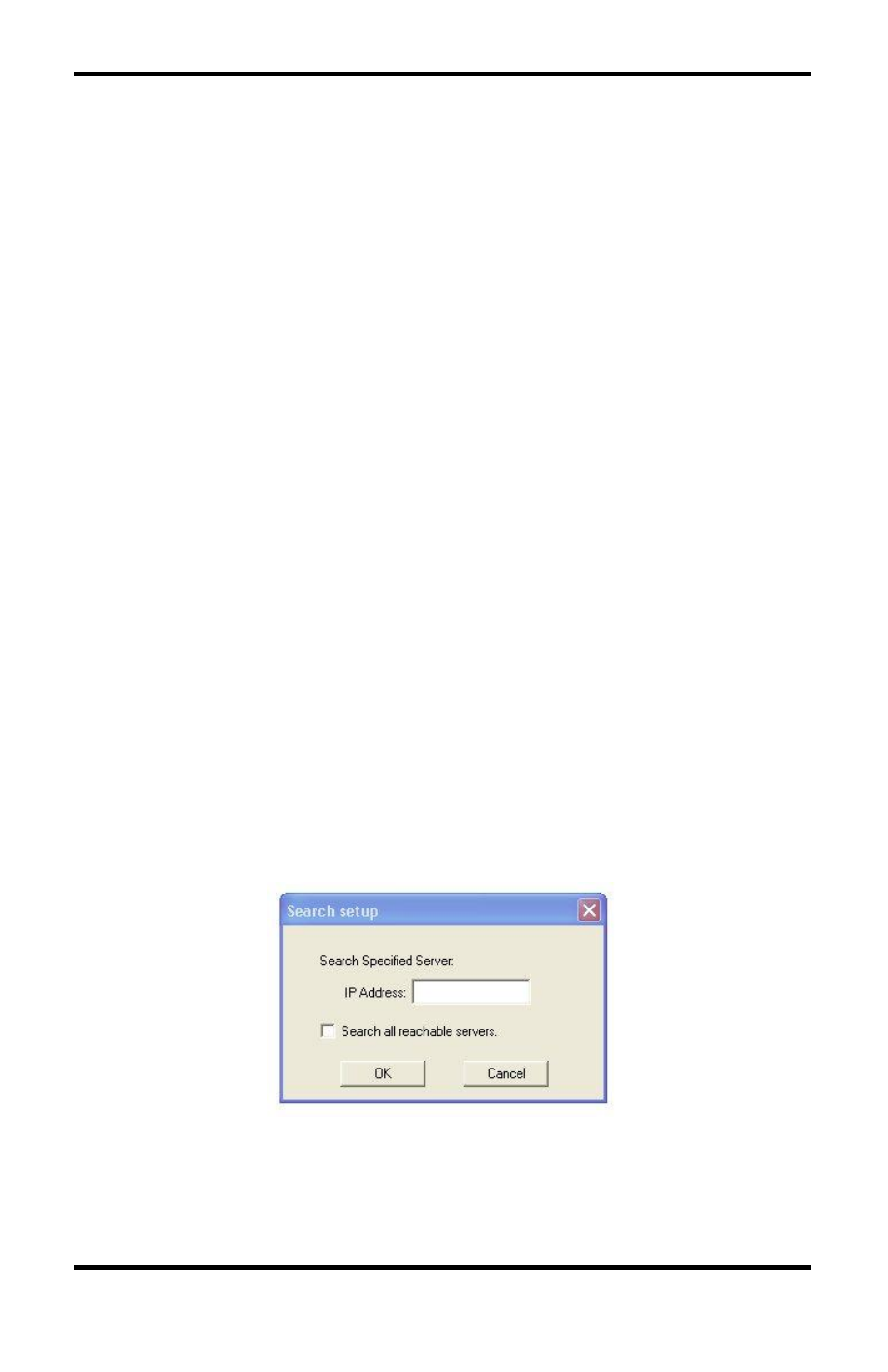

Figure 22. The Search Setup Window
