Introduction
Manual Documentation Number: ESP901-902_5012m
Chapter 1
5
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics Ltd – Westlink Commercial Pk – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Serial Server Quick Start Guide
For descriptive purposes this Quick Start Guide considers a typical
configuration consisting of a
PC
connected via an Ethernet LAN to an
ESP901
or
ESP902 Serial Server
connected to the RS-232 port of a
serial device
.
Hardware Setup

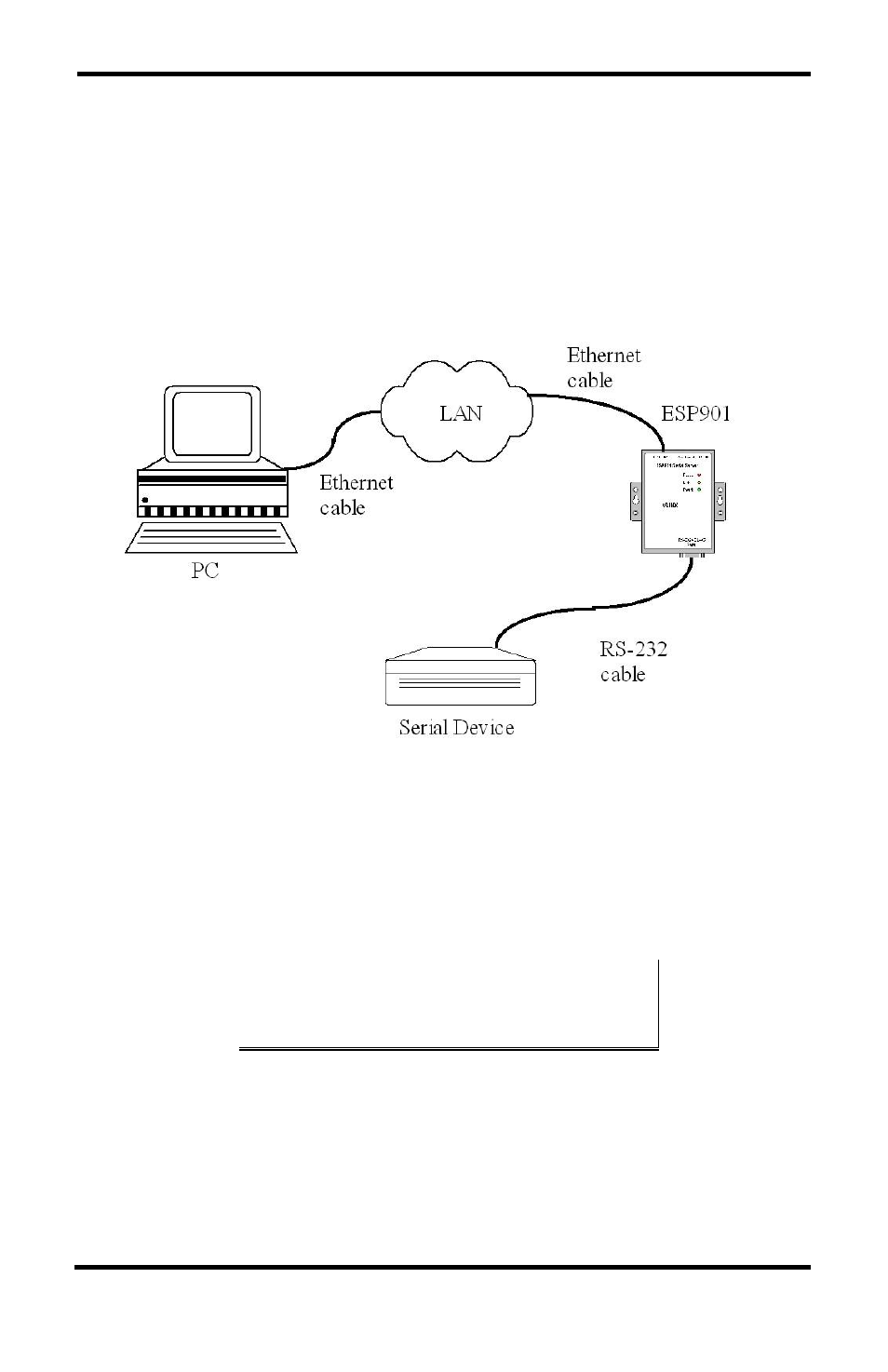

Figure 2.
Typical Hardware Setup
Step 1: Connect the
Serial Server
to the network using a standard
network cable.
Step 2: Connect the
Serial Server
to the RS-232 port on the
serial
device
.
N
N
o
o
t
t
e
e
:
:
If the serial device is configured as a DCE use a straight-through serial
cable. If the serial device is configured as a DTE use a crossover (null
modem) cable.
Step 3: Set all the DIP switches to the
OFF
position.
Step 4: Apply power to the
Serial Server
.
