Printer Tour
Phaser™ 3450 Laser Printer
3

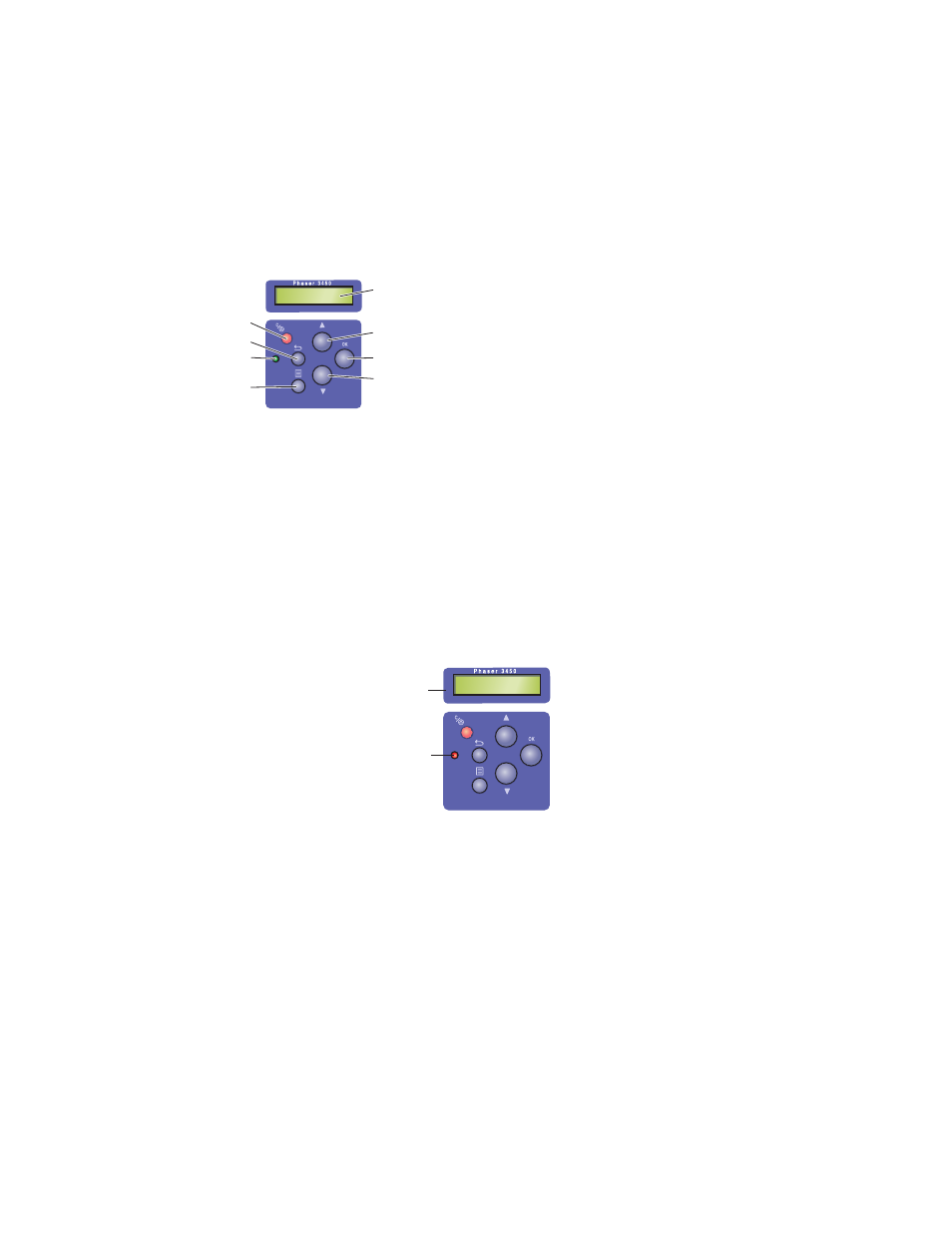

Front Panel Layout
The front panel on your printer has three components:
■ Multi-colored Light Emitting Diode (LED) light
■ Alphanumeric display
■ Six button cluster.
The Alphanumeric Display displays status messages and front panel menus.
Error and Warning Messages
When there is a problem with the printer, the front panel LED (2) blinks red for an error and
yellow for a warning. An error or warning message is displayed in the Alphanumeric
Display (1).
Menu Map
The “Menu Map” is a visual representation of the front panel settings and information pages.
To print the “Menu Map”:
1. At the printer’s front panel, press the Menu button, then press the OK button.
2. Press the OK button to print the Menu Map .
1. Cancel button
2. Return button
3. On-line/Data/Error LED
4. Menu button
5. Status/Error Messages and Menus
6. Up Arrow button
7. OK button
8. Down Arrow button
Ready
3450-038
5
7
8
1
2
3
6
4
Ready
3450-045
1
2
