20

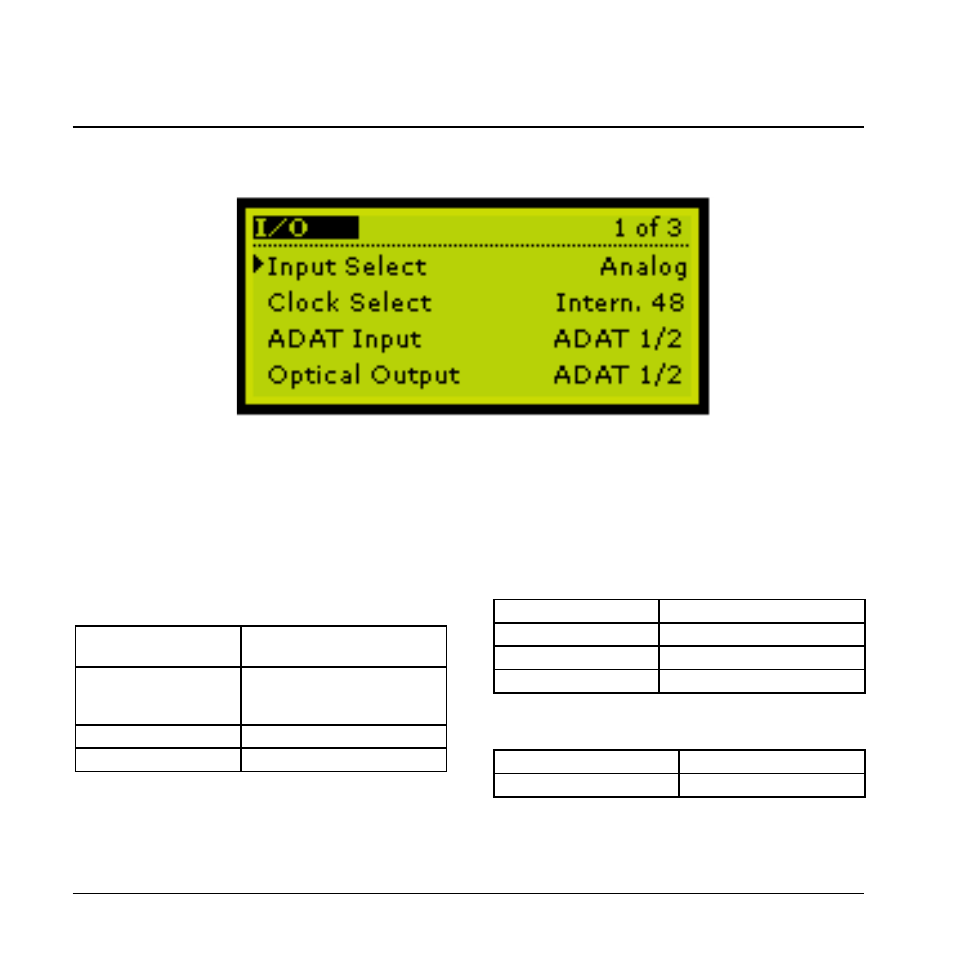

I/O PAgE
Navigating the I/O page
- press the I/O key to enter the page
- press CURSOR UP/DOWN keys to move cursor and use the ADJUST wheel to change parameter values
- to access I/O page 2, place cursor at the parameter in the bottom of the display and press the CURSOR DOWN key
- to exit the EDIT pages, press EDIT - or press UTILITY or EDIT keys to navigate directly to those menus.
LM2 automatically returns to the Main page after 30 sec if no key has been touched.
The I/O page is used for selecting I/O formats, clock conditions, scaling of AD and DA converts, disabling of the Set Gain
function etc. Note: I/O page parameters are stored and recalled with presets.
Parameters and settings
Input Select AES, SPDIF, TOS, ADAT
Analog
Clock Select Intern. 44.1/48 kHz
Digital In, Word Clock,
ADAT Input ADAT 1/2, 3/4, 5/6, 7/8
Optical Output TOS, ADAT 1/2, 3/4, 5/6, 7/8 Set Gain Disabled/Enabled
TP Meter Pre Lim/Post Lim
Ana In, FS@ +6 to +21 dBu
Ana Out, FS@ +6 to +21 dBu
Ana Fader Off, -119 dB to +12 dB
Dither Off, 24, 20,16 bit
Page 1
Page 2
Page 3
