OvERvIEw REAR PANEL
12
11 - EDIT key
Press to enter preset Edit mode. Use the CURSOR UP/
DOWN keys to navigate and the ENCODER to change
values.
12 - ENTER key
ENTER is used for confirmation of various operations.
13/14 - CURSOR UP/DOWN
These keys are used for navigating in menus.
15 - ENCODER
The encoder is used to change values.
16 - I/O key
Press to enter the I/O menu providing access to
parameters such as In/Out selection, level, clock, dither
etc. I/O parameters are stored and recalled with presets.
Balanced
Analog
Inputs
XLR
AES/EBU
Input/
Output
Balanced
Analog
Outputs
XLR
Coax
SPDIF
Input/
Output &
AES3id
Power Input
100 - 240V
Power Switch
USB COM IN/OUT
Through
Optical
SPDIF
& ADAT
Note: The USB connection may be used for parameter control and radar display via the
Icon application. This is also the interface used to dump logging data from the LM2 unit to a
Mac or PC.
Sync In
BNC

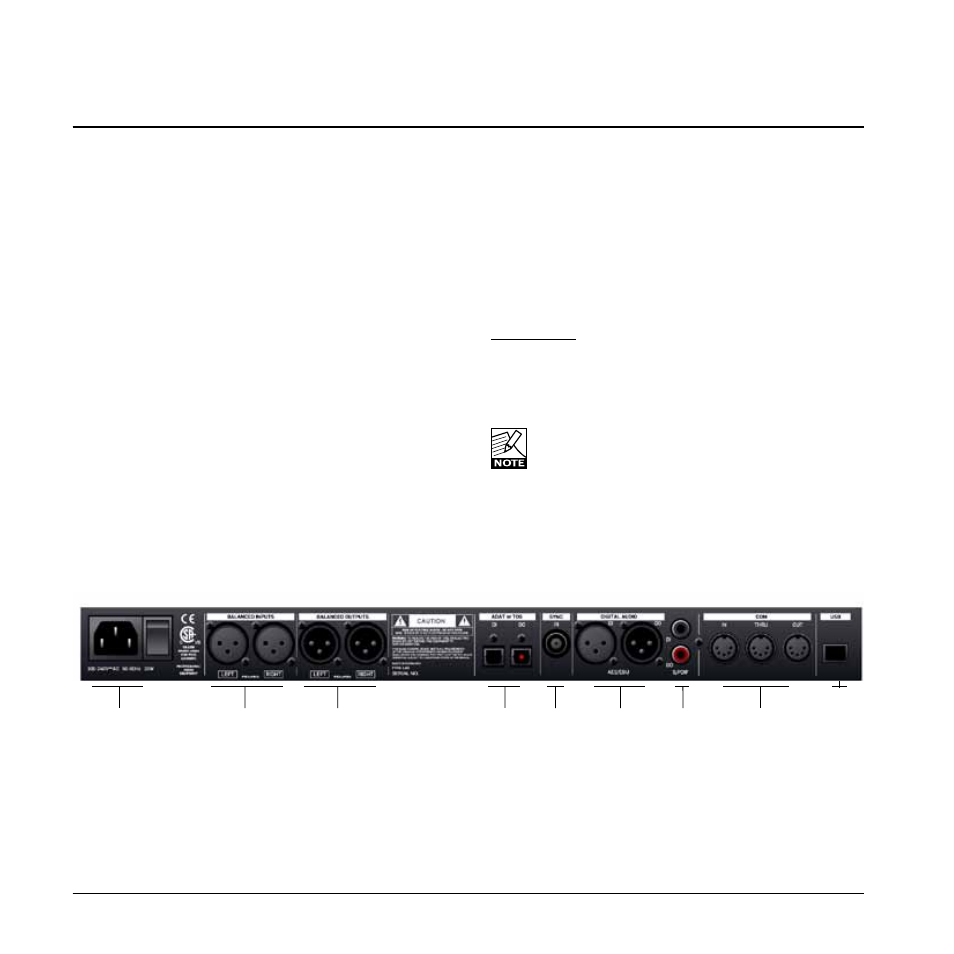

Rear Panel
...continued 17 - UTILITY
Press UTILITY to access the Utility page. The Utility page
holds the following parameters:
- Display viewing angle
- Analog trim.
- Auto Info on/off
Utility parameters are global and unit specific. These
parameters do not change with a preset recall.
Lock function
Hold the UTILITY key for three seconds to lock or unlock
the LM2 frontpanel. In Lock mode it is only possible to
switch between the Home and Stats pages.
Use the lock mode to prevent unintended operation.
18 - BYPASS key
Press to bypass gain normalization and true-peak
limiting.
