9400S-OM (V1.1) 9400-SERIES PRODUCT MANUAL 3-7
Operating Instructions
9400-Series Function Submenu List and Descriptions
Fiber Optic Modules Info/Status Tab (9401-9404 Tx)
Provides operating status and info display selectable for
each of the card’s up to four Tx card Fiber Optic Module
drivers.
Table 3-1 9401-9404 (Tx) Card Function Submenu List — continued
Selects the Fiber Optic Module to be displayed in this pane (FOM1 thru FOM4 correlate to
output channels 1 thru 4).
Note: Output 1 thru Output 4 drop-down lists only on 9404 (4x4 Tx) card. 9403 thru 9401
cards have correspondingly fewer drop-down selection lists.

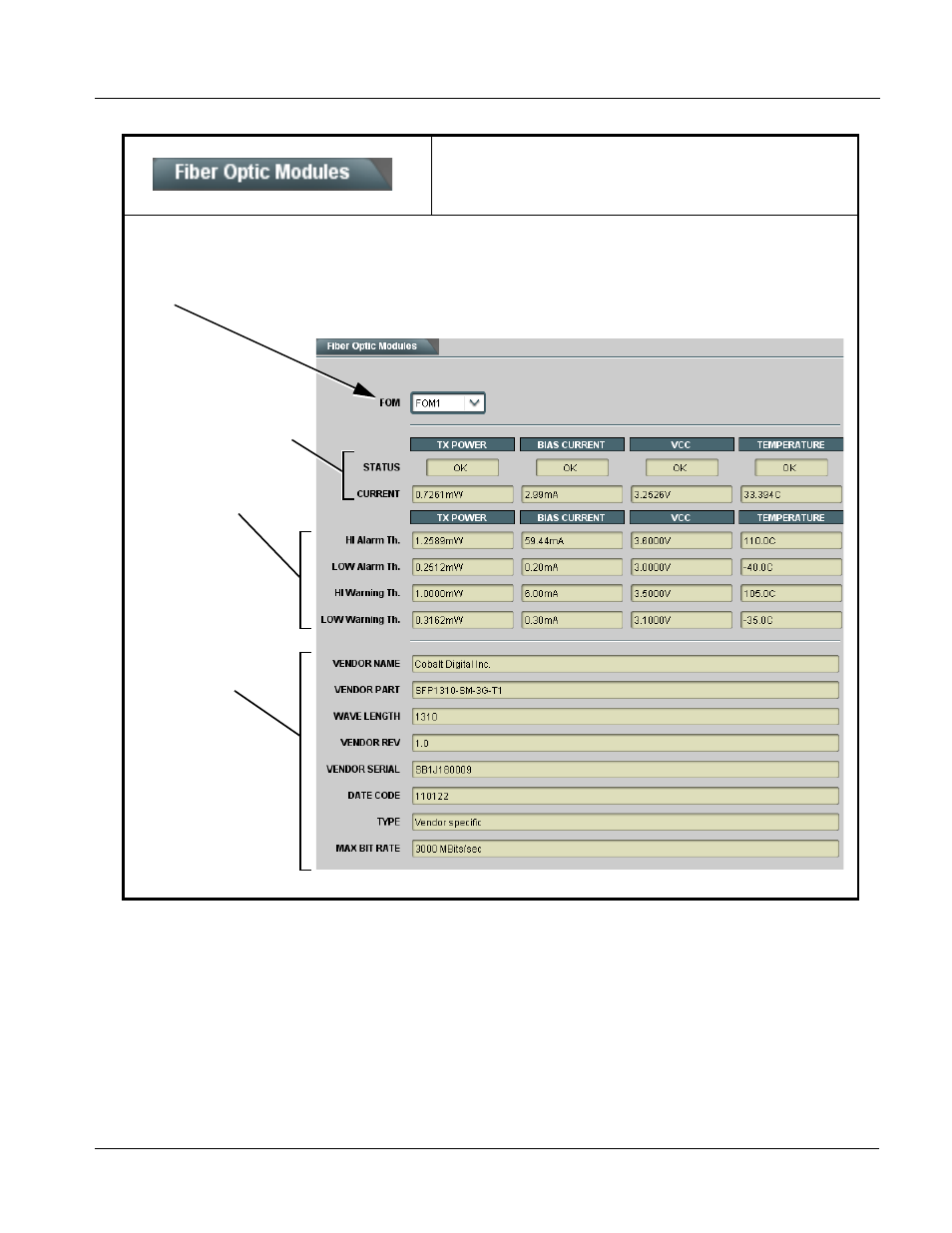

Provides general operating
parametric status for the
selected Fiber Output Module
Provides detailed
alarm parametric
thresholds for the
selected Fiber Output
Module. (These values
may vary depending
on vendor-specific
module fitted for the
output channel.)
Provides general
information and
specifications for the
selected Fiber Output
Module. (This
information may vary
depending on
vendor-specific
module fitted for the
output channel.)
