9400S-OM (V1.1) 9400-SERIES PRODUCT MANUAL 3-1
Chapter 3
Chapter 3
Operating Instructions
Overview
This chapter contains the following information:
• Accessing the 9400-Series Card Using DashBoard™ Remote
Control (p. 3-1)
• 9400-Series Function Submenu List and Descriptions (p. 3-4)
• Card-Edge Control (p. 3-10)
• Troubleshooting (p. 3-11)
Accessing the 9400-Series Card Using DashBoard™ Remote
Control
1. On the computer connected to the frame LAN, open DashBoard™.

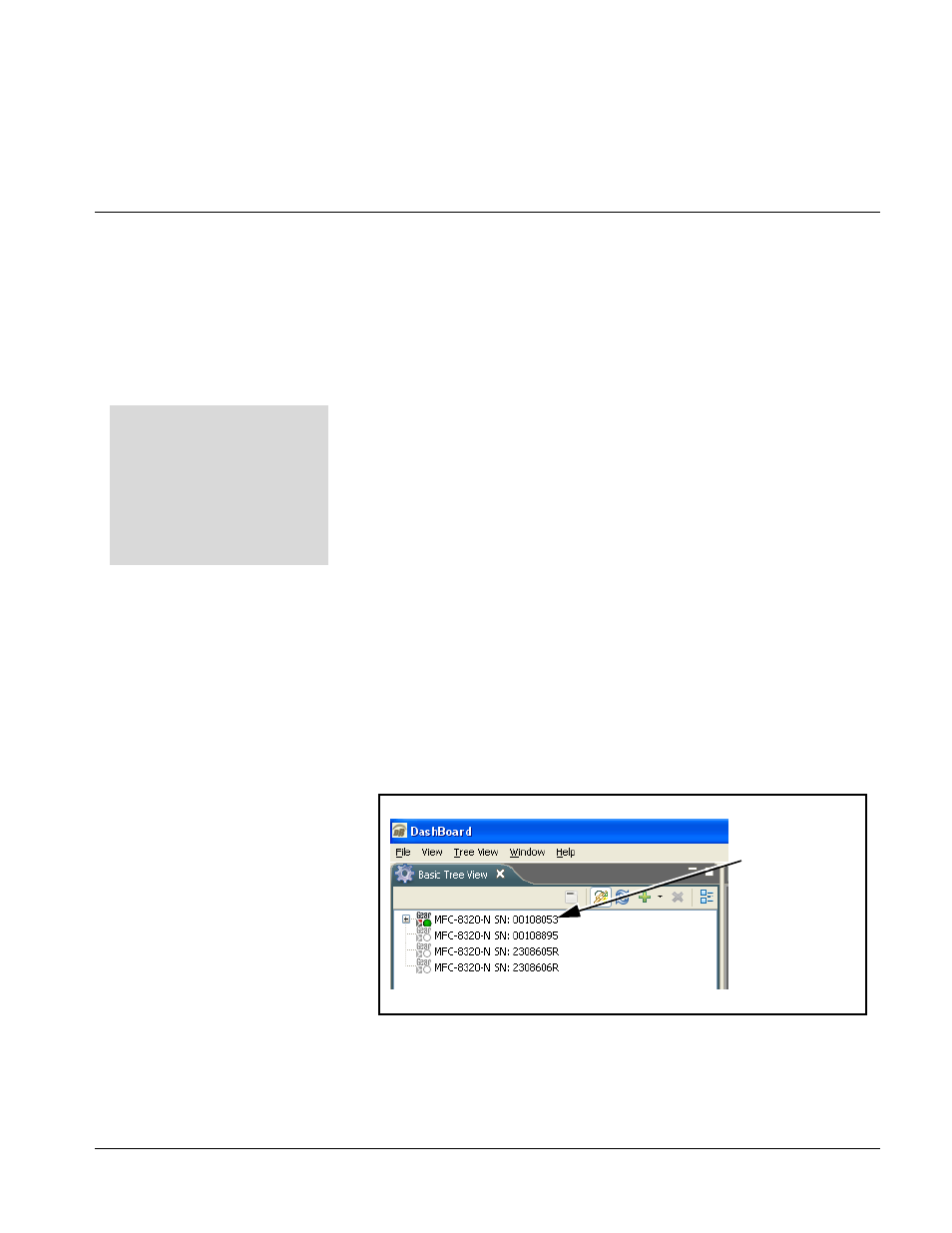

2. As shown below, in the left side Basic View Tree locate the Network
Controller Card associated with the frame containing the 9400-series card
to be accessed (in this example, “MFC-8320-N SN: 00108053”).
If you are already familiar
with using DashBoard or a
Cobalt Remote Control
Panel to control Cobalt
cards, please skip to
9400-Series Function
Submenu List and
Descriptions (p. 3-4).
