Checking Card Status
3-2 9400-SERIES PRODUCT MANUAL 9400S-OM (V1.1)

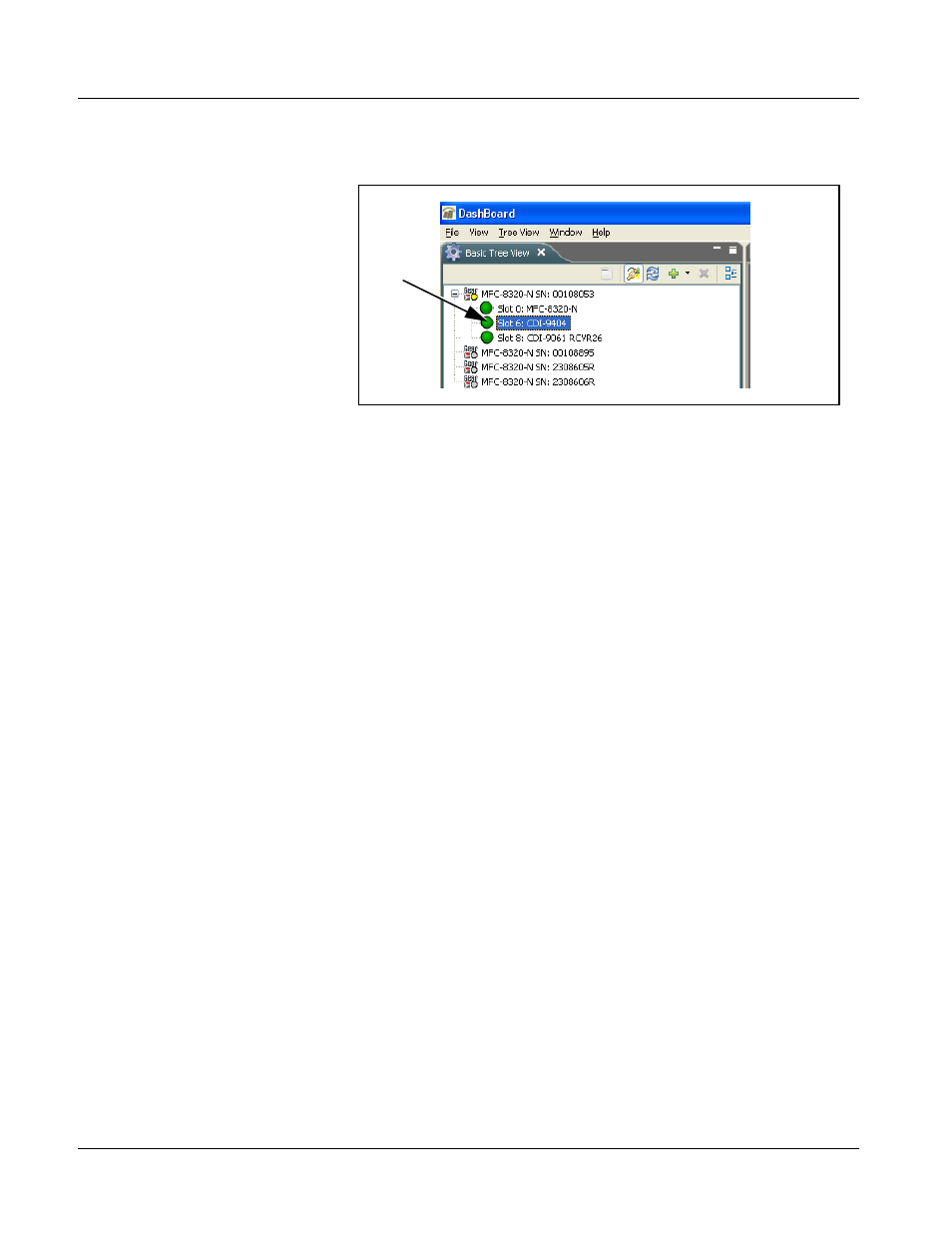

3. As shown below, expand the tree to access the cards within the frame.
Click on the card to be accessed (in this example,
“Slot 6: CDI-9404”).
.
When the card is accessed in DashBoard™ its function submenu screen
showing tabs for each function is displayed.
Checking Card Status
The operating status and software version the 9400-series card can be
checked using DashBoard™. Figure 3-1 shows and describes checking
overall status using the card information screen on DashBoard™ and the card
edge control user interface.
Note: Proper operating status in DashBoard™ is denoted by green icons for the sta-
tus indicators shown in Figure 3-1. Yellow or red icons respectively indicate
an alert or failure condition. Refer to Troubleshooting (p. 3-11) for corrective
action.
Note: Figure 3-1 shows 9404 Tx and 9414 Rx card typical card edge display. Other
card models with less fiber channels may not be populated in the CHN 2 thru
CHN 4 positions shown.
