Setting Card Switches
2-2 9400-SERIES PRODUCT MANUAL 9400S-OM (V1.1)
Figure 2-1 shows and describes the 9400-series card-edge controls that allow
card-edge control of Reclocker and Auto Mute enable/disable.

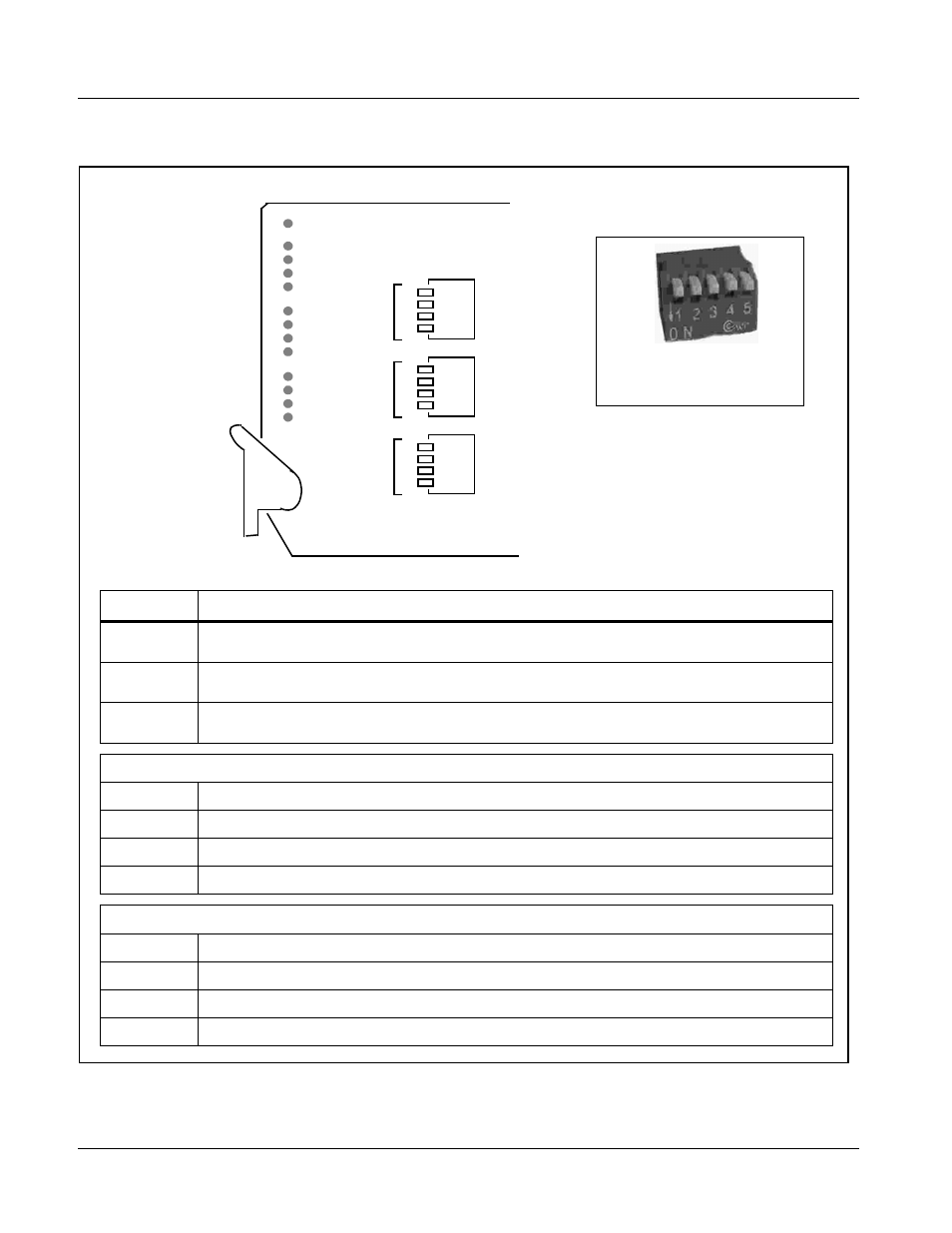

Figure 2-1 9400-Series Card Edge Controls
Switch Setting
SW1-1 On = Automute control via card-edge switch SW2 (DashBoard™ Automute control locked out)
Off = Automute control via DashBoard (card-edge Automute control locked out)
SW1-2 On = Reclocker control via card-edge switch SW3 (DashBoard™ Reclocker control locked out)
Off = Reclocker control via DashBoard (card-edge Reclocker control locked out)
SW1-3
SW1-4
Not used
Note: Switch SW2 functional only if switch SW1-1 set to On (card-edge Automute control)
SW2-1 On = Automute Channel 1 disabled Off = Automute Channel 1 enabled
SW2-2 On = Automute Channel 2 disabled Off = Automute Channel 2 enabled
SW2-3 On = Automute Channel 3 disabled Off = Automute Channel 3 enabled
SW2-4 On = Automute Channel 4 disabled Off = Automute Channel 4 enabled
Note: Switch SW3 functional only if switch SW1-2 set to On (card-edge Reclocker control)
SW3-1 On = Reclocker bypass Channel 1 enabled Off = Reclocker bypass Channel 1 disabled
SW3-2 On = Reclocker bypass Channel 2 enabled Off = Reclocker bypass Channel 2 disabled
SW3-3 On = Reclocker bypass Channel 3 enabled Off = Reclocker bypass Channel 3 disabled
SW3-4 On = Reclocker bypass Channel 4 enabled Off = Reclocker bypass Channel 4 disabled
FRONT OF CARD
SW1
-1
-2
-3
-4
SW2
-1
-2
-3
-4
SW3
-1
-2
-3
-4
As shown, switch levers are set to
OFF with lever up. Press lever
down to set to ON position.
