2. General Foundation Requirements for GSI Bins
14
PNEG-318 Concrete Foundation Recommendations for GSI Grain Bins
FCDL Anchor Bolt Detail

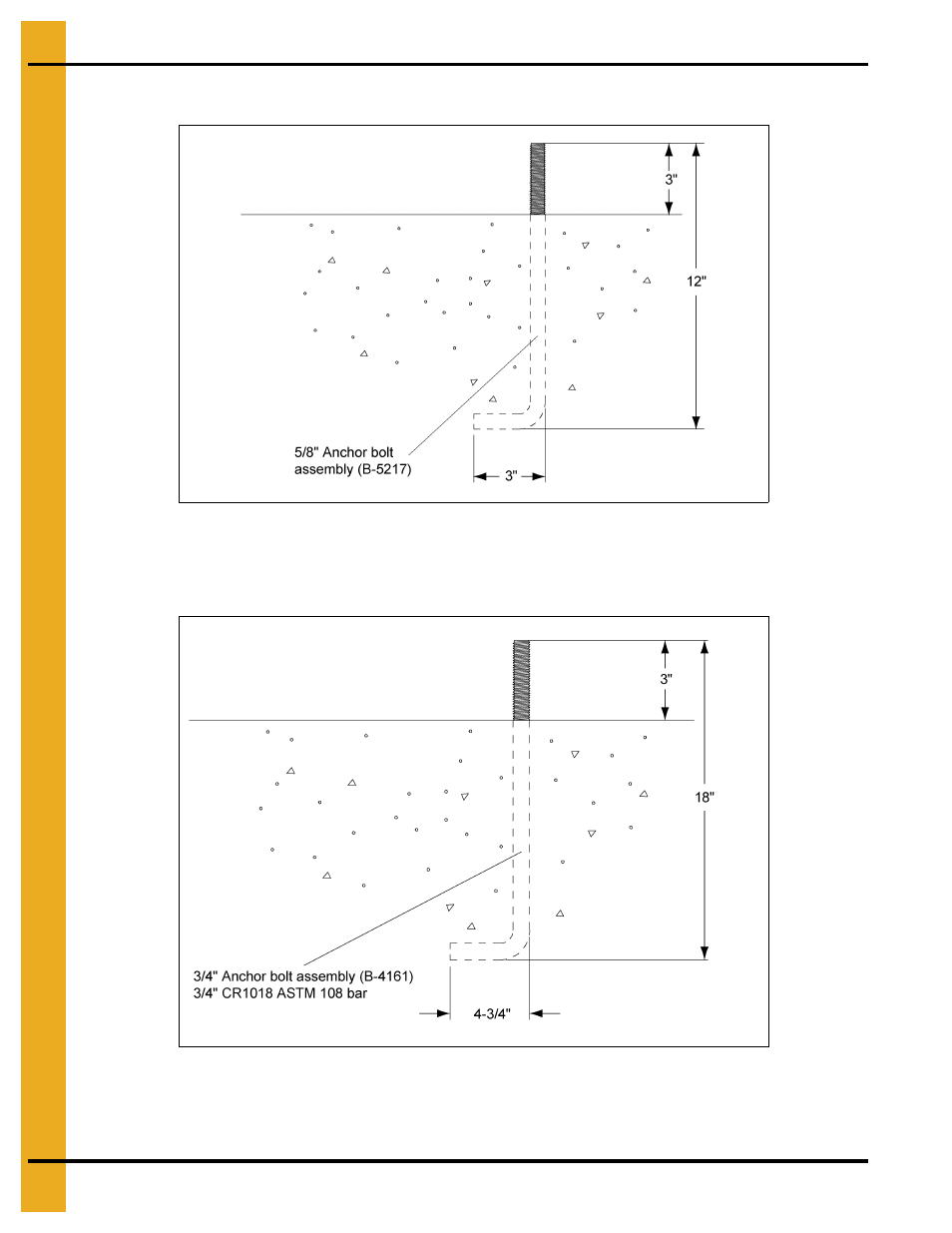

Figure 2G FCDL Anchor Bolt Detail
Commercial Tank Anchor Bolt Detail
Figure 2H Commercial Tank Anchor Bolt Detail
NOTE: This is a general case anchor bolt detail. Some situations, conditions and storage tanks may have
different anchor bolt or anchoring requirements.
