2. General Foundation Requirements for GSI Bins
PNEG-318 Concrete Foundation Recommendations for GSI Grain Bins 13
Anchor Bolt Placement
Having poured and leveled the concrete, use the center stake and straight 2 x 4 again to find the bolt circle
radius for the outside hold-down brackets. Select a starting point and stretch a pre-measured chord along
the imaginary circle formed by the bolt circle radius. Take into consideration the placement of these bolts
so as not to interfere with the positions of bin doors and transitions. (Refer to charts on
Pages 18-20 for
necessary radii and chord lengths.) Take the time and work carefully: ACCURACY IS IMPORTANT.
FOR STIFFENER ANCHOR BOLT LOCATIONS ON COMMERCIAL TANKS, REFER TO COMMERCIAL
TANK SECTION IN THIS MANUAL OR CALL THE GSI ENGINEERING DEPARTMENT.
NOTE: Top edge of slab where the bin wall sets must be held to within 1/8" of level.

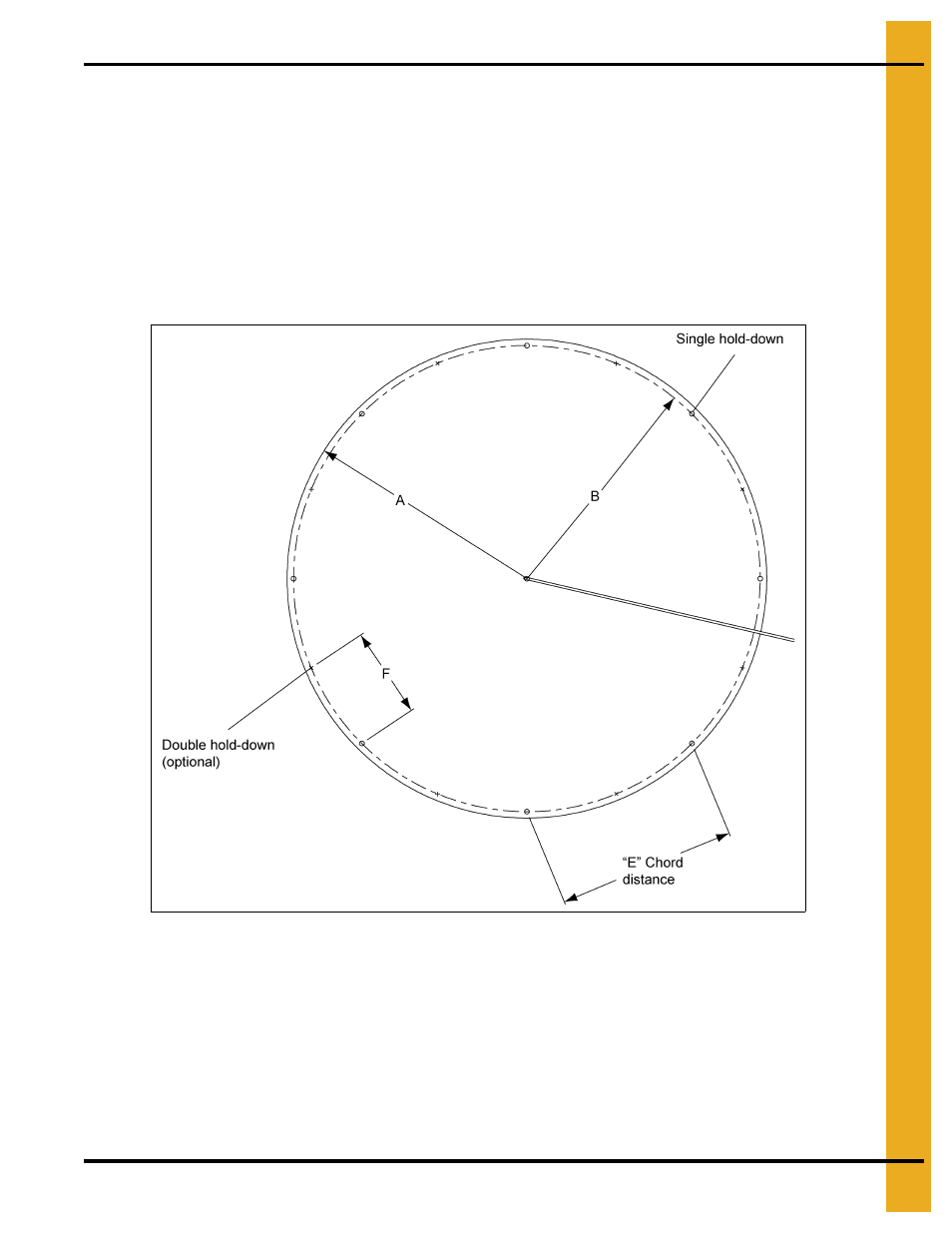

Figure 2F Anchor Bolt Placement
